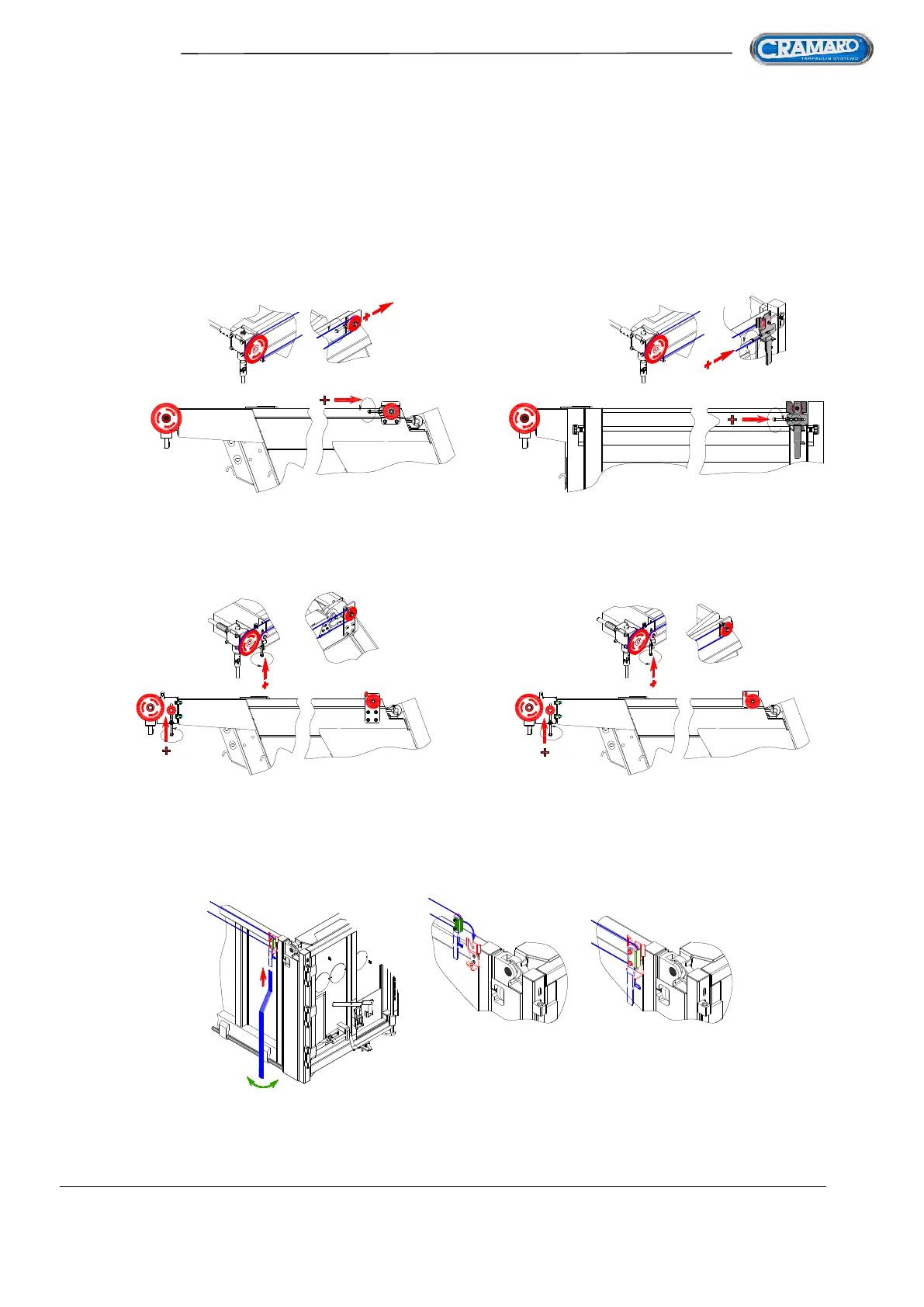

- ROPE TENSIONING SYSTEM -
As previously mentioned, the tarpaulin pulling rope tensioning system can essentially be two types.
REAR via two sliding pulleys assembled on metal plates securely anchored to the rear sides of the container that
return the ropes while, at the same time, giving them the tension necessary to allow the bows to slide properly on the
upper edges of the container.
In this case, the pulling unit has a reduced depth clearance and is used when the available space is minimal
(STANDARD PULLING UNIT)
FRONT the ropes are tensioned by the movement of two pulleys that are integrated in the pulling system supports
(PRE-ASSEMBLED PULLING UNIT). This system is used whenever there is enough space available on the front
part of the container to house it.
COMBINED with QUICK RELEASE the ropes are tensioned by the movement of the two pulleys that are integrated
in the pulling system supports. At the rear, the rope return unit can be REMOVED from the ground using a specific
lever, to free the side door from the ropes when loading and unloading with the side door open
