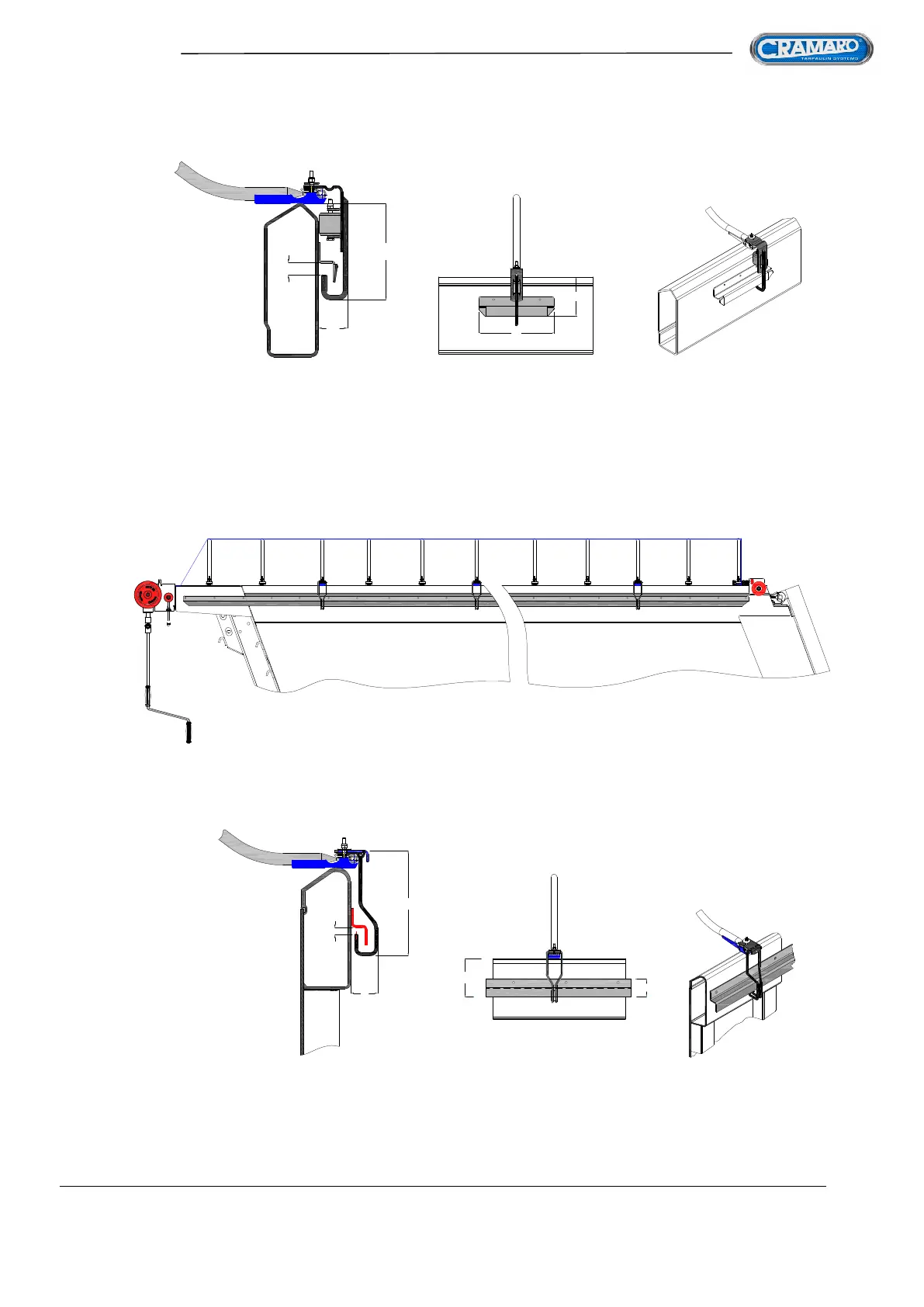

TYPICAL HOOK CONFIGURATION AND SIZES
- OSCILLATING HOOKS -
Made for containers with the upper profiles of the
sideboards that tend to widen considerably, or ''warp,'' during loading or for use in the event of wind, they are usually
provided in the appropriate quantity based on the length of the container.
The hooking elements (a galvanised steel zeat profile) to secure to the container must be riveted, being especially
sure that they are horizontal and have the IDENTICAL securing height on both sides of the container to
prevent them from hindering the bows in sliding during the tarpaulin opening and closing operations.
HOOK DISTRIBUTION DIAGRAM
leave approximately 10- 15 mm of space between the hook and the slot to prevent the ATTENTION:
hooks from getting stuck with opening and/or closing the tarpaulin
TYPICAL HOOK CONFIGURATION AND SIZES
