CABRIOLE’
CRAMARO TS S.r.l. – 37044 COLOGNA V.TA (VR) - VIA QUARI DESTRA, 71/G TEL. +39 0442/411688 / FAX + 39 0442/411690
E-MAIL info@cramaro.com WEBSITE: http://www.cramaro.com - Manual n° MCA016-EN-ED00 – date 15/01/15
page 61
Make sure that the REAR ANCHORING ROPES of the tarpaulin TAIL anchor securely to the hooks located on
the rear door of the container and that they keep the sheet extended tightly over the door.
FOR HYDRAULIC VERSIONS

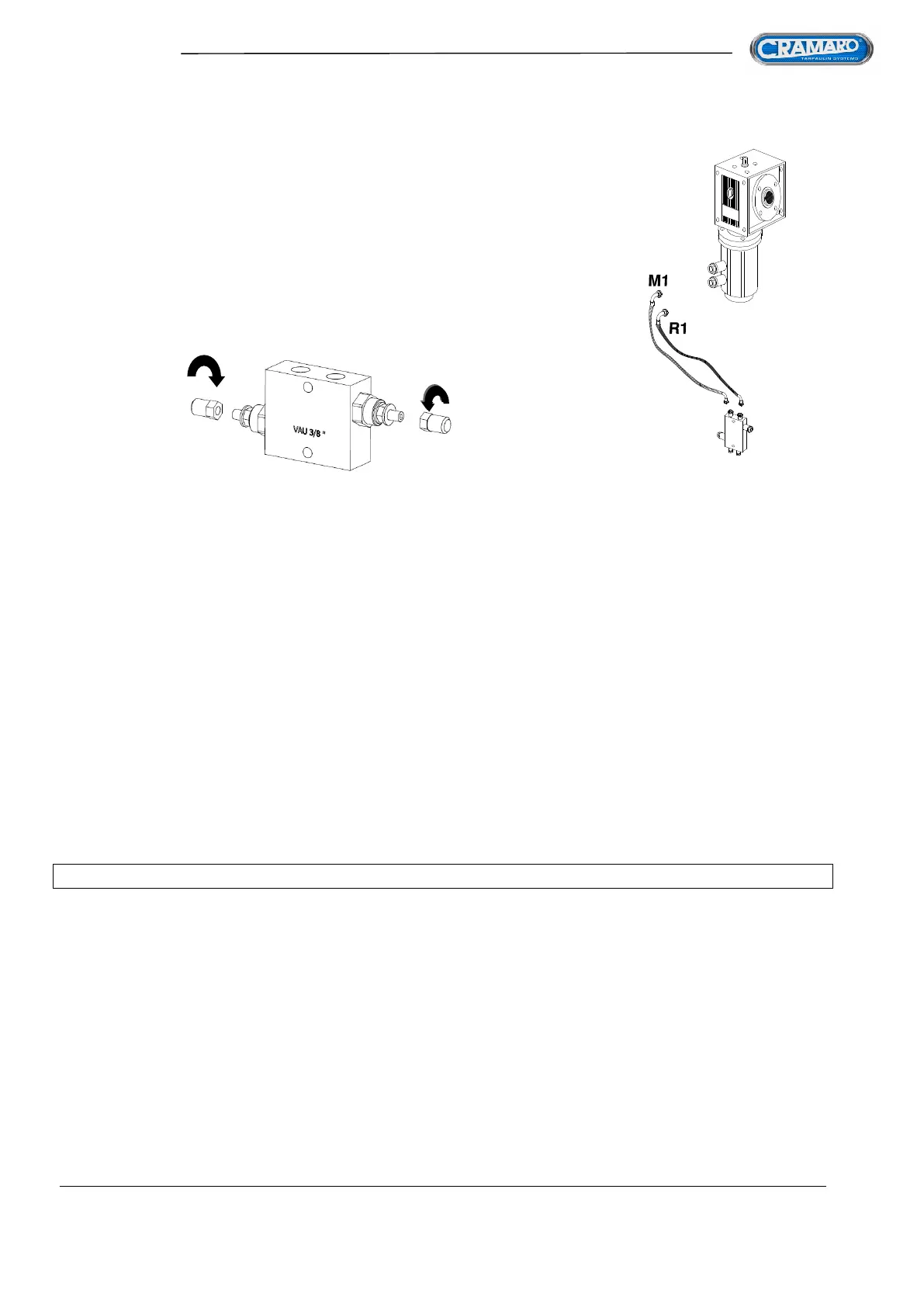

VALVE CALIBRATION - ADJUSTMENT -
Before sending oil to the motor, make sure that the pressure valve is
adjusted to the minimum:
to do so, turn the screw with the specific spanner
anti-clockwise (see figure).
Perform this step on both directions of flow.
With the tarpaulin fully retracted on the front part of the container,
increase the supply circuit pressure via the screw on the valve, turning it clockwise until the motor has enough
power to EXTEND the tarpaulin fully and until the valve is discharged.
Now also position the screw of the return circuit in the same position as the delivery one;
Once the valve is adjusted, check that everything is functioning correctly by opening and closing the cover at least a
couple of times
- HOW TO USE THE TARPAULIN -
The CABRIOLE’ tarpaulin is very user-friendly.
Attention: all the operations shown below must be carried out by a single operator, working strictly from the
ground and respecting the safety standards in place for all self-propelled structures.
Make sure there is nothing impeding the tarpaulin movement (loaded material protruding over the edges of the
container, etc.)
MAKE SURE THERE IS NO-ONE WORKING NEAR THE TARPAULIN
Starting with the tarpaulin fully retracted (OPEN), the operations to carry out for proper use are:
