FIG 78
117
157
197
169
209
249
48
10 mm
FIG 79
10 mm
- CROCHET HOOKS -
Being simple and reliable, they are the most commonly used; they are normally assembled
3 pairs per side - 2 short, 2 medium and 2 long, but the actual quantity of the hooks supplied in the kits
is determined by the length of the container and by the place in which the tarpaulin is intended to be used
ATTENTION: leave approximately 10mm of space between the hook and the slot to prevent the hooks from
getting stuck when opening and/or closing the tarpaulin

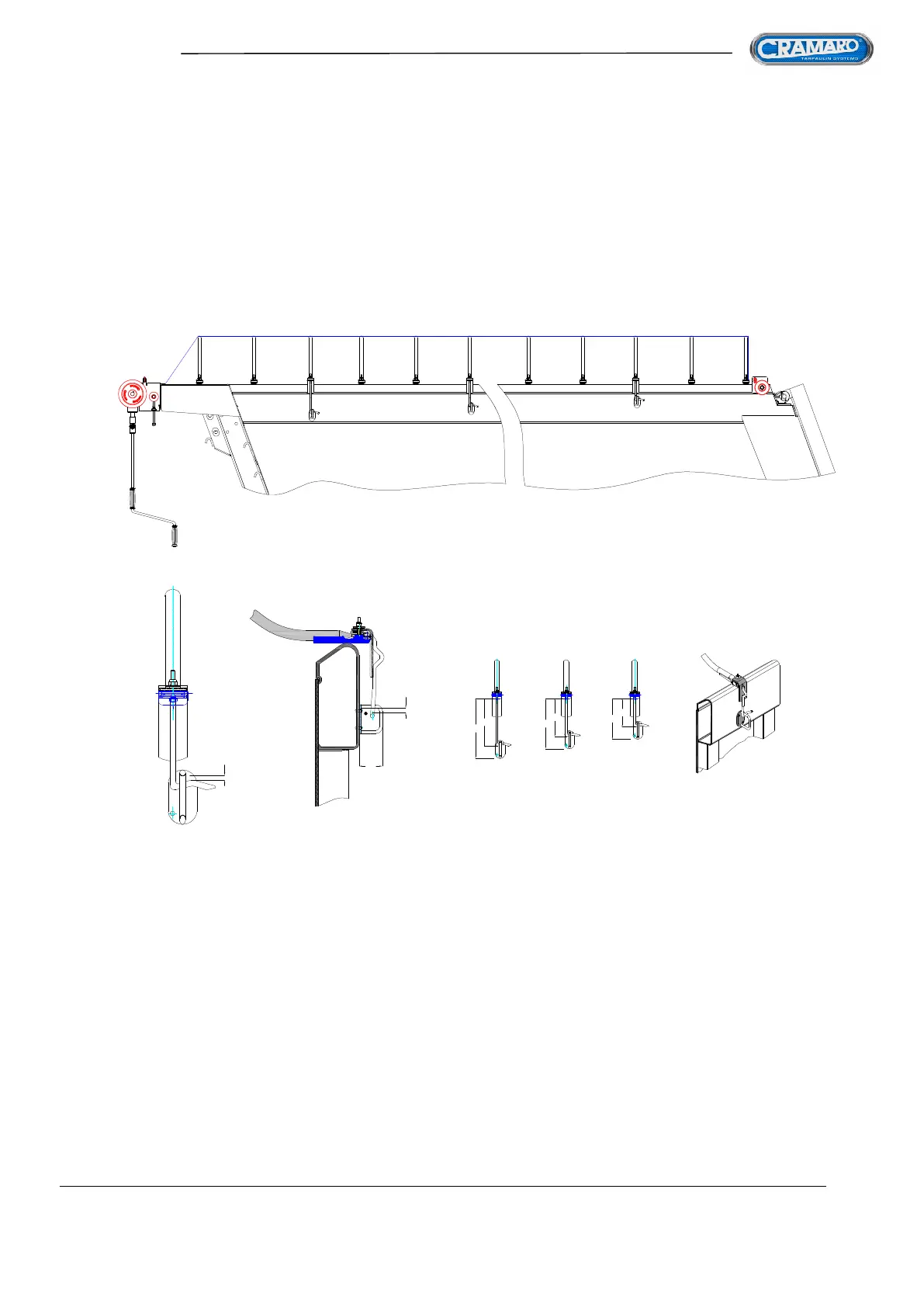

HOOK DISTRIBUTION DIAGRAM
TYPICAL HOOK CONFIGURATION AND SIZES
- BAYONET HOOKS -
Sturdier than the previous kind, these hooks are mainly used in pairs of 3 along the sides of the container - 2 long, 2
medium and 2 short, but the actual quantity of hooks supplied in the kit is determined by the length of the
container and the location in which the tarpaulin is intended to be used
ATTENTION: leave approximately 15mm of space between the hook and the slot to prevent the hooks from
getting stuck when opening and/or closing the tarpaulin
