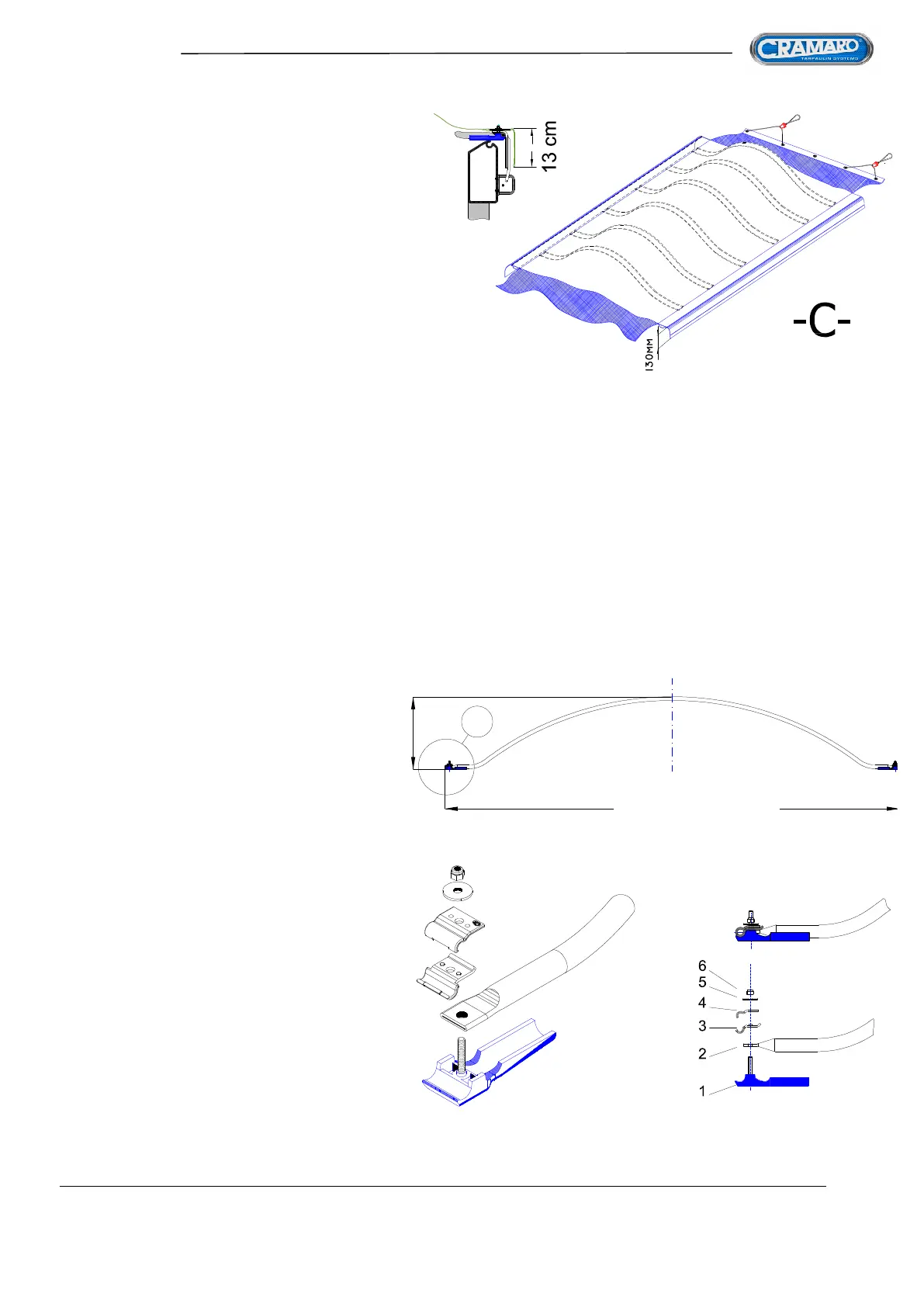

SHEET TYPE - C - : is a middle road between the
HERMETIC sheet and the BASIC sheet, since it extends
down along the sides of the container by about 13cm.
It does not guarantee the water tightness of type B but in
compensation, it is extremely versatile and suitable,
in fact, for transporting a great variety of materials.
Also this type of sheet can be paired with
all the tarpaulin side quick fit systems
and can also be made in the
POLYURETHANE version for heavy use in
transporting hot materials
- SHEET SUPPORT BOWS -
The bows supporting and anchoring the tarpaulin sheet to the container are made from curved pre-galvanised metal
pipes using specific automatic machines that guarantee a high dimensional standard and are completely hot-dip
galvanised.
On request, you can order bows in AISI 304 STAINLESS steel along with all the nuts and bolts needed to install
them and put them in service on the vehicle.
The STANDARD dimensions vary in width from 2000mm to 2650mm with 10mm increments
The STANDARD dimensions vary in height (measured at bow centre) from 200mm to 500 mm.
In very special cases, we can also make bows with
GREATER or SMALLER widths and heights , but only after careful analysis by the technical department.
At the ends of the bows, there are both the
lower runners that help the bow to slide on
the sides of the container and the sliding
pins and rope guide (the pins can be taken
out for quick bow replacement)
1 - Sliding runner
2 - Bow end in steel
3 - Lower portion rope sliding pin
4 - Upper portion rope sliding pin
5 - Sheet holding increased washer
6 - Element fastening self-locking nut
