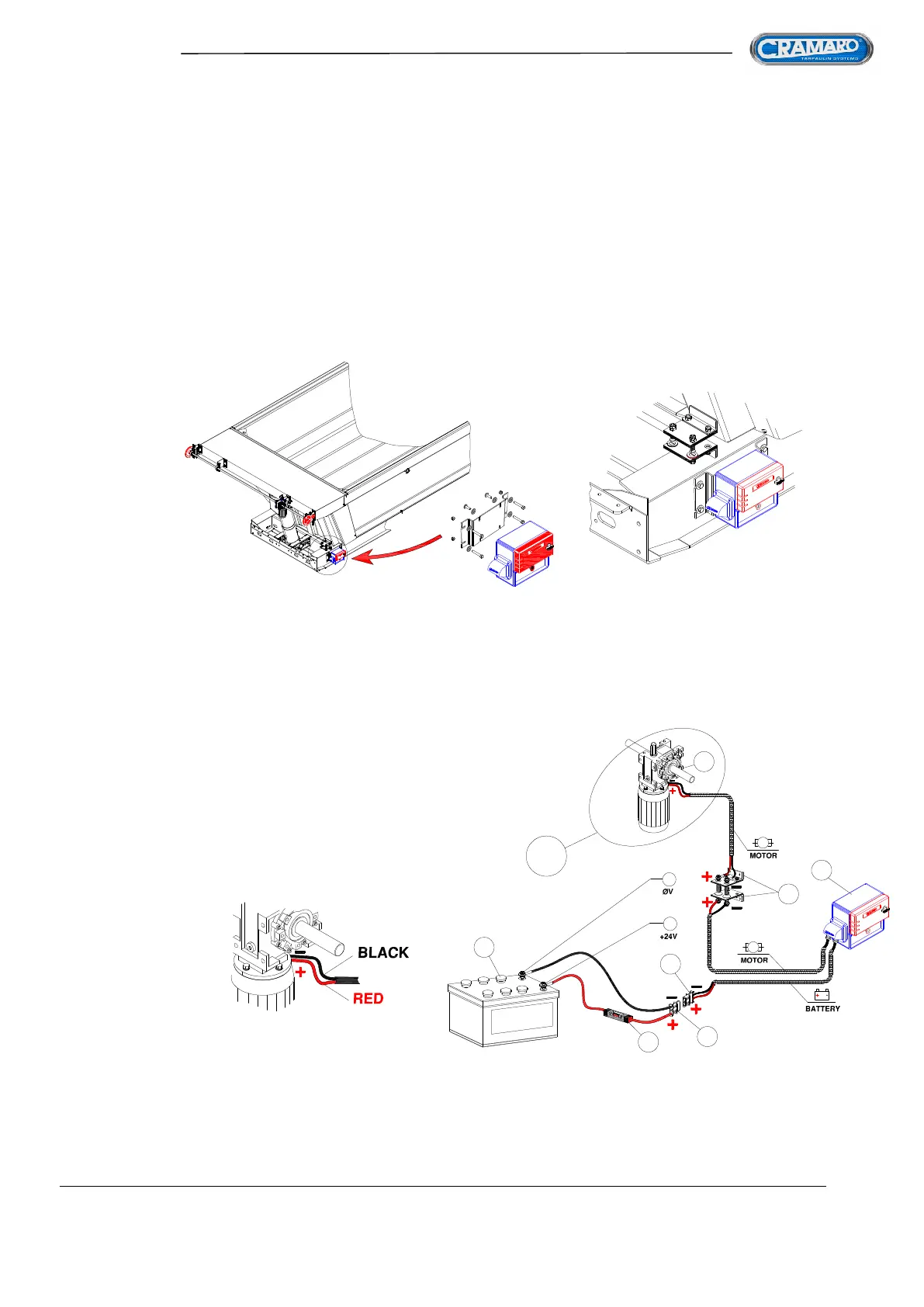

FIG 53
2
2
1
3
4
5
+
-
FIG 54
PART. -A-
FUSE
A
BATT
+
-
6
- ASSEMBLING THE ELECTRICAL SYSTEM (Electric version) -
In the electric or hydraulic versions, the MOTOR is already assembled along with the other front pulling unit
elements. To complete the assembly, simply electrically connect the motor to the control unit.
The control unit, contacts and everything that is needed for the connections is in the assembly kit; this is the most
COMPLICATED part of the assembly itself.
Therefore, pay special ATTENTION to the assembly sequence of the different parts to reach a good final
result.
The control unit can be assembled either externally on one side of the vehicle via the specific supplied plate
(tractor or semi-trailer) or it can be assembled inside the cab of the vehicle (tractor for semi-trailers). For this option,
you must make the request when ordering in order to arrange all the necessary items.
There are TWO different types of control units available: a STANDARD one (the most common) and a special control
unit, defined FULL OPTIONAL, that, in addition to normal tarpaulin opening and closing operations, also allows you
to control other mechanisms that can be supplied along with the conventional tarpaulin system.
The ELECTRICAL system to connect and control the CABRIOLE’ tarpaulin is quite simple and can be summarised in
a simple diagram
BASIC ELECTRICAL SYSTEM
1) 24V BATTERY of the vehicle (semi-trailer tractor)
2) QUICK FIT PINS for BATTERY - TARPAULIN connection
3) CONTROL UNIT
4) SAFETY CONTACTS
(ANTI-accidental opening when the container is lifted)
5) ELECTRIC MOTOR of the tarpaulin
6) 80A FUSE
