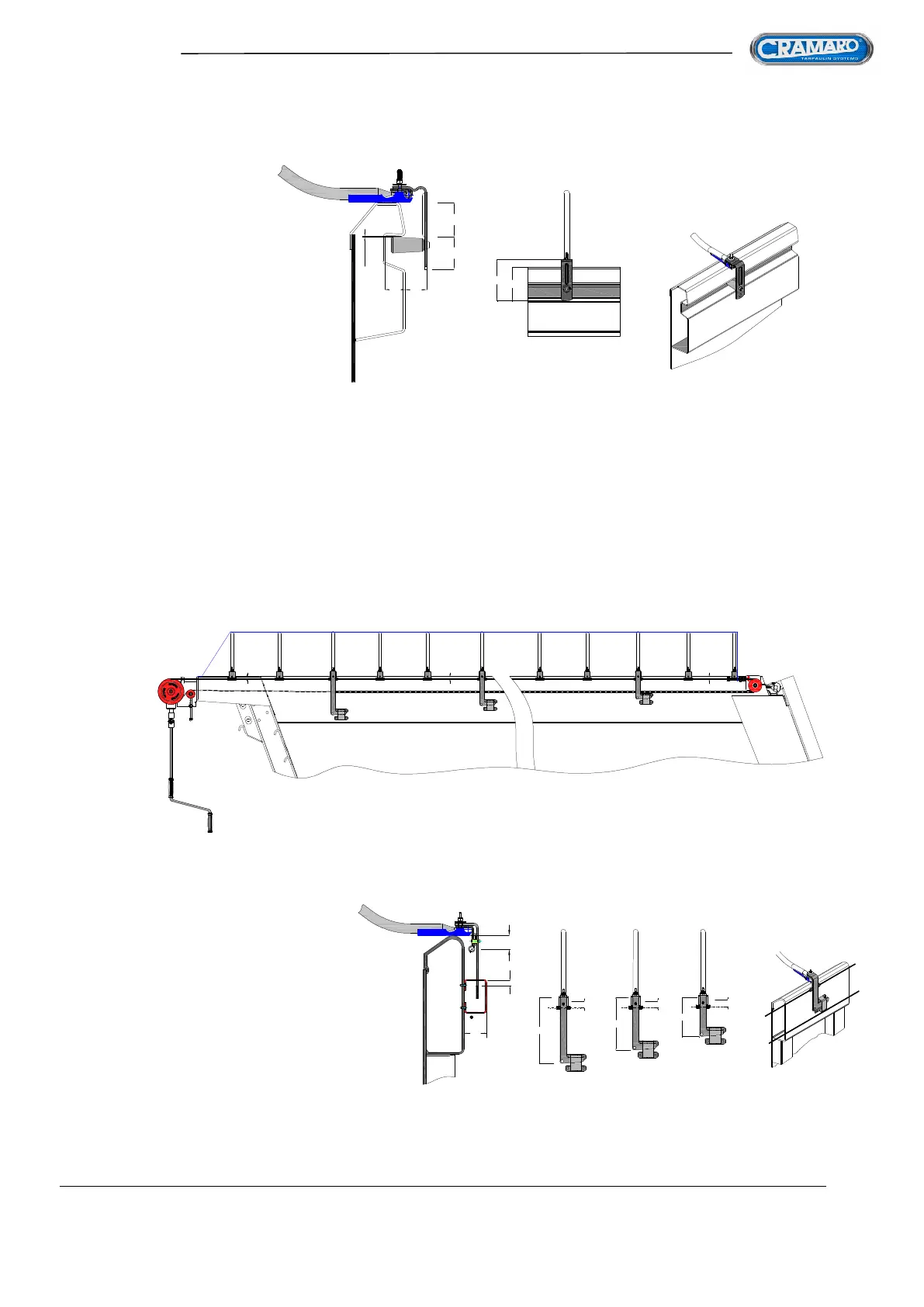

TYPICAL HOOK AND HOUSING GROOVE CONFIGURATION AND SIZES

- LOWERED ROPES FOR CONTAINERS WITH

INTERNAL AISLE -

For vehicles that transport mainly iron scraps, it is of utmost importance to prevent the tarpaulin pulling ropes

from getting tangled in the scraps when loading and unloading the vehicle.

A system was created for these vehicles that allows the ropes themselves to slide under the upper profiles of the

container, and two systems were united for this type of application:

1) A ROPE SLIDING PIN at the ends of the bows positioned lower compared to the standard version

2) A BAYONET HOOK THAT ALLOWS THE TARPAULIN TO BE ANCHORED SECURELY.

SCHEMATIC DISTRIBUTION OF THE BOWS WITH LOWERED PIN AND OF THE HOOKS

TYPICAL LOWERED PIN AND IN-GROOVE HOOK CONFIGURATION AND SIZES

With this system, the ropes slide

under

the upper profile of the sideboards

by about

30mm and the risk of damaging them

during loading and/or unloading

operations

is largely prevented

15 mm

FIG 89

294

234

174
