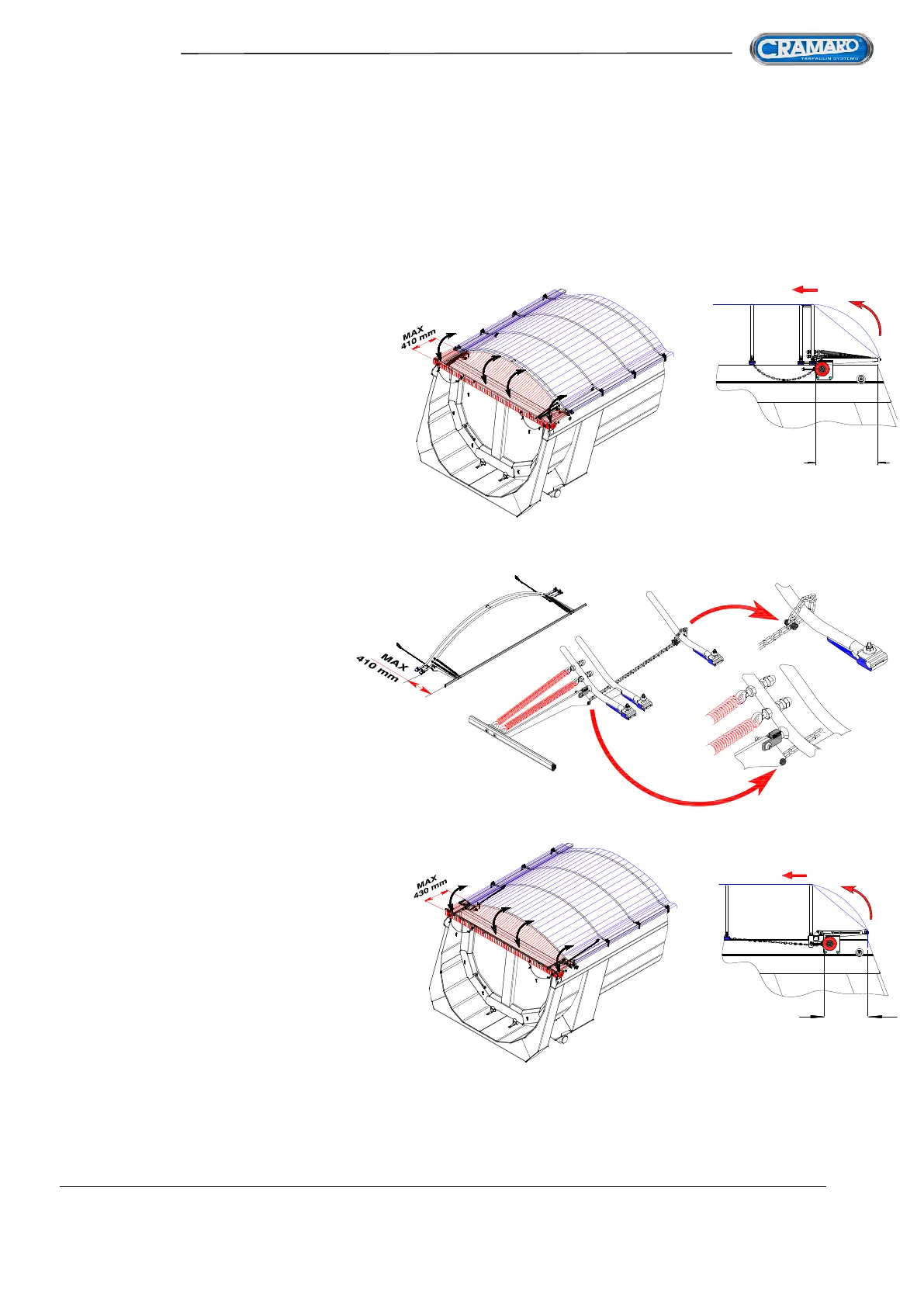

REAR CLOSURE WITH "AUTOMATIC FLAP"
Another CABRIOLE’ tarpaulin rear closure system is the AUTOMATIC FLAP.
The FLAP comes in two different models, but assembly is the same for both.
- DOUBLE BOW FLAP -
Made with two bows that are spaced and welded to one
another,
it guarantees good sliding stability
and can cover an empty space between the last
bow and the door of about 410 mm
In OPENING, the action of the two TRACTION
SPRINGS
located on the sides of the last bow, allows
the section of the sheet covering the door to be lifted
immediately.
In CLOSURE, instead, the action of two small CHAINS,
anchored on one side to the side arms of the flap
itself and, on the other, to the next to last tarpaulin bow, which
allow the arms to lower just as quickly
and, therefore, the part of the sheet covering the door to close.
This type of flap does not require
any difficult assembly operations
or fine-tuning at all; simply secure
the free ends of the two chains to the next
to last tarpaulin bow when the tarpaulin is
fully EXTENDED and,
if necessary, ADJUST the lowering
by changing the length of the chain
anchoring the arms to the
next to last tarpaulin bow
- SINGLE BOW FLAP -
Made with a single bow, secured, however, to two shaped
plates at the base, it also guarantees good
sliding stability and can cover an empty space
between the last bow and the end of the container
of about 430mm.
