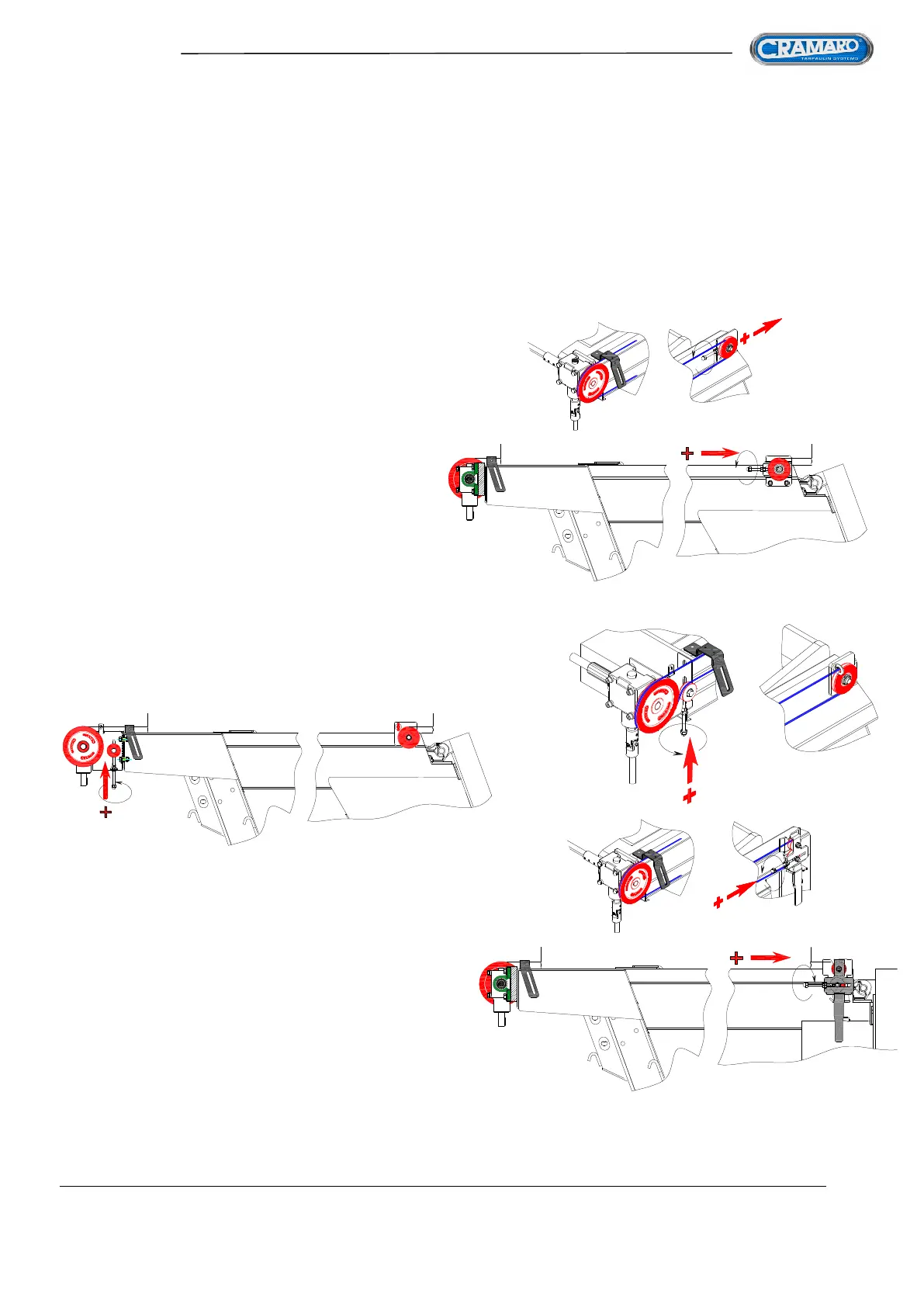

- REAR RETURN OR TENSIONING UNIT -
As mentioned in the section describing the CABRIOLE’ tarpaulin system, in order to do their job, the bow pulling
ropes must be tensioned so as to support and guide the tarpaulin as it moves along the upper edges of the container.
The rope tensioning system can be POSTERIOR, in which case, specific plates with a Ø 100 mm pulley are
supplied. The pulley can slide toward the rear side of the container, tensioning the ropes applied to it.
These plates must be secured to the rear side of the container, either by welding or bolting them.
In all the available versions, what must absolutely be respected is that, like for the front, the upper part of the pulleys
requires positioning higher by about 10mm than the side edges of the container (where the tarpaulin bows slide)
STANDARD REAR TENSIONER
Applied in nearly all cases
By rotating the screw located at
the centre of the plate, the ropes are more than
adequately
tensioned without interfering
with the rear opening of the
unloading door
FRONT TENSIONER ON
PRE-ASSEMBLED UNIT
REAR TENSIONER WITH INTEGRATED
ROPE RELEASE
This version is usually applied to
all containers that require being able to
remove the rope in order to open the sideboards laterally
when loading and/or
unloading material from the container.
