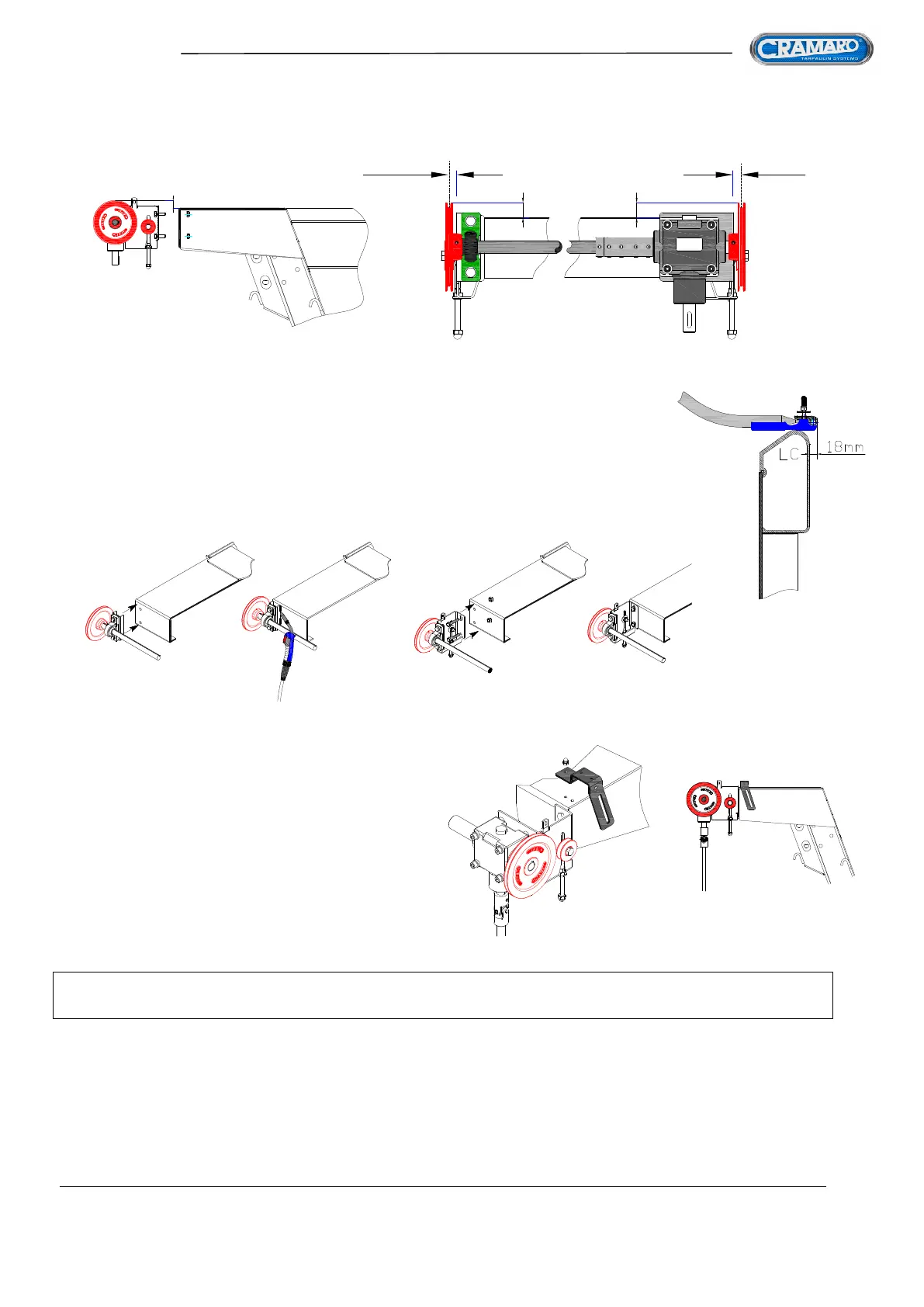

3. Then, secure the entire unit to the cab-shield profile, welding it
or securing it with through screws, making sure that the
upper edge of the pulling pulleys is the same on both
sides of the container.
Respecting the set measurements of the bows, once the tarpaulin is assembled,
they must look like this.
4. Bolt down the two shaped
plates that function as bow-stops near
the front pulling unit
N.B. In the versions with lower cable inside the profile, the front pulleys must be positioned slightly more internally
than the container sides (check the distance between the supplied bow pin centres).
