M
CC
B+B-
AUX
AP
M
CC

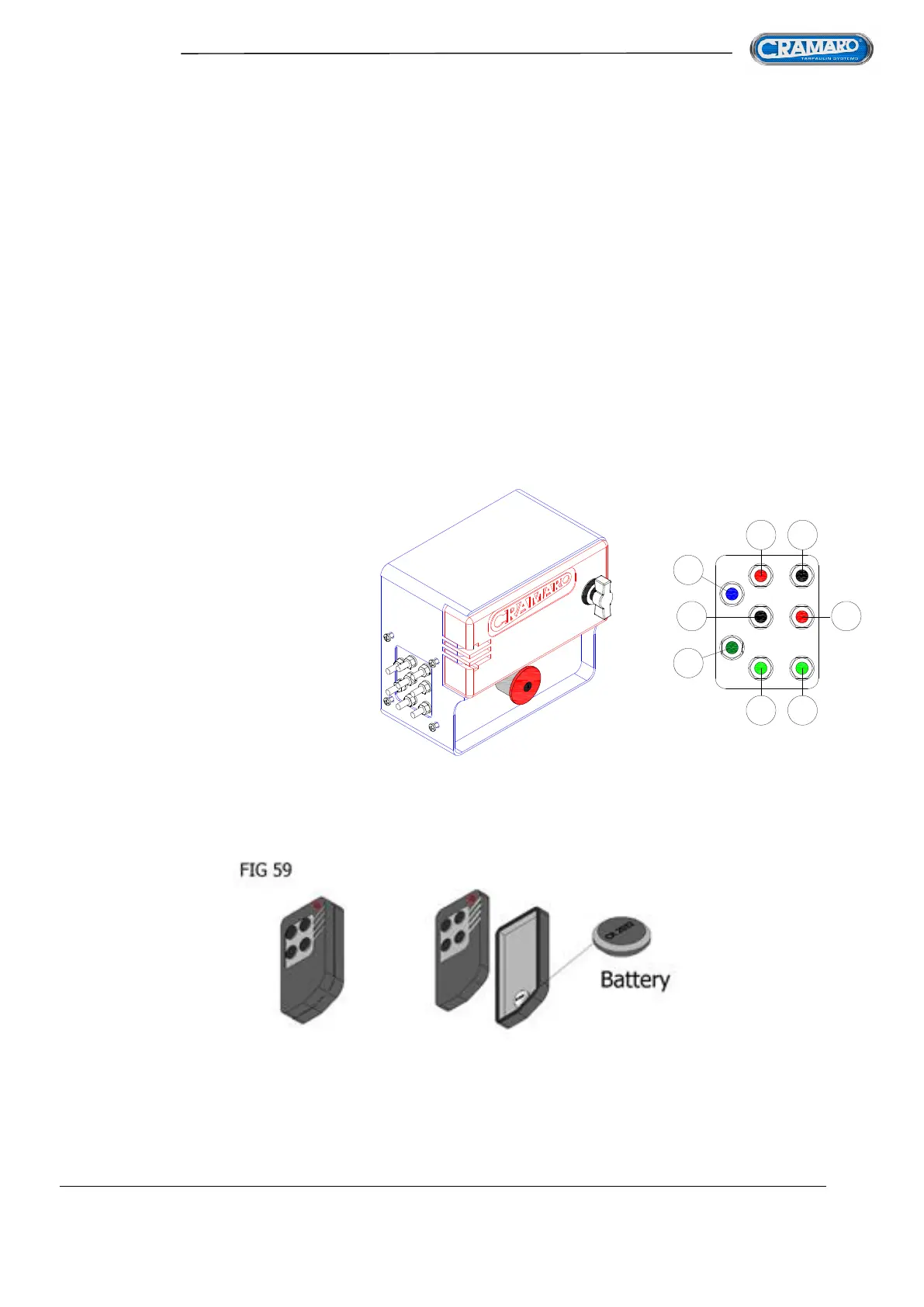

FIG 58
NOTE: The learning procedures of the control unit are the same both for the 2-button remote
control
and for the 4-button remote control.
- FULL OPTIONAL CONTROL UNIT CODE 4WCE4C03032A -
The controller unit called "FULL OPTIONAL" integrates the STD with the following additional commands:
- PARTIAL OPENING (timed)
- CONTROL IN CABIN
- PARTIAL OPENING + CABIN CONTROL
- CONTROL FOR VIBRATOR
NOTE : The FULL OPTIONAL control unit is only available with the 24V version
CONNECTION PIN DIAGRAM
M = motor
B = battery
CC = cabin control
AP = opening control
Partial
AUX = vibrator control
With the FULL OPTIONAL control unit, you will use the specific 4-button remote control
To Next Page
