ASSEMBLING THE TARPAULIN WITH ITS COMPONENTS AND ACCESSORIES
- GENERAL NOTES -
The CRAMARO tarpaulin mod. CABRIOLE’ is easily assembled, as long as some simple rules contained in this
manual are followed:
Obviously, not all containers are the same and, as such, assembly cannot be the same.
Before assembling the tarpaulin, you must:
MAKE SURE that the tarpaulin activation rope pulling front units,
once assembled, NEVER INTERFERE
with any part of the vehicle due to oscillating parts
In the event of tarpaulin assembly on a semi-trailer, WHETHER THE CAB-SHIELD NEEDS TO BE MADE OR THE
PULLING UNIT ONLY NEEDS TO BE APPLIED TO AN EXISTING CAB-SHIELD, carefully MAKE SURE that the
most external pulleys of the pulling front unit NEVER INTERFERE with the vehicle cab when rotating the semi-
trailer with respect to the tractor.
The reference measurement taken from the centre of the LOWER pin anchoring the semi-trailer to the tractor
(SLEWING PIN) must NEVER exceed 2040mm
as shown in the example figure

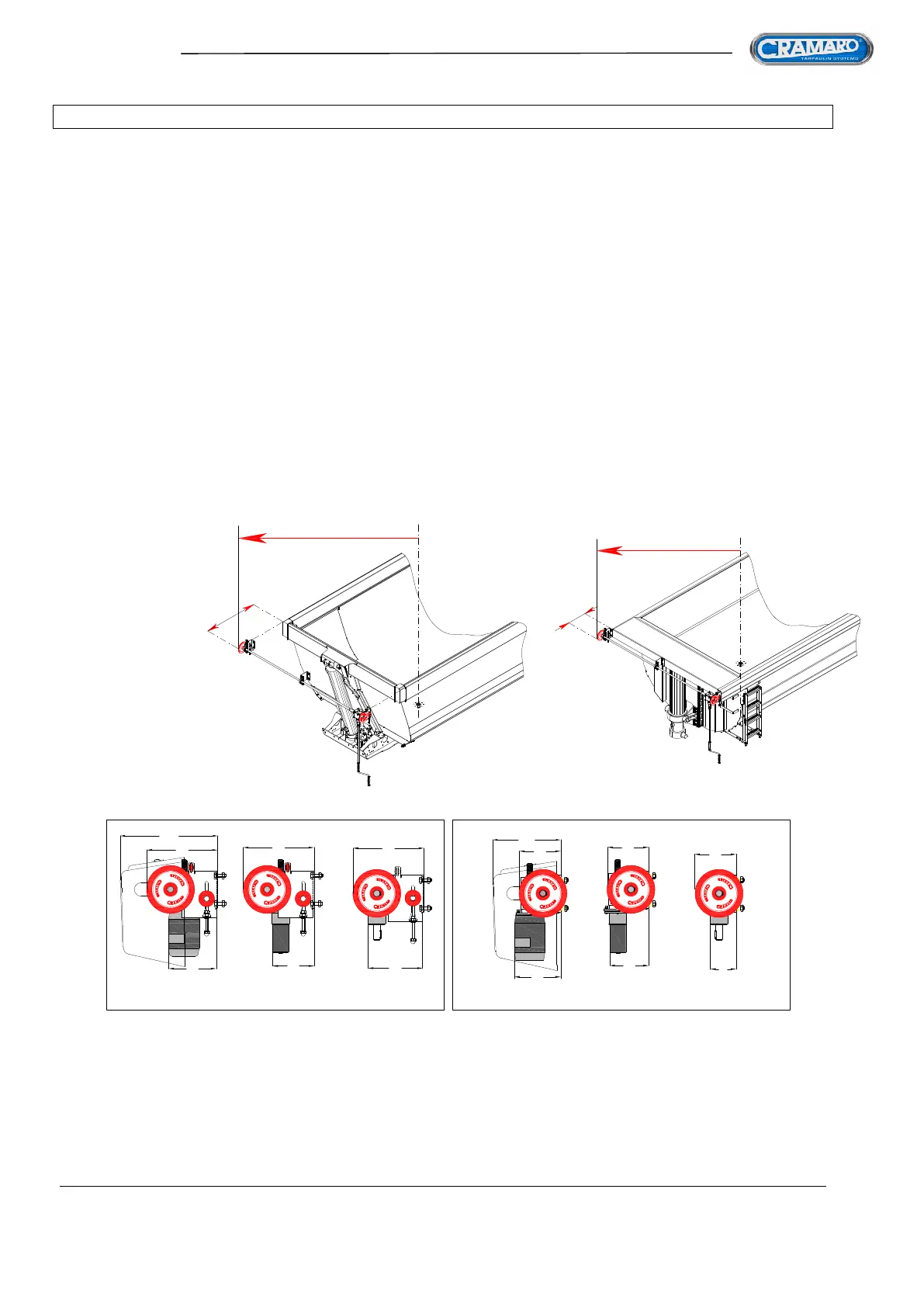

FRONT UNIT MAXIMUM CLEARANCE
PE = ELECTRIC Pre-assembled Unit SE = ELECTRIC Standard unit
PI = HYDRAULIC Pre-assembled Unit SI = HYDRAULIC Standard unit
PM = MANUAL Pre-assembled Unit SM = MANUAL Standard unit
