CABRIOLE’
CRAMARO TS S.r.l. – 37044 COLOGNA V.TA (VR) - VIA QUARI DESTRA, 71/G TEL. +39 0442/411688 / FAX + 39 0442/411690
E-MAIL info@cramaro.com WEBSITE: http://www.cramaro.com - Manual n° MCA016-EN-ED00 – date 15/01/15
page 46
FIG 74
FIG 73
and secure it to the cab-shield with the pre-drilled strip and rivets.

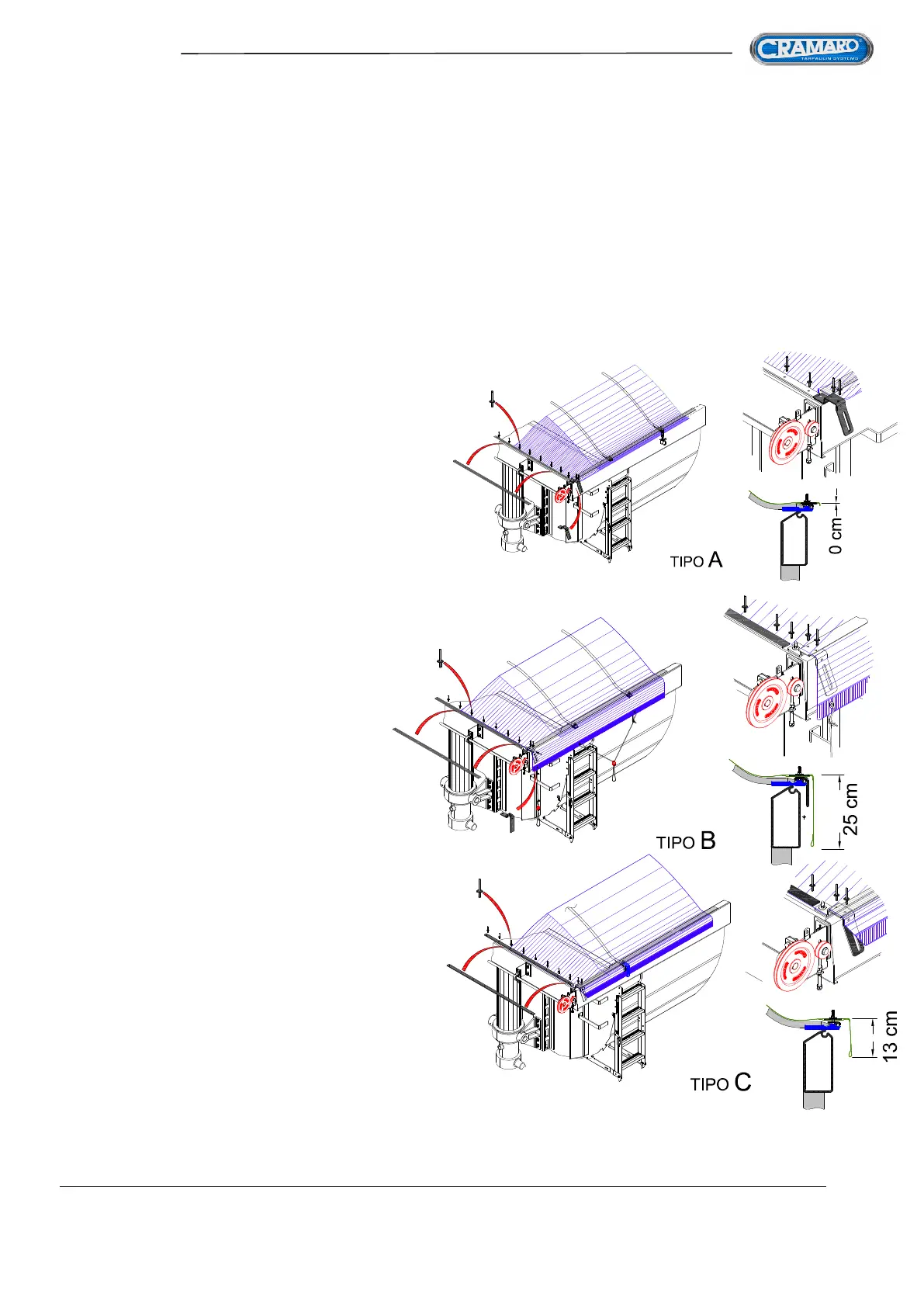

- SECURING THE FRONT OF THE SHEET -
Securing the FRONT of the sheet is slightly different depending on the TYPE of sheet chosen. The difference
is shown in the following figures, which highlight the different applications of the SHEET HOLDING FRONT
STRIP.
SHEET TYPE – A
The sheet must be secured to the inclined bracket only in its
upper section, where the plastic strip inserted into the
sheet itself is also secured during pre-assembly. (PEHD
STRIP)
SHEET TYPE -B
The sheet must be secured to the inclined
bracket only in its
upper side section, where the plastic strip
inserted into the sheet itself is also secured
during pre-assembly. (PEHD STRIP)
SHEET TYPE -C
The sheet must be secured to the inclined
bracket only in its upper side section, where the plastic strip
inserted into the sheet itself is also secured
during pre-assembly. (PEHD STRIP)
DETAIL FOR Sheet TYPE - C-
