page 56
A
Part. - A -

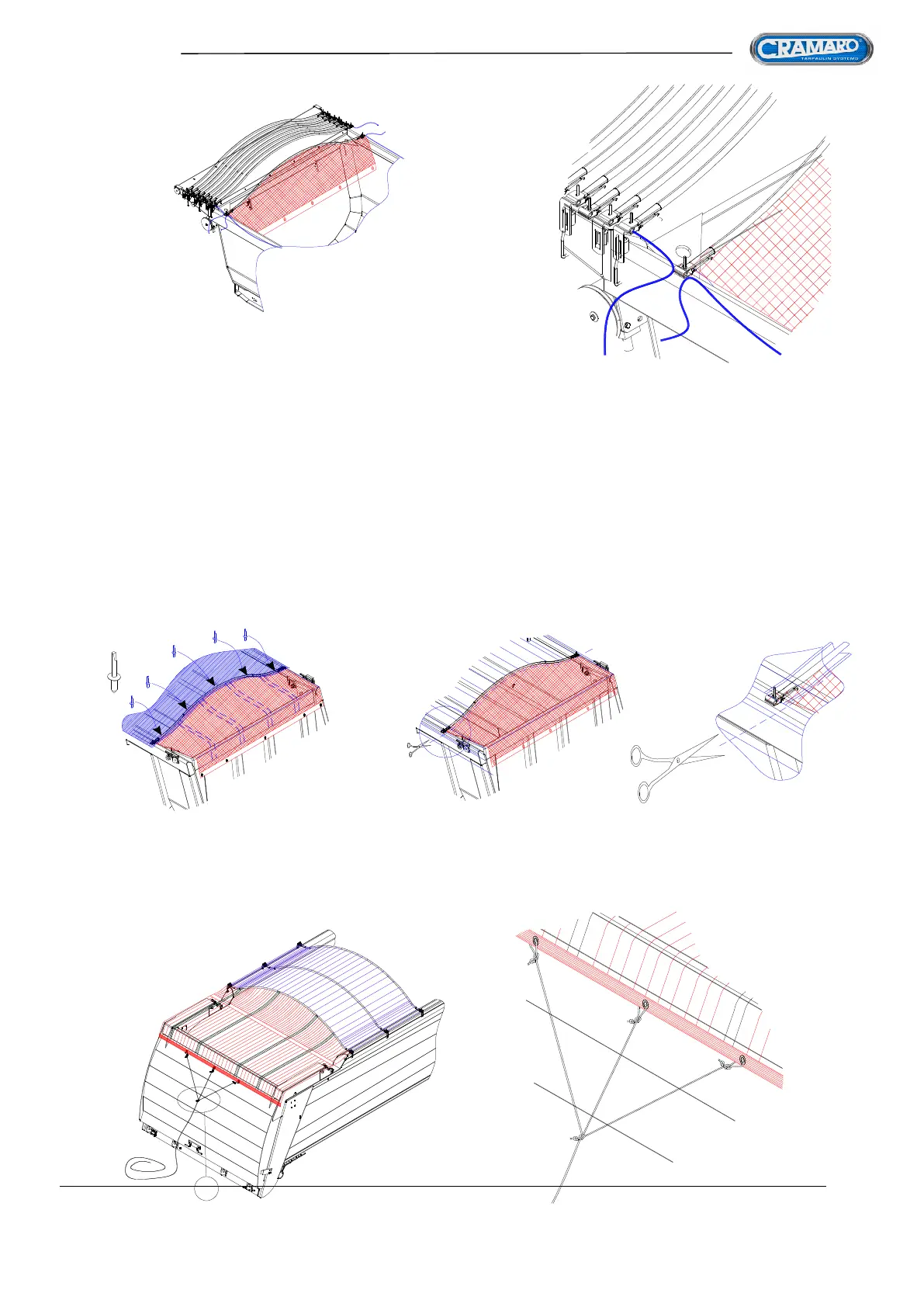

7. INSERT THE SPECIFIC LAST OVAL BOW WITH THE NEW ALREADY
PRE-ASSEMBLED TAIL WITH SPRING provided for the transformation operation
8. REINSERT THE ROPES EXTRACTED PREVIOUSLY FROM THE LAST BOW into the end pins of the new
LAST OVAL BOW and lock them once again with the specific clamps after having TENSIONED them
PROPERLY, pulling the respective ends by hand.
9. TENSION THE ROPES, using the specific TENSIONERS on the tarpaulin.
10. FULLY EXTEND the tarpaulin until the SHEET IS WELL-EXTENDED in its entire length.
11. After having secured the tarpaulin sheet with three (3) or four (4) rivets, ABOVE THE OVAL BOW (so that
water can run off the main sheet and not leak into the closed tarpaulin when the vehicle is travelling) CUT the
OLD TAIL of the SHEET
12. OVERLAP and RIVET the specific PRE-DRILLED aluminium STRIP and carefully secure the two tarpaulin
sheet layers to the new LAST OVAL BOW
13. CONNECT THREE bits of ROPE to the final sheet rings and tie them together, forming a Y
