Crane BevMax 4 - Control Board; Controller Connections

33

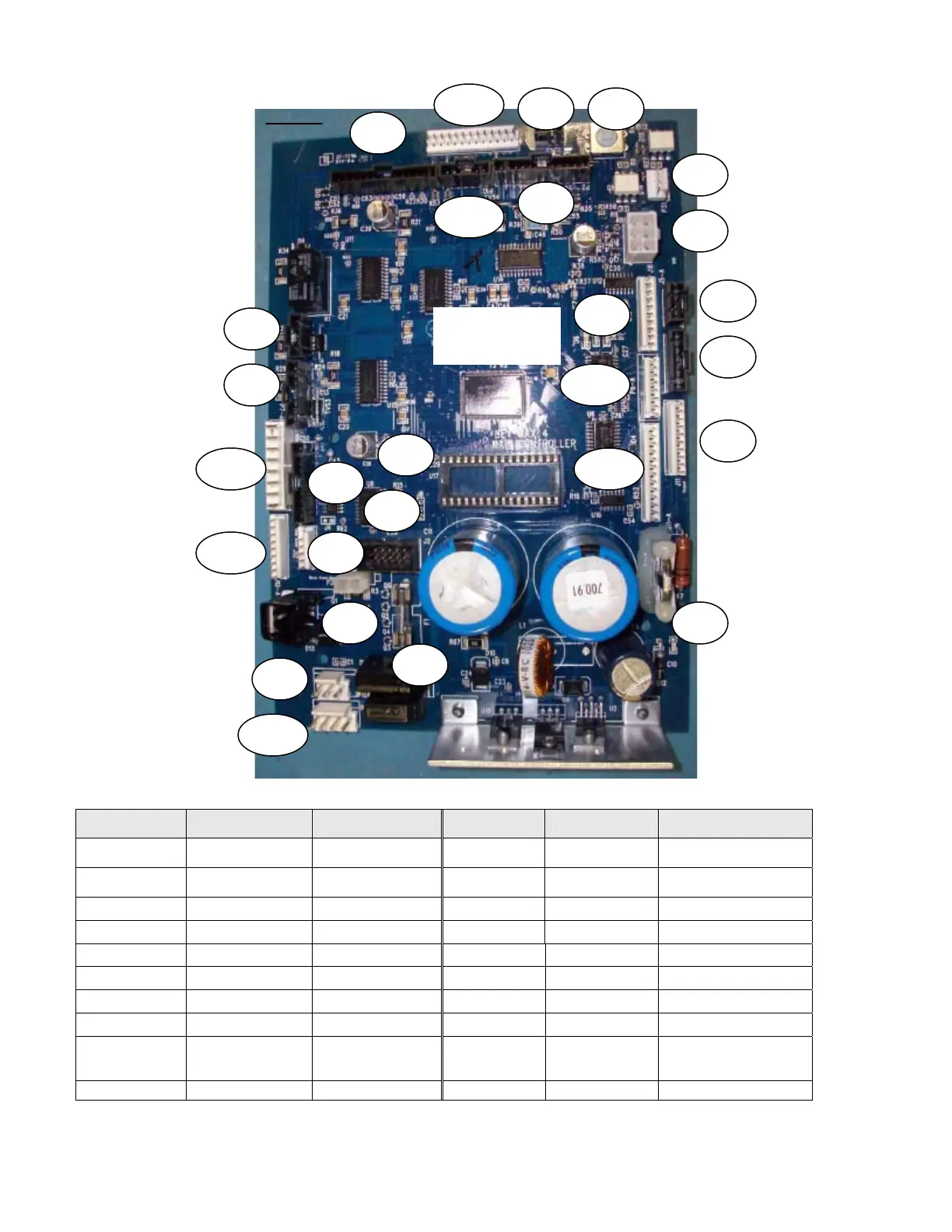

BEVMAX 4 DN5800-4/3800-4/5800-E4/3800-E4 MDB/EXE CONTROLLER CONNECTIONS
CONNECTION
NOT USED
CONNECTION
PEPSI/GENERIC
DESCRIPTION
CONNECTION
NOT USED
CONNECTION
PEPSI/GENERIC
DESCRIPTION
P1A P1
Power from AC
Distribution Box
F1 Fuse
P14
Cup Signal & Y
Encoder
J5A J5 DEX
P15 X Motor & Encoder J11A J11 Keypad
P2 Product Port J12A J12 Temp Sensor
P6A P6 Display J16 Multi Drop Bus
P7A P7 Relays U17 EPROM Socket
P8 Y & Cup Motors P3 Door Switch XY
P10A P10 Door Switch B1 Battery
J2
Supplier
Programming
Connector
S1 Service Switch
P31 Executive Interface J3 Dongle Harness
P1
J12A
J5A
P6A
J11A
J16
J3
J2
F1
U17
P3
BevMax 4
DN5800-4/5800-E4
DN3800-4/3800-E4
S1
B1
P1A
P14
P15
P8
P2
P10A
P10
J5
P6
J11
P7A
P7
J12
P31
