Crane Snack Eenter I - Gum and Mint Motors; SureVend System

Snack - Based Troubleshooting and Repair Guide
1670065 Page 46 of 54 September, 2002
A. Gum and Mint Motors
Removal
1. Disconnect the wiring harness from the
gum and mint motor assembly.
2. Remove 2 hex head screws securing
each side of the gum and mint motor
assembly to the delivery pan
(figure 21). Save the screws for later
use.
3. Remove the gum and mint motor
assembly.
Replacement
1. Lift the gum and mint motor assembly
into place.
2. Secure with 4 screws previously
removed.
3. Connect the wiring harness to the
motor assembly.
B. SureVend™ System
Removal
NOTE:
To aid in reassembly, keep
track of where all parts,
particularly harness clips
and harnesses are posi-
tioned prior to disassembly.
1. Disconnect all SureVend™ wiring har-
nesses from the circuit boards mounted
on the delivery pan (figure 22).
2. Remove 1 locknut, and remove the
receiver cover (figure 23). Save for
later use.

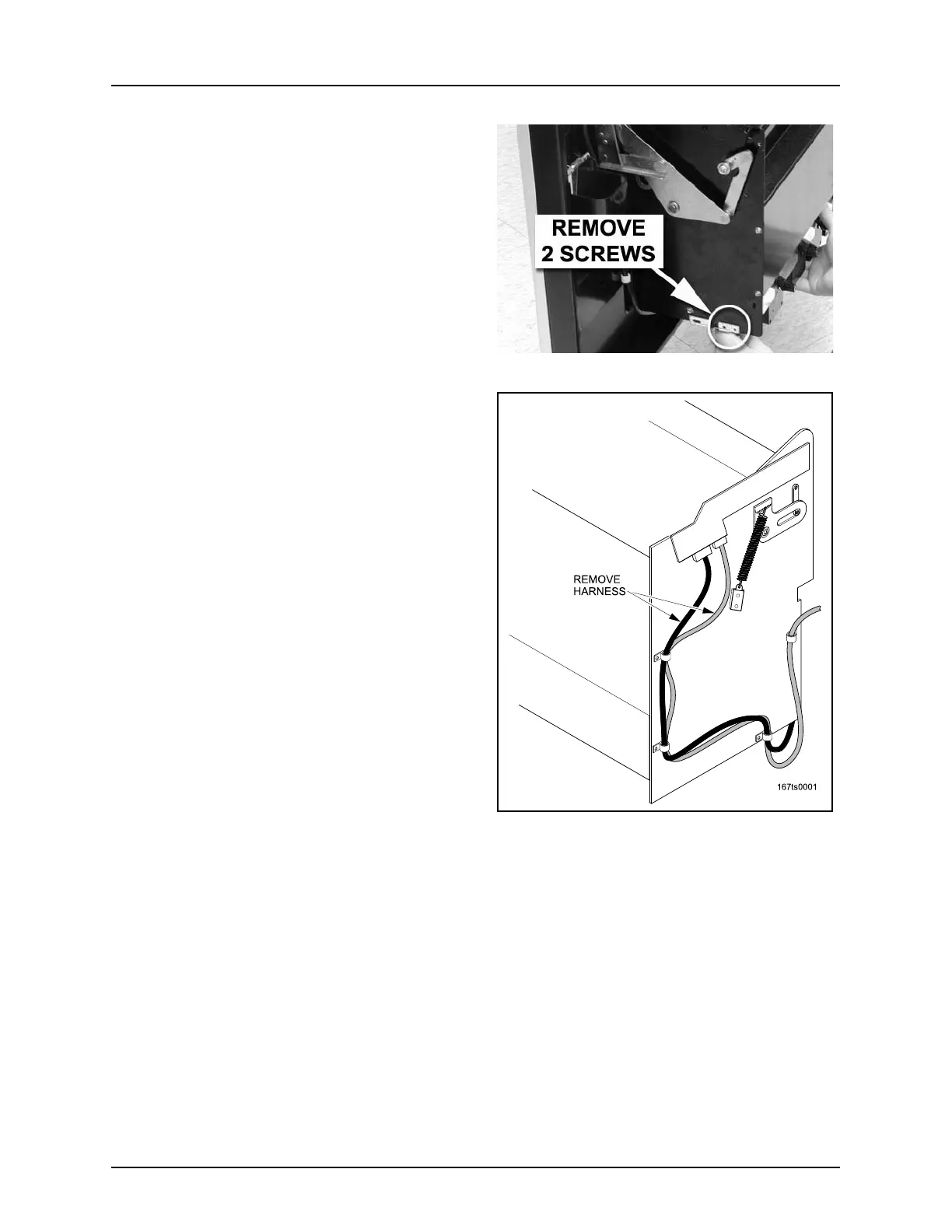

Figure 21
Figure 22
