Crane Snack Eenter I User Manual

Snack - Based Troubleshooting and Repair Guide
1670065 Page 50 of 54 September, 2002

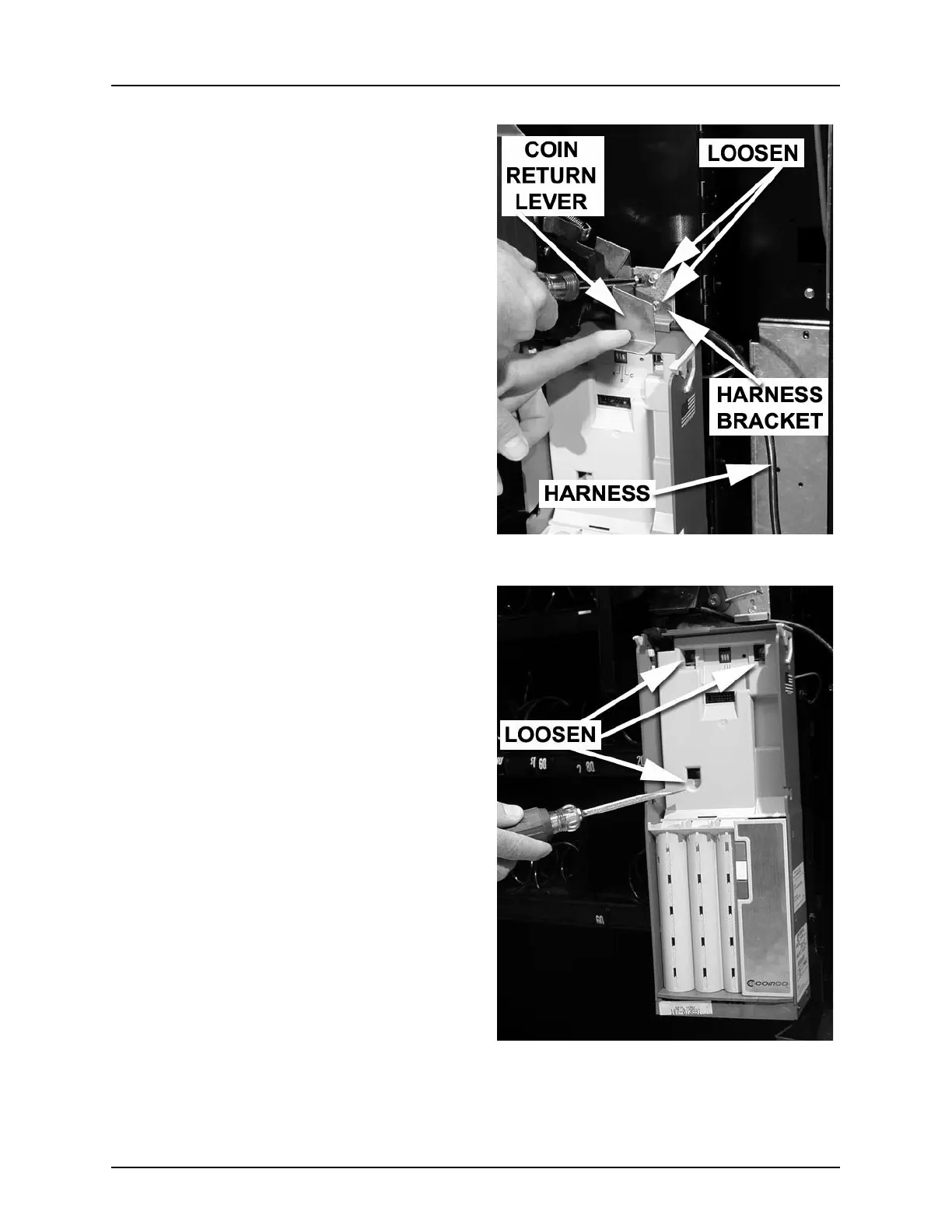

4. Loosen 2 hex-head slotted screws on
mechanism. You will need to manipu-
late the coin return lever to gain access
to the upper screw (figure 27).
5. Loosen 3 hex-head slotted screws as
shown (figure 28).
6. Lift up slightly on the coin mechanism
and remove it from the machine.
Replacement
1. Hook the keyway holes in the rear of
the coin mechanism on the 3 hex-head
slotted screws loosened earlier (figure
29). Lower the coin mechanism into
place.
2. Tighten the 3 screws.
Figure 27
Figure 28
