Crane Snack Eenter I - Rotary Vend Door Timing

Snack - Based Troubleshooting and Repair Guide
September, 2002 Page 53 of 54 1670065
A. Set timing of the Rotary Vend Door
1. Remove the right end plate (See figure 33).
2. Rotate the delivery door until timing marks "A" and "D" are in line with the rotary door
center.
3. Remove the pinion gear bushing and nut.
4. Rotate the pinion gear until timing marks "B" and "C" are in line with timing marks "A"
and "D".
5. Reinstall the pinon gear bushing and nut.
6. Reinstall the right end plate.
7. Repeat steps 1 through 6 for the left end.
8. Verify that the timing is still correct.

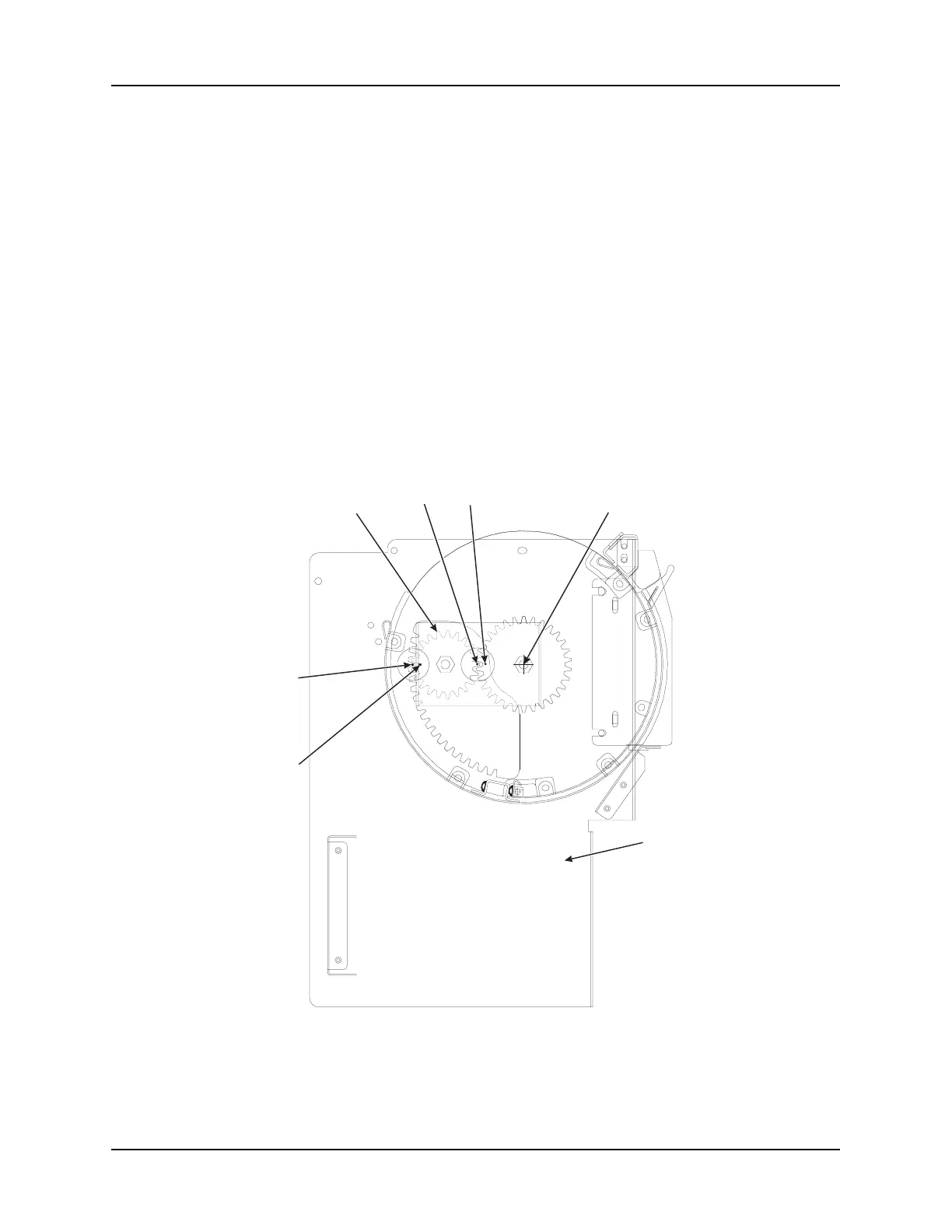

ROTARY
DOOR
CENTER
TIMING
MARK
"D"
TIMING
MARK
"C"
PINION
GEAR
T
IMING
MARK
"A"
T
IMING
MARK
"B"
˜
END PLAT
E
Figure 33
