Creality CR-M4 User Manual

24
19
6
Pull Rod x 2
23

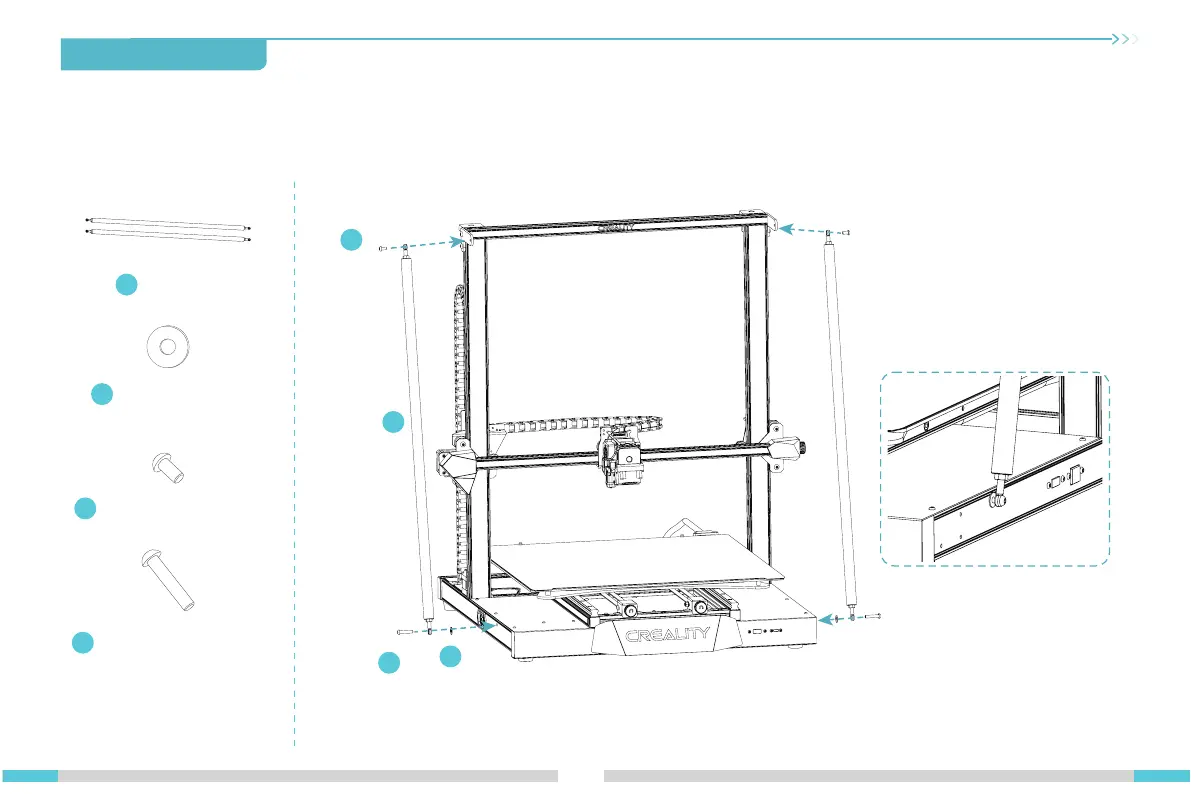

4.4 Pull Rod Installation
4.Device Installation
A.
B.
Fix one end of the pull rod to the top of the gantry frame with one M5*10 screw (just pre-tighten the screw).
Fix the other end of the pull rod to the base with one M5*25 screw and one M5 flat gasket as shown, finally tighten the fixing screws on
both ends of the pull rod; then complete the assembly of the pull rod on the other side using the same method.
07
6
23
Hexagon Socket Button
Head Screw M5*10 × 2
24
Hexagon Socket Button
Head Screw M5*25 × 2
19
M5 Flat Gasket × 2

Creality CR-M4 Specifications

General

Build Volume	450 x 450 x 470 mm
Filament Diameter	1.75 mm
Max. Nozzle Temperature	300°C
Number of Extruders	1
Frame Material	Aluminum Alloy
Printing Technology	FDM (Fused Deposition Modeling)
Nozzle Diameter	0.4 mm
Connectivity	USB, Wi-Fi
Supported Materials	PLA, ABS, PETG, TPU
Power Supply	50/60Hz
Print Speed	30 - 120 mm/s
