Connect the DM-DGE-200-C
Make all necessary connections to the DM-DGE-200-C as shown in the following diagrams.
NOTE:The DM-DGE-200-C does not support PoE (Power over Ethernet)or PoDM (Power
over DM® input) and must be powered by the included power pack.

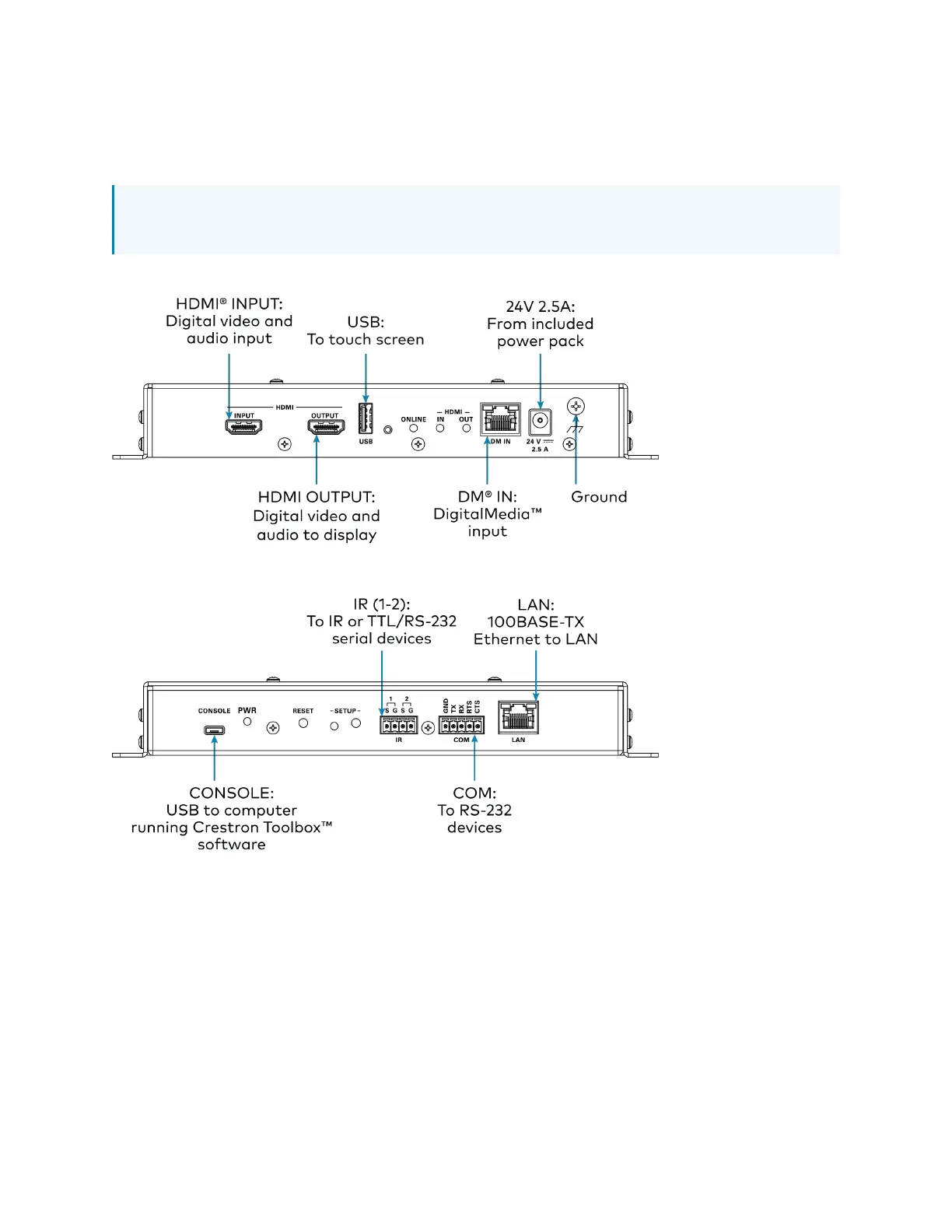

Top Panel Connections
Bottom Panel Connections
Observe the following when connecting the DM-DGE-200-C:
l
Use Crestron power supplies for Crestron equipment.
l
Do not extend the included cable.
l
Connect the chassis ground lug to a known earth ground circuit (such as building steel) to
ensure that the device is grounded properly.
l
Apply power after all connections have been made.
