When the Elite keypad is displaying numeric values in program mode it uses the zone LEDS 1-8 to indicate a
value of 1-8 and to maintain consistency with the 8 zone LED keypad, the panel uses the “A” LED to indicate a
“0” and the “B” LED to indicate a “9”.
“A” = 0, “B” = 9.
LIGHT OFF ON STEADY FLASHING
BATTERY
Normal Battery Low
MAINS
Normal Mains Power Off
ARMED
Unused Unused Unused
MEMORY
Normal Memory Display
New Event to View
BYPASS
Normal Bypass Mode Active Zone(s) Bypassed
PROGRAM
Run Mode Client Program Mode Installer Program Mode
TAMPER
Normal Tamper still Active New Tamper Alarm
LINE
Normal Communicating Line Fail or no Kissoff
AUX.
Unused Unused Unused
CONTROL
Control Function Off Control Function On DOTL Override On
ZONES 1-16
Zone Secure Zone Violated Zone in Alarm
A
Partition A Disarmed Partition A Armed Partition A in Stay Mode
B
Partition B Disarmed Partition B Armed Partition B in Stay Mode
C
Partition C Disarmed Partition C Armed Partition C in Stay Mode
D
Unused Unused Unused

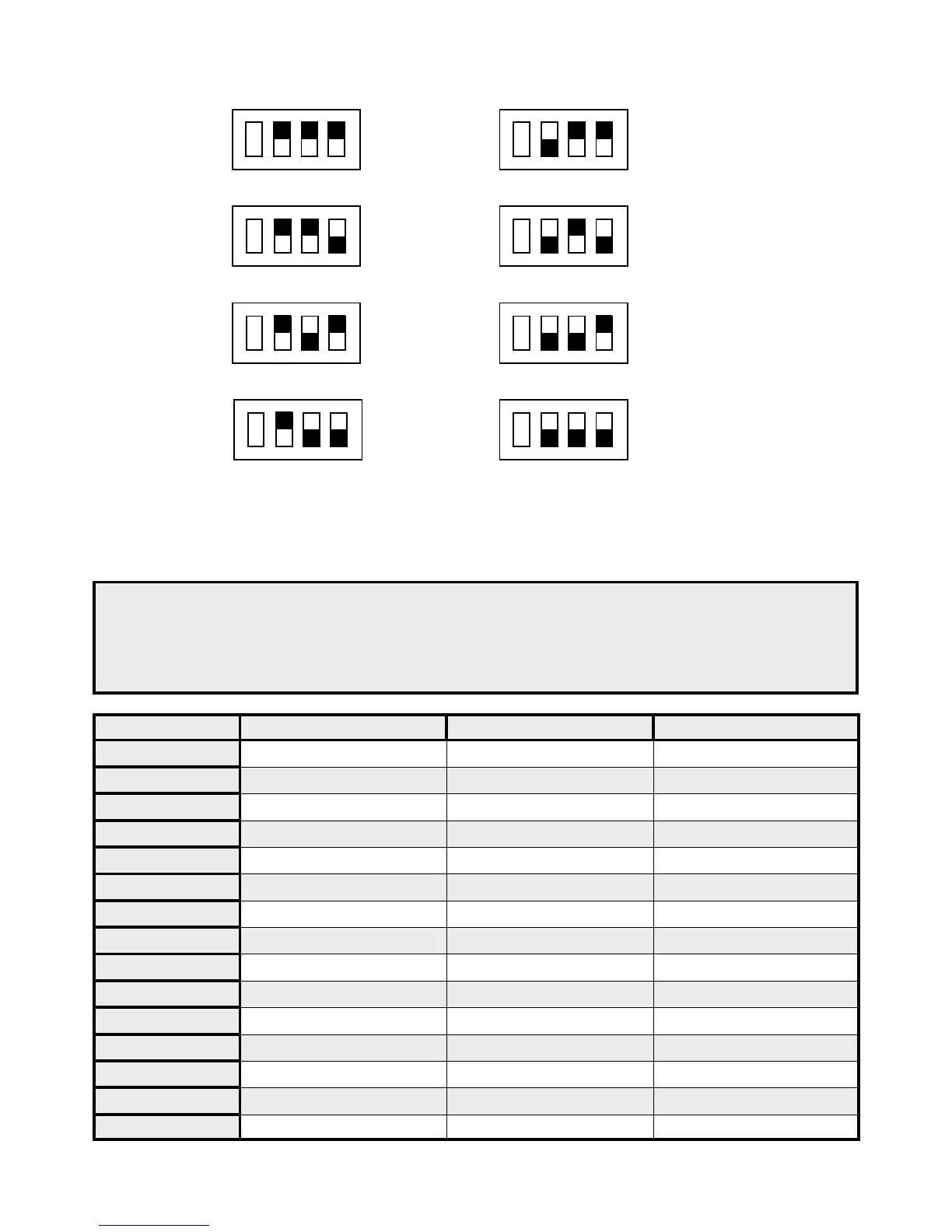

D C B A
D C B A
D C B A
D C B A
D C B A
D C B A
D C B A
D C B A
KEYPAD
# 1
KEYPAD
# 2
KEYPAD
# 3
KEYPAD
# 4
KEYPAD
# 5
KEYPAD
# 6
KEYPAD
# 7
KEYPAD
# 8
