INPUTS
The Elite V6 has 10 separate programmable monitored analogue inputs,
8 x Programmable, multi-state detection inputs
1 x Programmable tamper input
1 x Programmable keyswitch input
Each input must be terminated with a short or the appropriate combination of end-of-line resistors,
depending upon the programmed configuration.
ZONE INPUTS - Each of the 8 zone inputs can be independently assigned one of the following configuration options;
Type 1(8Z) 8 Zone Short circuit input No-End-of-Line (EOL).
Type 2(8Z) 8 Zone Single-End-of-Line 2k2 (EOL) with no tamper.
Type 3(16Z) 16 Zone Double-End-of-Line (EOL) No Tamper.
Type 4(16Z) 16 Zone Double-End-of-Line (EOL) With open & short circuit Tamper.

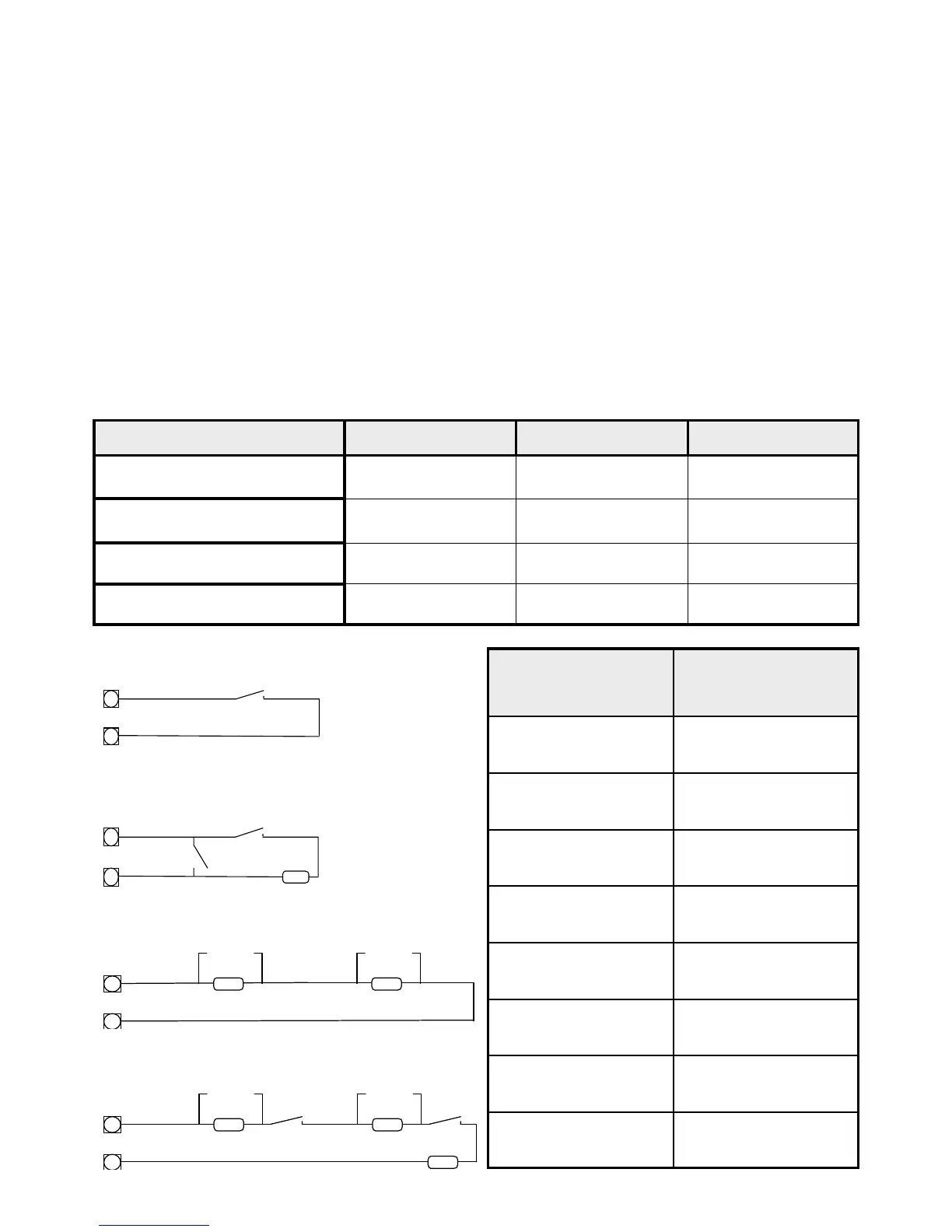

The following table shows end-of-line resistor configurations. The reference to LEDS in bold below relate to the
program option setting at addresses P310E & P319E. The options 1-8 at addresses P310E & P319E relate to zone
inputs 1-8. If an input is set to EOL at address P319E then it relates to the single zone being a 2K2 resistor but if
Zone Type Low Zone Hi Zone Tamper
Type 1(8 Zone No EOL)
P310E LEDS Off, P319E LEDS Off
N/A (Short circuit) None None
Type 2(8 Zone EOL, No Tamper)
P310E LEDS Off, P319E LEDS On
2k2 None None
Type 3(16 Zone EOL, No Tamper)
P310E LEDS On, P319E LEDS Off
4k7 8k2 N/A
Type 4(16 Zone EOL, with Tamper)
P310E LEDS On, P319E LEDS On
4k7 8k2 2k2
LED at Address P310E
(Zone Doubling)
È
LED at Address P319E
(EOL or Tamper)
È
LED # 1
Off = Zone 1 only
LED # 1
Off = No EOL
LED # 2
Off = Zone 2 only
LED # 2
Off = No EOL
LED # 3
Off = Zone 3 only
LED # 3
Off = No EOL
LED # 4
Off = Zone 4 only
LED # 4
Off = No EOL
LED # 5
Off = Zone 5 only
LED # 5
Off = No EOL
LED # 6
Off = Zone 6 only
LED # 6
Off = No EOL
LED # 7
Off = Zone 7 only
LED # 7
Off = No EOL
LED # 8
Off = Zone 8 only
LED # 8
Off = No EOL
Type 1 (8 Zones, Short Circuit)
n/c
Type 2 (8 Zones, 2k2 EOL, No tamper)
n/c
n/o
2k2
Type 3 (16 Zones, 4k7 & 8k2 EOL with No tamper)
Alarm Contact
n/c or n/o
4k7
Alarm Contact
n/c or n/o
8k2
Type 4 (16 Zones, 4k7 & 8k2 EOL , 2k2 EOL for tamper)
2k2
Tamper
Alarm Contact
n/c or n/o
4k7
Alarm Contact
n/c or n/o
8k2
Tamper
