CTC Union FRM220 User Manual

Chapter 1 Introduction

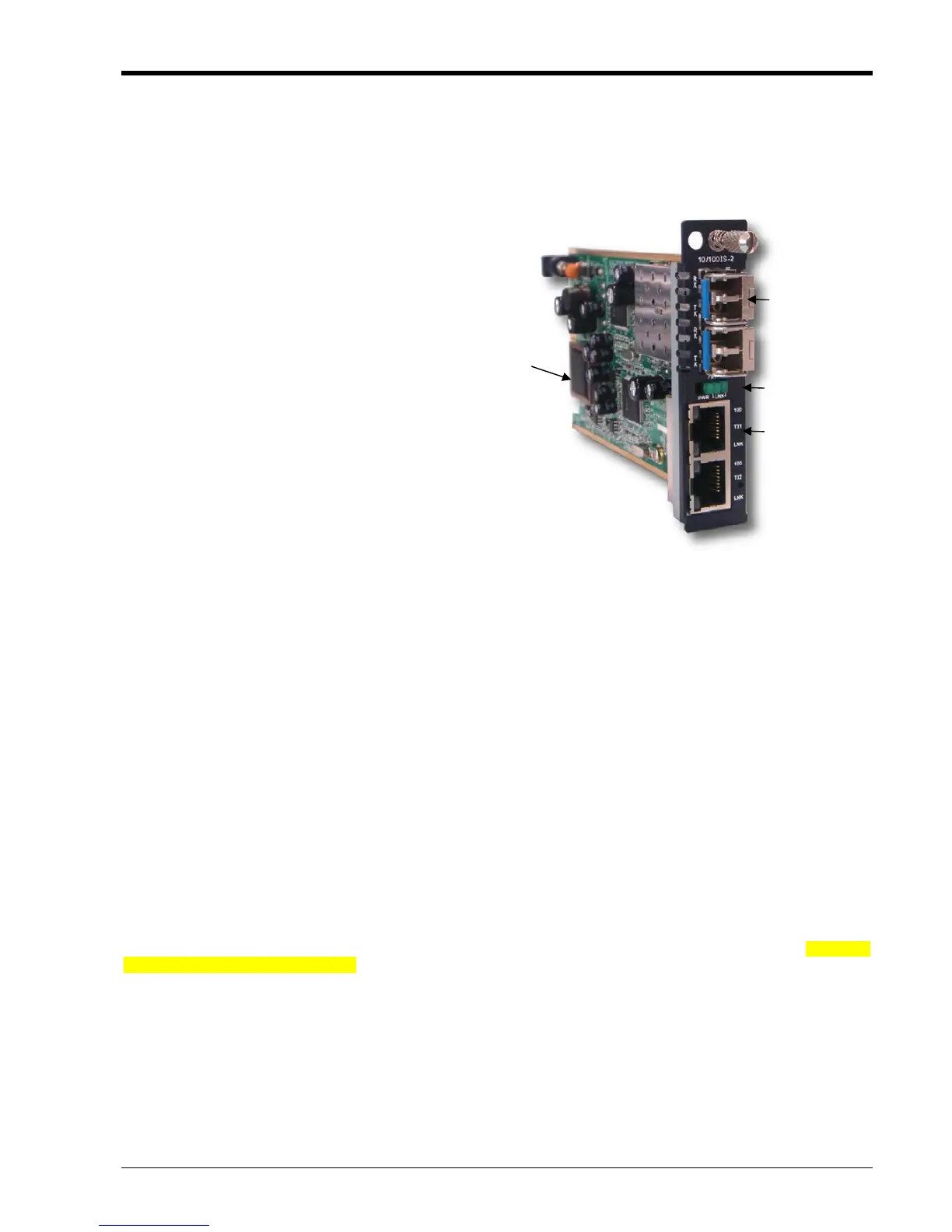

Fiber SFP
(LC Type
LED
Indicators
10/100
Ethernet
)
CPU
Chip
Dual Channel (2-in-1)
Ethernet Converter
nnels)
e
all latency)
onitor and
220
gasp)
ent
1.7.2 FRM220-10/100iS-2 Dual Channel In-band managed 10/100 Fiber Media Converter
The FRM-10/100iS-2 (in-band converter) is a Dual Channel (2 converters in 1 card) In-band Managed (OAM)
Fiber Ethernet media converter (MC) that supports 10Base-T or 100Base-TX and converts to 100Base-FX (fiber).
The UTP side supports auto-negotiation or forced settings for speed and duplex by setting as well as auto-MDIX.
When the FRM-10/100iS-2 is placed in the FRM220 with NMC, the settings are controlled by the chassis
management system. The remote FRM-10/100i stand-alone may also be configured from the FRM220 through the
in-band management features (OAM).
Features
• Dual Converter on a single card (2 independent cha
• Supports Loop Back Test
• Auto-Cross over for MDI/MDIX in TP port
• Supports far end fault (FEF) function via OAM
• Auto-Negotiation or Manual mode in TP port
• Supports link fault pass through (LFP) function
• Bandwidth control (32K or 512Kbps x N)
• Forward 2046 bytes (max.) packets in switch mod
• Forward 9K jumbo packets in converter mode
• Supports forwarding mode option
• Store and forward (switch) mode, Convert mode (sm
• Supports local or remote In-band management (M
Configure status) by the SNMP manager in FRM
• Supports remote CPE power fail detection (Dying
• Provides Auto Laser Shutdown (ALS) function
• Supports Fiber Hardware Reset (FHR) function
• Provides fiber transceiver information for managem
• Supports On-Line In-band F/W upgrade (local or remote) by the
• SNMP manager in FRM220
Specifications
Complies with IEEE 802.3 and IEEE 802.3u
288kb packet buffer in switch mode
1K MAC address table in switch mode
Supports IEEE802.3x flow control in switch mode
OAM is based on TS-1000 protocol
Compliance: FCC part 15, Subpart B, Class A,
ANSI C63.4:2003
CE EN55022:2006, Class A
EN55024:1998+A1:2001+A2:2003
LVD: EN60950-1:2001
MTBF: 65,000 h (25°C)
10Base-T UTP Cable Requirement
Cable type: Category 3, 4 or 5. Maximum distance: 100 meters (328 feet)
100Base-TX UTP Cable Requirement
Cable type: Category 5, minimum. Maximum distance: 100 meters (328 feet)
Management
10/100iS-2 is a dual channel media
converter that must be placed in
FRM220-CH20 for management.
It utilizes SFP for fiber connection
and two 10/100 Ethernet electrical
ports.
The 10/100iS-2 card is managed by an on-card CPU when installed in the FRM220 CH20 chassis. There are
no DIP switches or manual settings. If the MC is placed stand-alone, without local or remote connection to FRM220
NMC management, the two separate MC run with default parameters. The default parameters are: switch mode,
auto-negotiation, LFP disabled, ALS (Auto Laser Shutdown) disabled, and no bandwidth limit. When a fully
populated CH20 (with 19 10/100iS-2) is deployed, a total of 38 loops are available from the 2U FRM220-CH20.
Due to dimension limitations, the 10/100iS-2 is only available for SFP based fiber optics.
This product includes the following models:
• FRM220-10/100iS-2 (2 electrical plus 2 SFP Dual media converter)
11
