1.7.17 FRM220-10G-SXX 10Gbps 3R Fiber Transponder

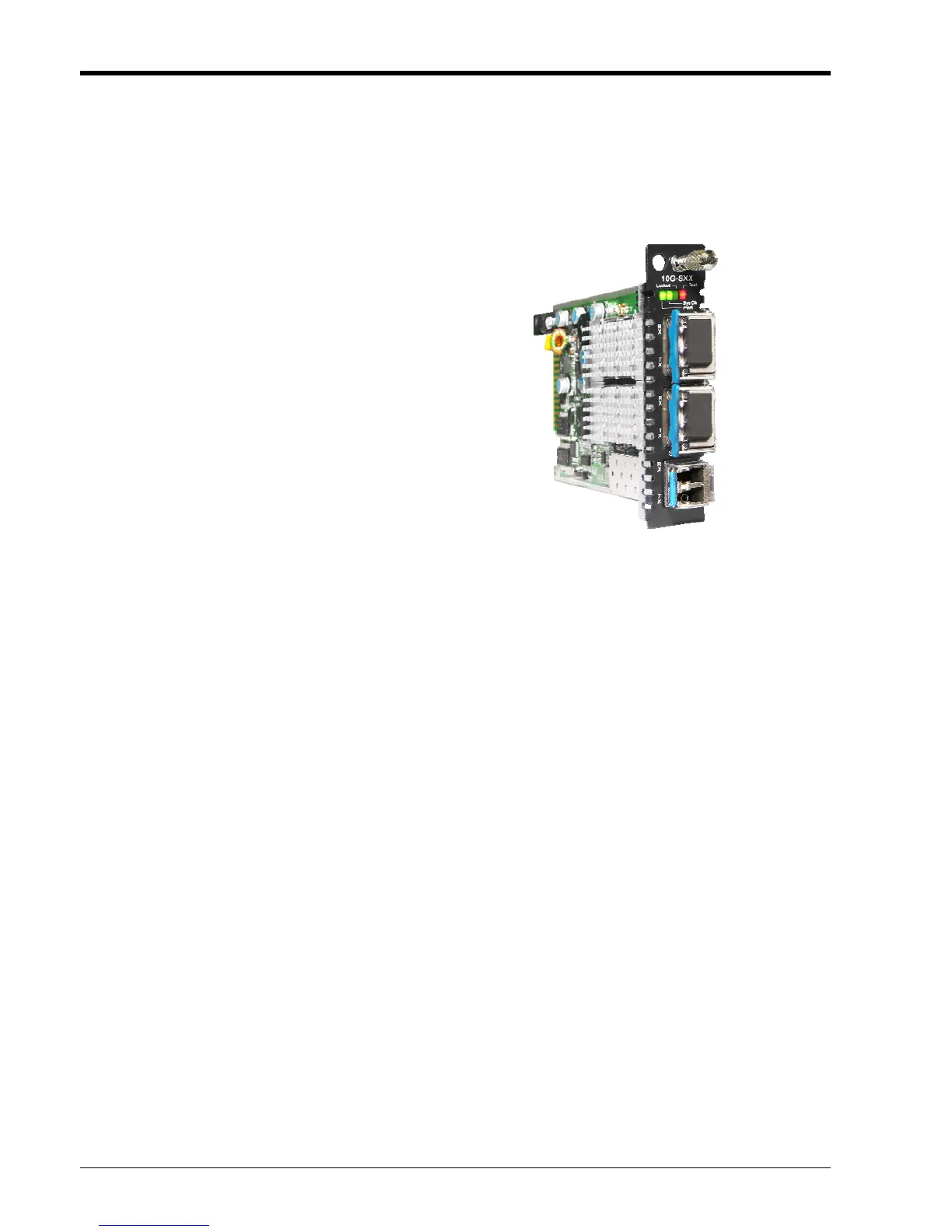

The FRM220-10G-SXX is a 10G fiber to fiber 3R repeater/transponder. Based on a number of 10 Gigabit Fiber
standards, this transponder supports XFP to SFP+, XFP to XFP or SFP+ to 1+1 redundant XFP fiber connections.
The transponders are protocol transparent, providing 3R regeneration between these different optical module types.
One of the major applications for this converter is in connecting proprietary transceiver equipment to CWDM or
DWDM when these 'colored' optical modules are not available for the proprietary equipment. With full duplex wire
speed forwarding capability between the 2 fiber media, the FRM220-10G-SXX brings you the best and simplest
solution for your 10G conversion between fiber and fiber.
Features
• Protocol transparent 3R fiber media transponder/repeater
• Supports IEEE802.3ae, 10G Fiber Ethernet
• Supports 10G Ethernet, Fiber Channel, STM-64
• Network management via terminal,
web or SNMP in FRM220-CH20 chassis
• Useful as a 'Transponder' in CWDM or DWDM systems
for 10G Ethernet/Fiber Channel/STM-64
• Supports Client / Line loop back tests
• Serial console for stand-alone management
when inserted in CH02M Two Slot Chassis
Specifications
Ports
Optical Interface
FRM220-10G-SXX
Connector : LC, 1 Line SFP+, 2 Line
Data rates: (Depending on hardware ver
1G FC (1.0625G)
2G FC (2.125G)
4G FC (4.25G)
8G FC (8.5G)
10G FC (10.51875G)
10G Base Ethernet (10.3125G)
STM-64/OC192 (9.95328G)
OTN G.709 OTU2 (10.709225G)
Loop back: Line/Client
Cable type : SM 9/125μm, MM 50/125μm, 62.2/125μm
Wavelength: 850, 1310, 1550nm (depending on SFP+/XFP)
LEDs Power, Line Link, Client Link, Test
Power DC In 12V
Power Consumption
< 10W
Dimension (D x W x H) mm 155 x 88 x 23mm
Weight 120g
Temperature
-10~60° C (Operating) ,-20~70° C (Storage)
Humidity 10~95% non-condensing
Certification CE, FCC, LVD, RoHS
MTBF
65,000 h (25° C)
Warning: Due to high power requirements and heat dissipation of 10G Series cards, they are limited to placing a
maximum of 10 cards in CH20 chassis leaving an empty space between each card. 10G Series cards should not be placed in
CH01 single slot chassis for this same reason. Additionally, only one card should be placed in CH02 with an additional NMC
for management.
This product includes the following models:
• FRM220-10G-SXX (10G fiber 3R transponder/repeater)
H/W Ver. 1.1 supports: Ethernet 1G(1.25G) and 10G(10.3125G), Fiber Channel 1(1.0625G), 2(2.125G), 4(4.25G), 8(8.5G) &
10G(10.5187G), 16x CPRI(9.8304G), OC-192/STM-64(9.95328G) and G.709 OTU2(10.709225G)
H/W Ver. 2.1 supports: Ethernet 1G(1.25G) and 10G(10.3125G), Fiber Channel 10G(10.5187G) and 10G OTU(11.318G),
OC-192/STM-64(9.95328G), G.709 OTU2(10.709225G) and G.709 OTU2e(11.095G)
XFP
sion)
