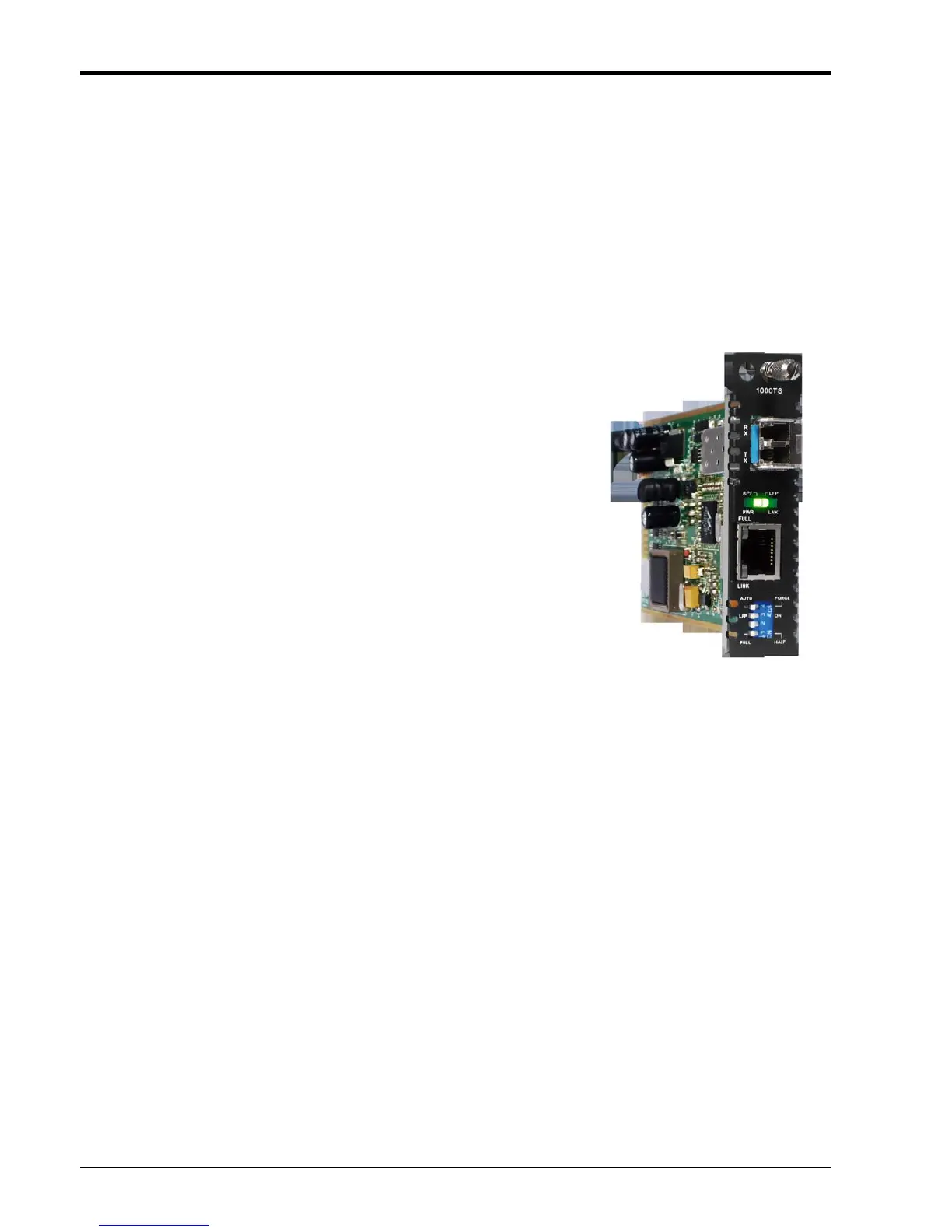

1.7.23 FRM220-1000TS GbE to Gigabit Fiber Converter Card
The FRM220-1000T(S) is a 1000Base copper to fiber converter which transparently supports any protocol or
packet size. This slide in fiber media converter is available in two different models that work stand-alone or as line
cards for placement in the FRM220 Platform Media Converter chassis. The FRM220-1000T uses a fixed optical
transceiver while the FRM220-1000TS features an standard SFP socket. The FRM220-CH01 is a stand-alone case
for FRM220 slide-in cards with built-in power supply features.
All media converters are available with either multi-mode or single-mode optical transceivers with SC connectors
for fixed transceivers or LC connectors for the SFP version. In single mode, WDM (Wave Division Multiplexing with
SC or LC ) or “Bidi” are also available in 20, 40, 60km reach, which provide the ability to transmit and receive data
using only a single optical fiber. When the FRM220-1000T(S) card is placed in the FRM220 rack with SNMP
management, the card status, type, fiber link status and UTP link status can all be displayed.
This converter is excellent when used in high speed gigabit networks that employ jumbo packets. The FRM220-
1000T(S) supports unlimited packet size and has extremely low latency.
Features
• 1000Base-T to 1000Base-SX/LX
• Network management via terminal, web or SNMP in FRM220 chassi
• Forced 1000Base/Full Ethernet
• Auto MDI/MDIX
• Pass > 9K bytes packets
• Supports Link Fault Pass Through (LFP) function
• Auto Laser Shutdown (ALS)
Specifications
Standards
• IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, Gigab
1000Base-T RJ-45 Connectors
• 1000T(S) : One RJ45 connector is provided for UTP cable connecti
All RJ45 ports utilizing auto MDI/MDIX, which allow all UTP connection
straight and crossover UTP cable.
1000Base-X Fiber Optic Connectors
• 1000TS : One SFP slot is provided for standard 1.25Gbps SFP module.
Environment
• Operating -10 to 60C
• Storage -20 to 70C
• Humidity -- 10 to 90%, (non-condensing)
Power
• Adapter: 12V DC 1A (CH01-DC12)
• Built-in AC Power 100~240 V (CH01-AC)
• Built-in DC Power 18~72VDC (CD01-DC)
Dimensions: (W x D x H) mm
• 1000TS-DC12 : 88 × 160 × 24 1000T(S)-AC: 135 × 201 × 35
• 1000TS-DC48 : 135 × 201 × 35 1000T(S)-AD/AA/DD: 135 × 201 × 35
This product includes the following models:
FRM220-1000TS GbE to Gigabit Fiber Converter Card
