Chapter 1 Introduction

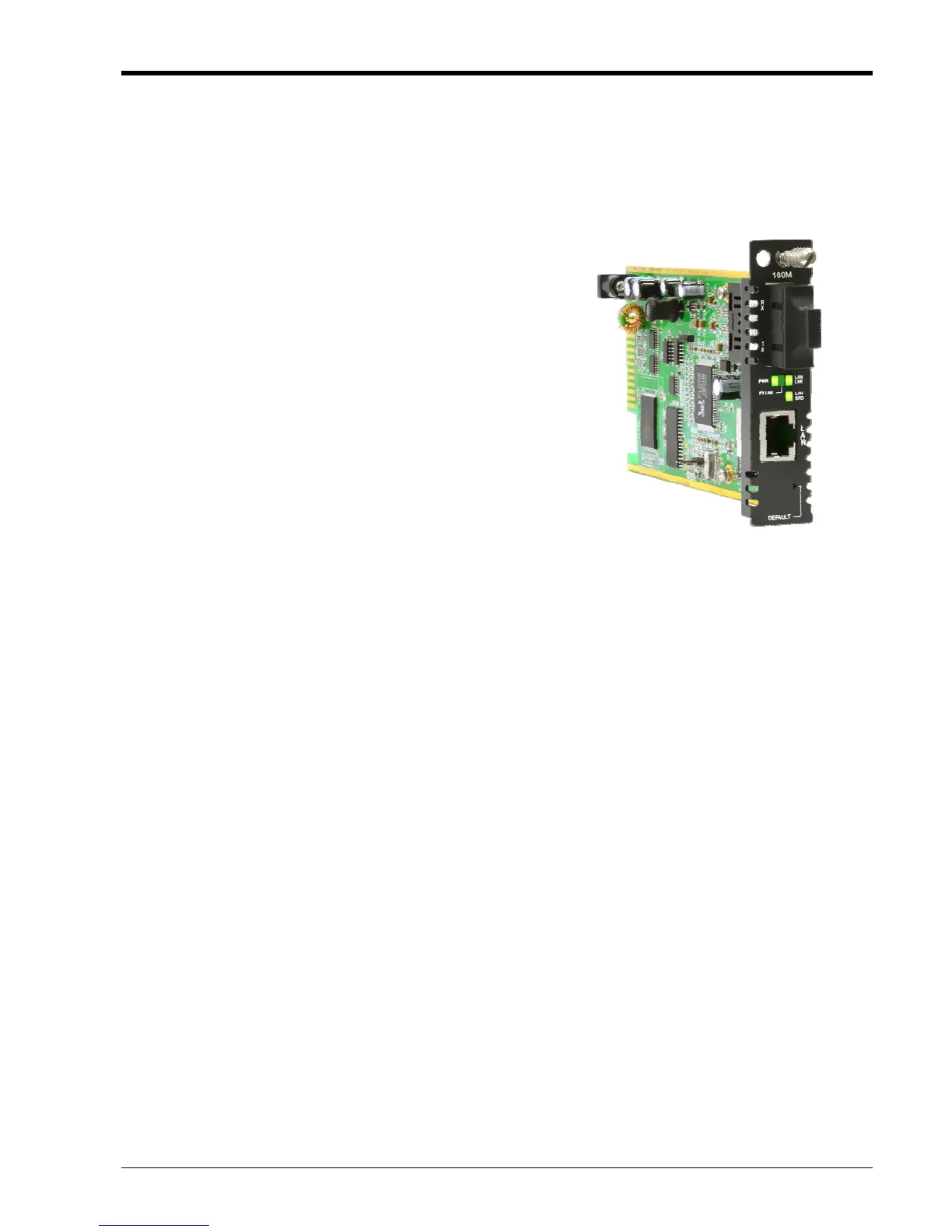

1.7.6 FRM220-100M(S) WebSmart OAM 10/100 Fiber Media Converter
This IEEE802.3ah OAM compliant copper to fiber Fast Ethernet solution is designed to make conversion
between 10/100Base-TX and 100Base-FX with SC connector. With SNMP agent and GUI Web-based
management in the FRM220, the Network administrator can monitor, configure and control the activity of each
OAM series line card. This 802.3ah OAM Compliant media converter, with its Q-in-Q and maximum interoperability
will enable carriers and service provides to have a clear vision of their network and conveniently manage their
demarcation point.
Features
• Standalone WebSmart management (Web GUI)
• 10/100Mbps auto-negotiation or forced mode operation
• Fiber 100Mbps/Full
• Supports jumbo frames (9.6K)
• Supports Flow control function
• Supports OAM remote loopback to assist in diagnosin
• Supports bandwidth control
• Supports Dying Gasp Reporting for power outage
• Supports 802.1p QoS tag priority
• Supports local / remote monitor
• Supports local / remote Configuration
• Supports Q in Q double tagged packets
• Supports remote firmware upgrade
• Supports IEEE 802.1q Tag VLAN
• Compatible with FRM220 Managed Chassis
Supports 10/100Base-TX, n-way (Auto-Negotiation).
Transmission Packet Rate for 10Base-T: 14880 per second
100Base-TX: 148800 per second
Copper TP cable 4 pair Cat. 3 4, 5e or 6 UTP
Optical Interface Specification
Transceiver Connector type：SC, or LC with SFP
Supports Full 100Mbps speed
Supports auto-receive sensitivity function, no extra attenuators needed.
General Specification
IEEE 802.3ah In-band OAM management compliant
4 diagnostic LEDs : Power, FX-Link, LAN Link, LAN Speed
Temperature: 0 - 50° C (Operating); 0 - 70° C (Storage).
Humidity: 20-80% non-condensing (Operating); 10-90% (Storage).
Power: DC Jack : Switching adaptor (12V, 400mA)
Consumption: < 4W
Dimensions: 155mm x 88mm x 23mm (LxWxH).
Weight: 120g.
Compliance: FCC part 15, Subpart B, Class A,
ANSI C63.4:2003
CE EN55022:2006, Class A
EN55024:1998+A1:2001+A2:2003
LVD: EN60950-1:2001
MTBF: 65,000 h (25°C)
This product includes the following models:
• FRM220-100M (1 electrical to 1 fixed transceiver Fast Ethernet media converter)
• FRM220-100MS (1 electrical to 1 SFP transceiver Fast Ethernet media converter)
on the TP interface
g network problems
LAN Interface Specification
One RJ-45 female connector for straight or cross-over connection.
100M is a WebSmart stand-alone
manageable Fast Ethernet fiber
converter.
