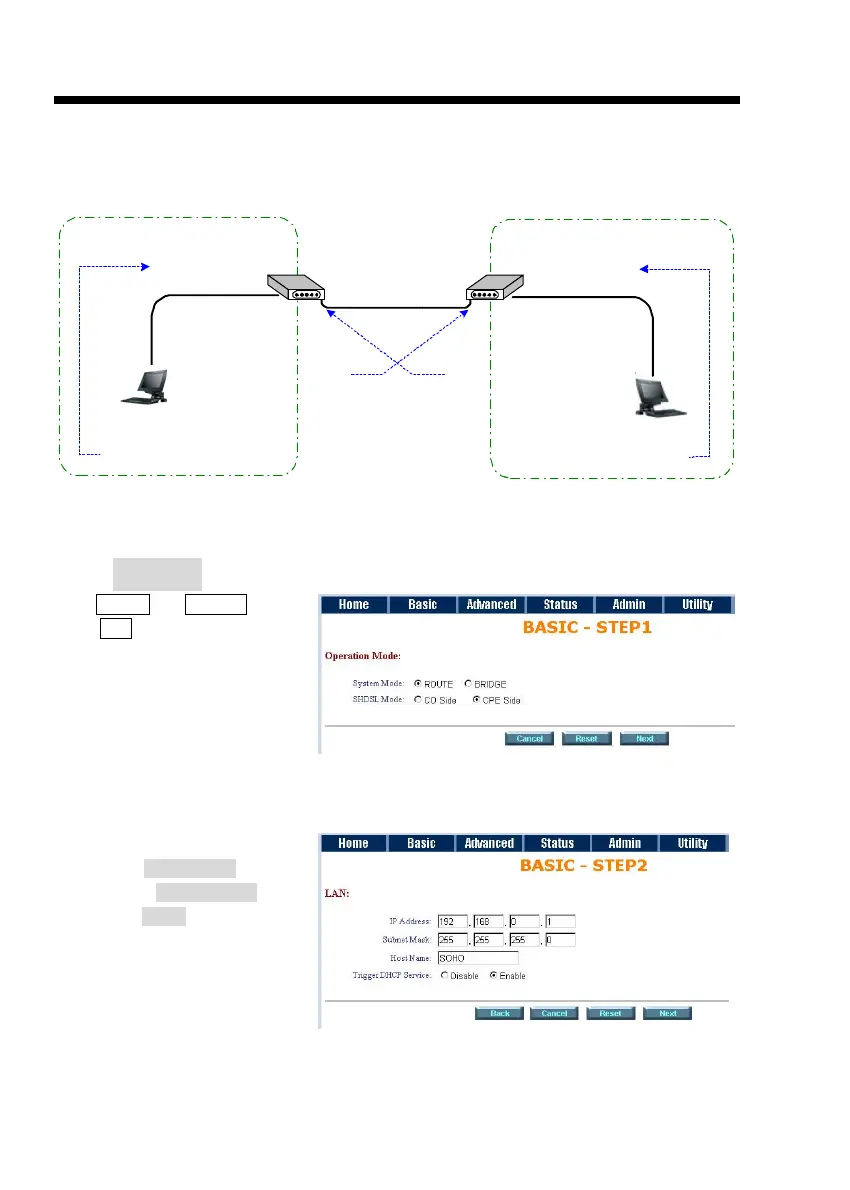

LAN-to-LAN connection in routing mode
IP: 192.168.20.1
Netmask: 255.255.255.0
STU-C (CO) STU-R (CPE)
Router
IP: 192.168.20.100
Netmask: 255.255.255.0
Gateway: 192.168.20.1
Router
IP: 192.168.10.1
Netmask: 255.255.255.0
IPoA or EoA
VPI:0, VCI:32
Encapsulation: LLC
IP: 192.168.10.200
Netmask: 255.255.255.0
Gateway: 192.168.10.1
IP: 192.168.30.1
Netmask: 255.255.255.0
Gateway: 192.168.30.2
IP: 192.168.30.2
Netmask: 255.255.255.0
Gateway: 192.168.30.1
CO side
Click ROUTE and CO Side then
press Next.
Type LAN parameters:
IP Address: 192.168.20.1
Subnet Mask: 255.255.255.0
Host Name: SOHO
DHCP Service: For more DHCP
service, review DHCP Service.
