Cutting Decks And Lift Shaft
132
B. Remove the nut that secure the belt guard
to the right side of the frame using a 1/2”
wrench. See Figure 8.2.
C. Pull in on the belt guard and slide it towards
the rear of the tractor.
D. Slide the PTO belt off of the engine pulley.
E. Remove the hair pin clip that secures the
PTO cable to the deck. See Figure 8.3.
F. Unhook the spring end of the PTO cable
from the idler pulley bracket.
See Figure 8.4.
4. Pull the deck pins on both sides and rotate them
to keep them out. See Figure 8.5.

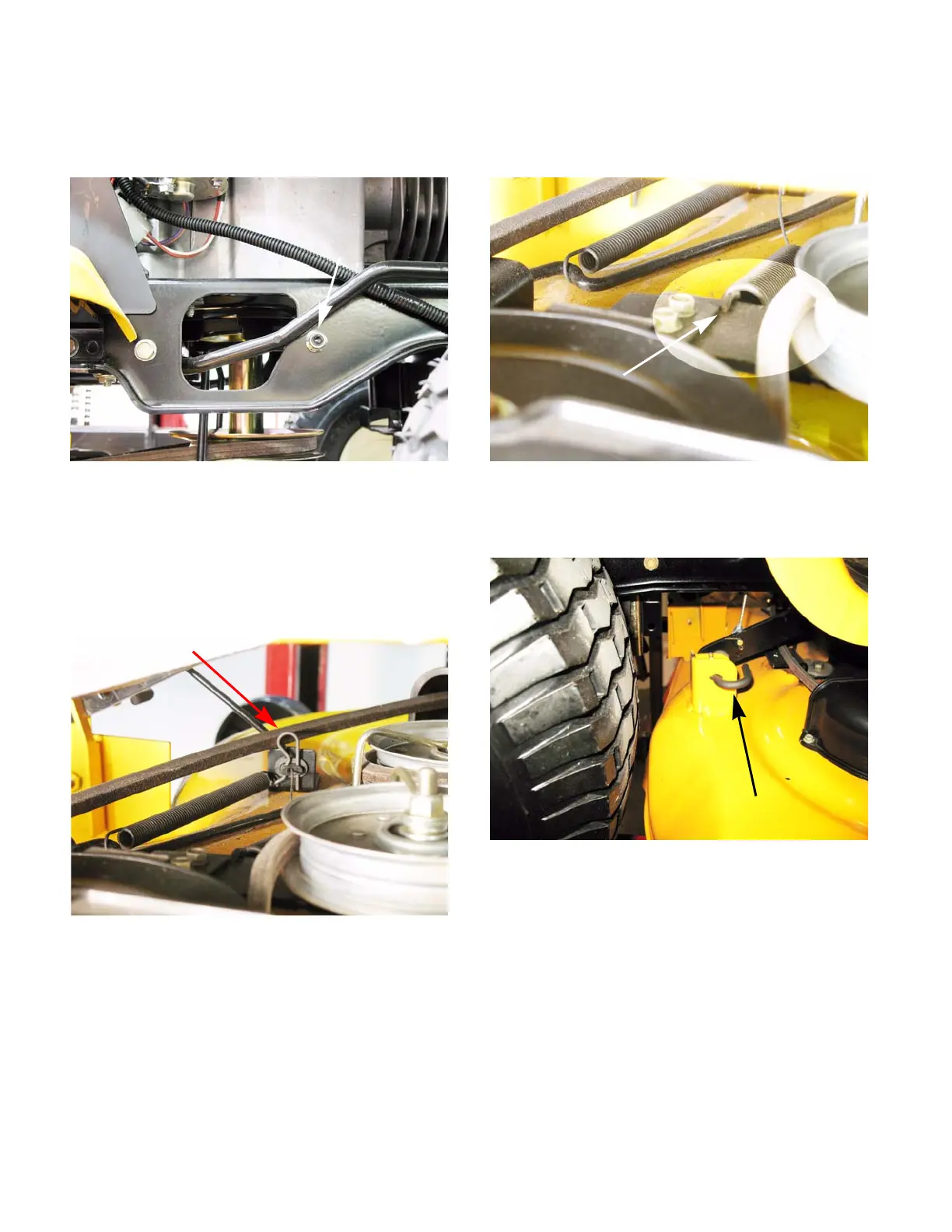

Figure 8.2
Remove this
nut
Figure 8.3
Remove this clip
Figure 8.4
Unhook this spring
Figure 8.5
Pull and rotate the deck pin
