BODY PANELS
27
7. Remove the two Torx
TM
head screws that hold
the throttle control to the dash panel using a T-
27 driver. See Figure 4.43.
8. If the tractor has a separate choke cable, discon-
nect it from the engine.
9. Remove the locking clip that holds the cruise
control / parking brake rod to the engagement
lever assembly. See Figure 4.44.

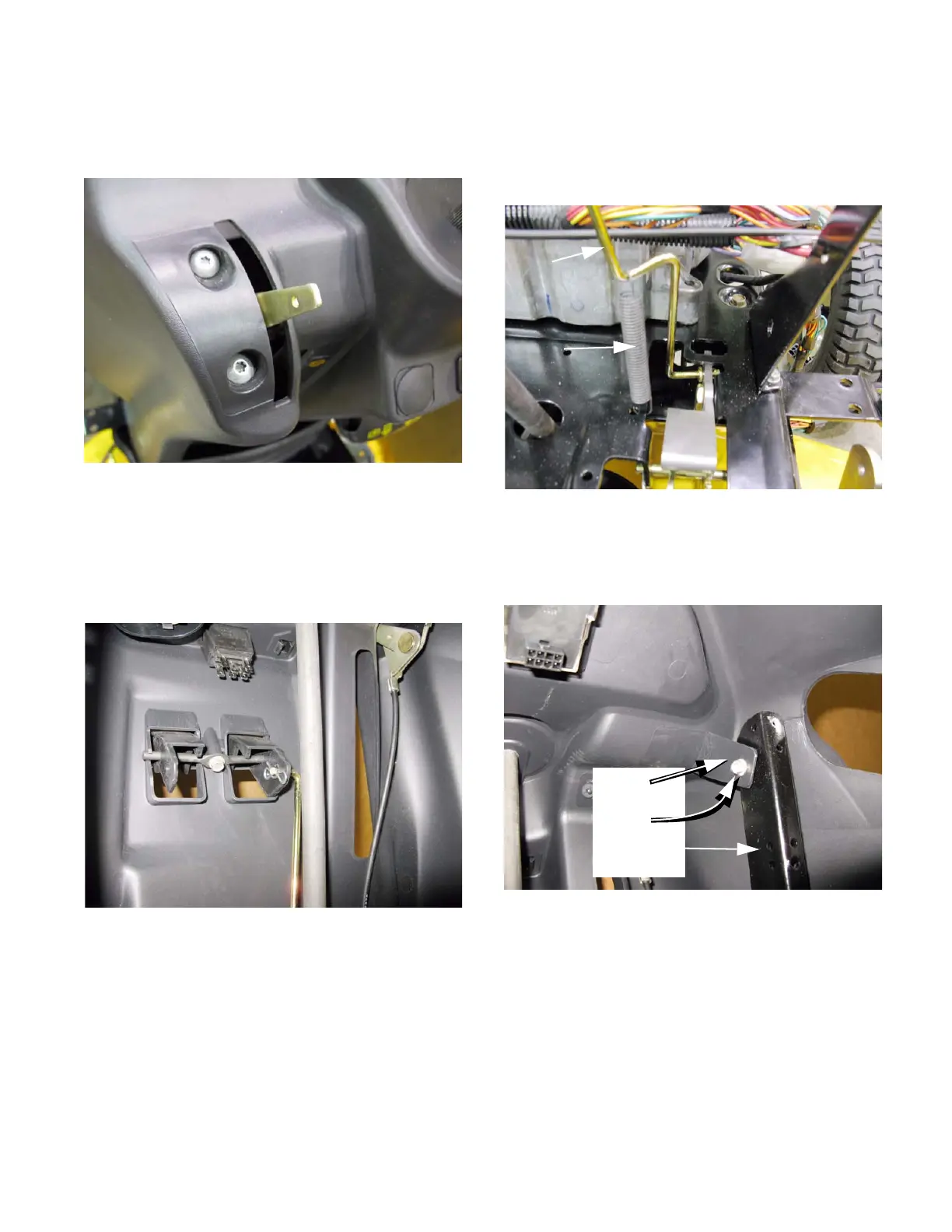

Figure 4.43
Figure 4.44
10. Disengage the rod from the lever assembly.
NOTE: The rod is kept in slight tension by a light
spring that hooks between the frame and the
step in the middle of the rod. See Figure 4.45.
11. Remove the screws that hold the inside mount-
ing ears of the dash panel to the dash support
brackets using a 3/8” wrench. See Figure 4.46.
Figure 4.45
Rod
Spring
Figure 4.46
Internal
mounting ear
Screw
Dash support
bracket
To Next Page
