HYDRO. DRIVE AND BRAKE SYSTEM
54

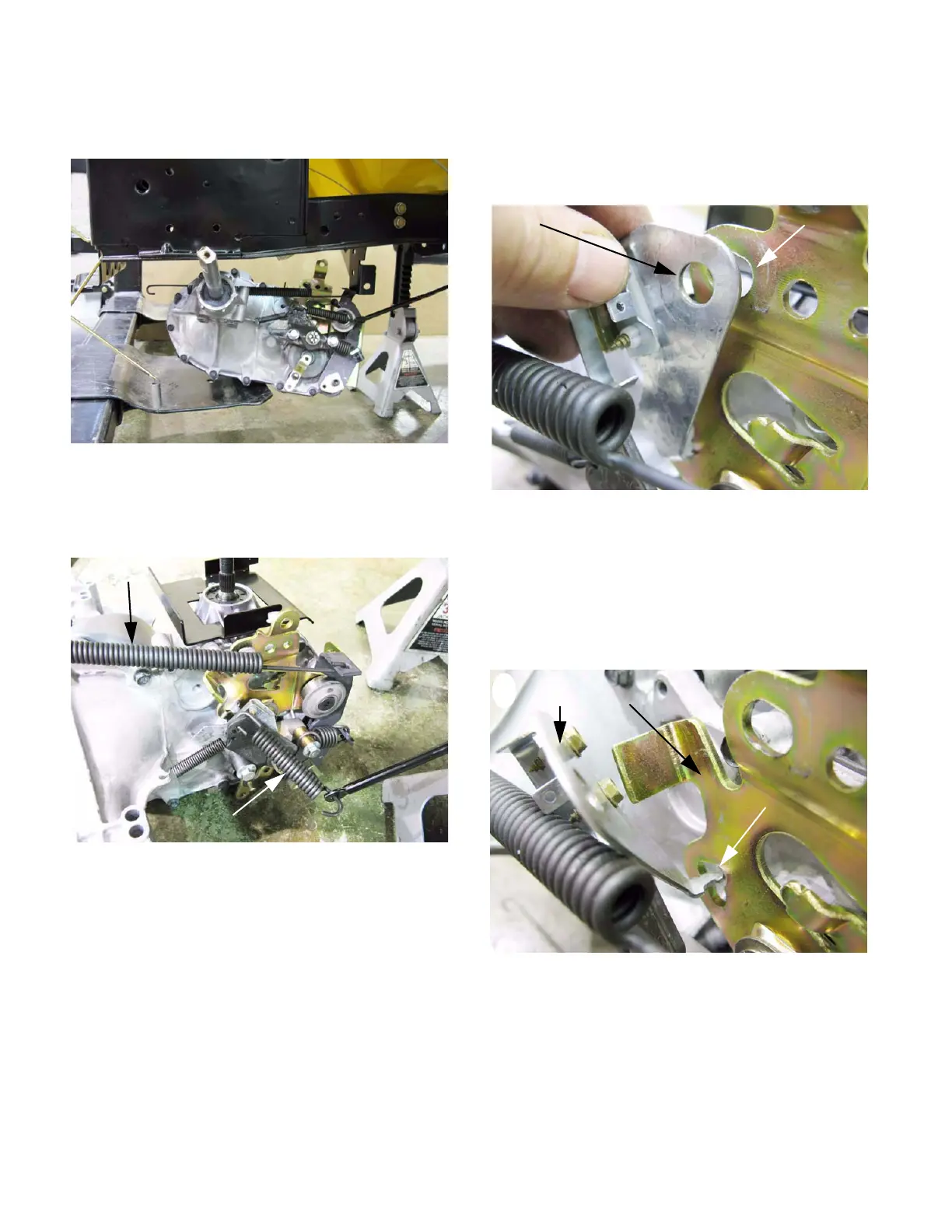

16. Carefully lower the transaxle out of the tractor.
See Figure 5.80.
17. Move the transaxle forward to make some slack
in the brake linkage. Use the slack to unhook the
brake spring from the brake arm.
18. Carefully lift the transaxle onto a workbench for
draining or disassembly as needed.
19. On the bench;
19a. The top of the reverse safety switch is held
against the trunnion arm by the post on the
drive control rod. See Figure 5.82.
NOTE: The post passes through a round hole in
the switch plate and an oblong hole in the trun-
nion arm.
19b. The bottom of the reverse safety switch fits
into a “T” slot in the trunnion arm.
See Figure 5.83.
Figure 5.80
Figure 5.81
Large r-t-n spring
Brake actuator spring
Figure 5.82
Round hole Oblong hole
Figure 5.83
Reverse
safety switch Trunnion arm
“T” slot
