• A working distance beam facilitates proper positioning of the handpiece. When the working
distance beam is centered within the aiming beam, the handpiece is at the optimal working
distance of 3.7 cm and at the correct distance to obtain an accurate temperature reading of
the target tissue.
NOTE
You can adjust the intensity of the working distance beam from the
Information & Adjustment Screen.

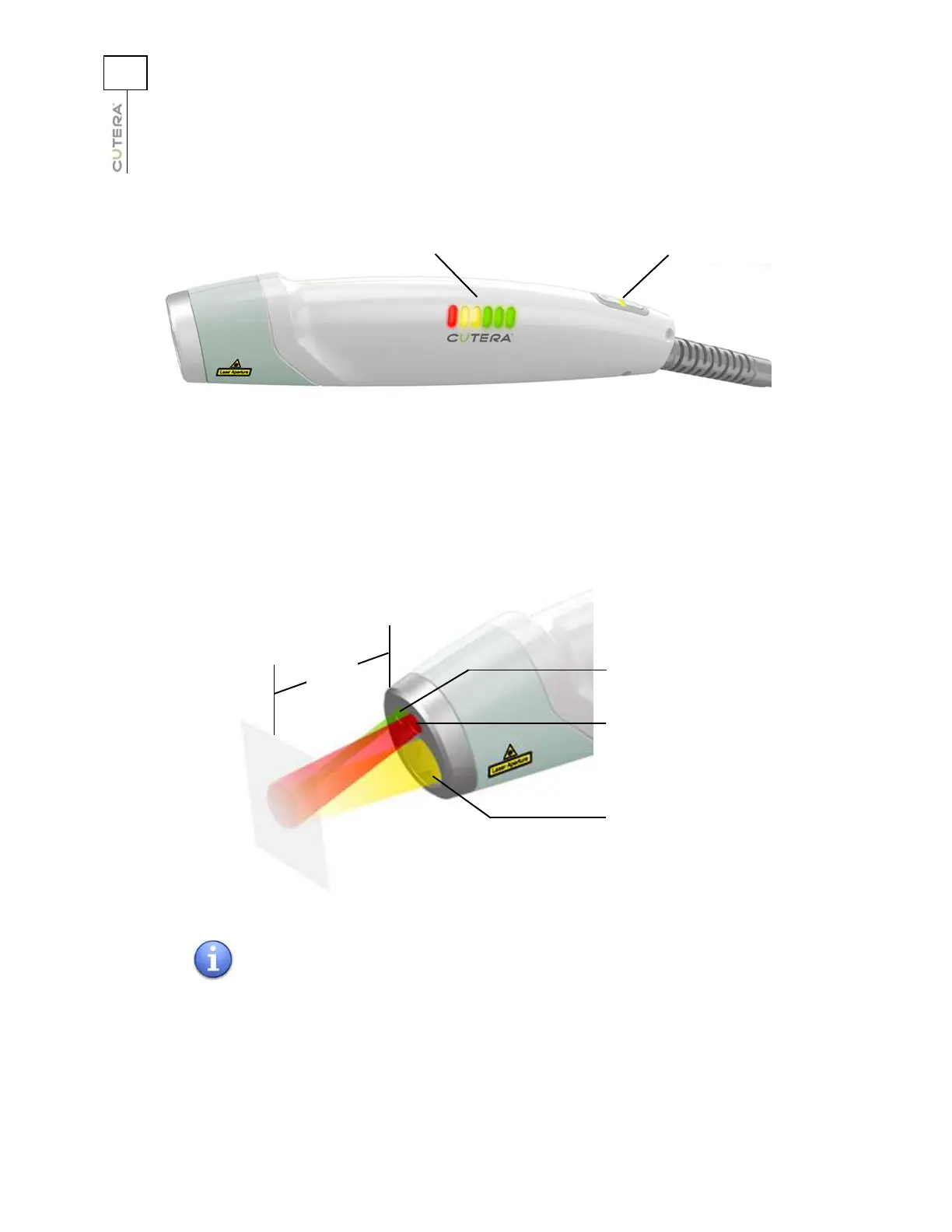

Genesis V Handpiece
LED temperature
indicators
Laser emission
indicator
3.7 cm
Temperature sensor
(not visible)
Aiming beam and treatment
beam (not visible)
(optimal
working
distance)
Working distance beam
