CYBEX Arc Trainer 772A User Manual

Arm Handle Linkage
Tools Required:
• 3/16” Allen wrench
• Loctite
®
#242
• Torque wrench, with 3/16" Allen wrench

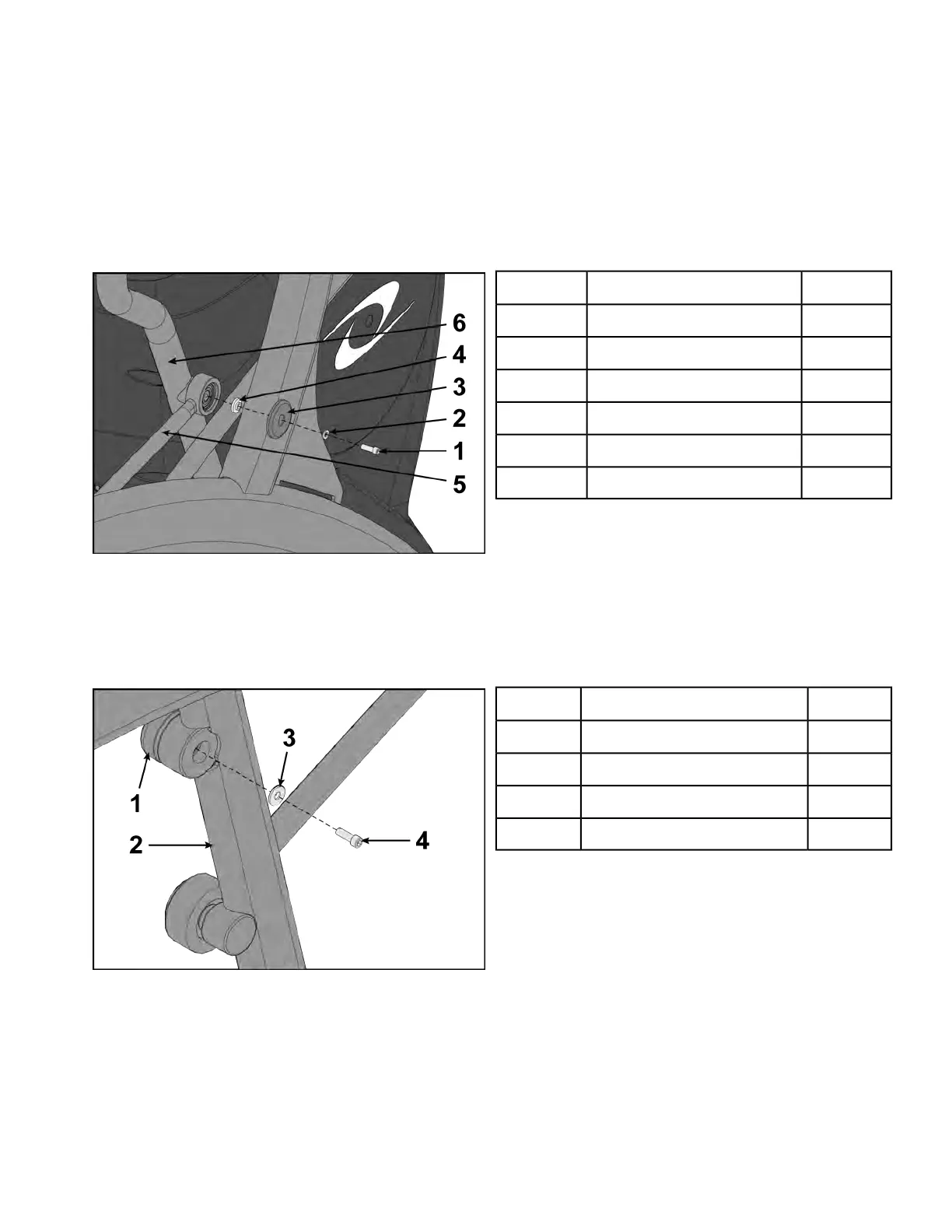

Remove front arm handle linkage
1. Remove screw, flat washer, cap, and spacer securing arm handle linkage using a 3/16” Allen wrench.
Qty.DescriptionItem
1Screw1
1Flat washer2
1Cap3
1Spacer4
1Arm handle linkage5
1Handle6
2. Remove arm handle linkage from handle.
Remove rear arm handle linkage
1. Remove screw and flat washer from arm handle linkage and front foot plate arm using a 3/16” Allen
wrench.
Qty.DescriptionItem
1Arm handle linkage1
1Front foot plate arm2
1Flat washer3
1Screw4
2. Remove arm handle linkage from front foot plate arm.
