CYBEX Arc Trainer 772A User Manual

Connect console cables
1. Install console cables to MCC board.

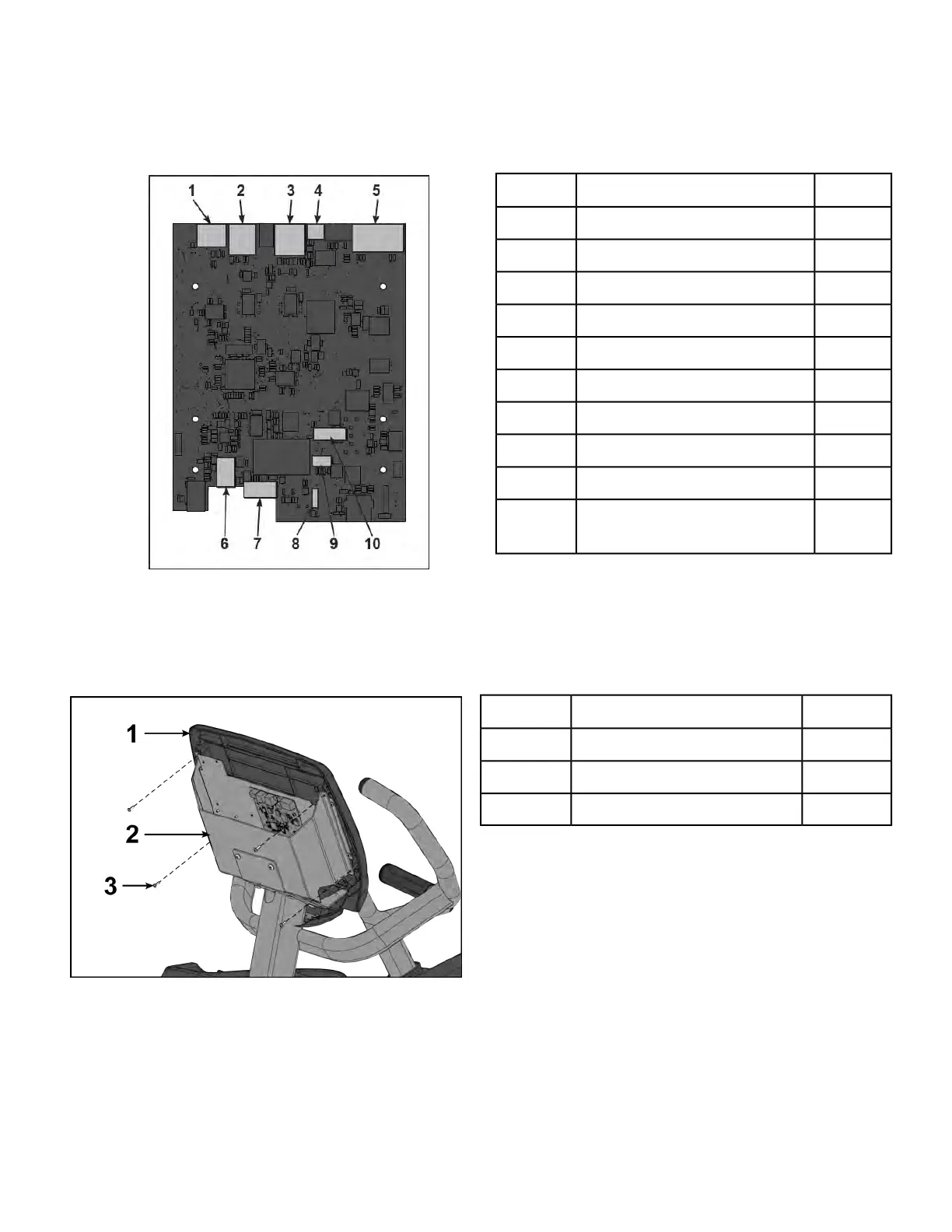

MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Fan4
1Upper display5
1Headphone jack6
1iPod (optional)7
1Heart rate8
1Handset membrane9
1
iPod board assembly (option-
al)
10
2. Plug optional wireless audio antenna into controller if installed.
Install console assembly
Install the six screws securing the console assembly to the console support using a Phillips screwdriver.
Qty.DescriptionItem
1Console assembly1
1Console support2
6Screws3
Install back cover
Install the four screws securing the back cover to the console assembly using a Phillips screwdriver.
