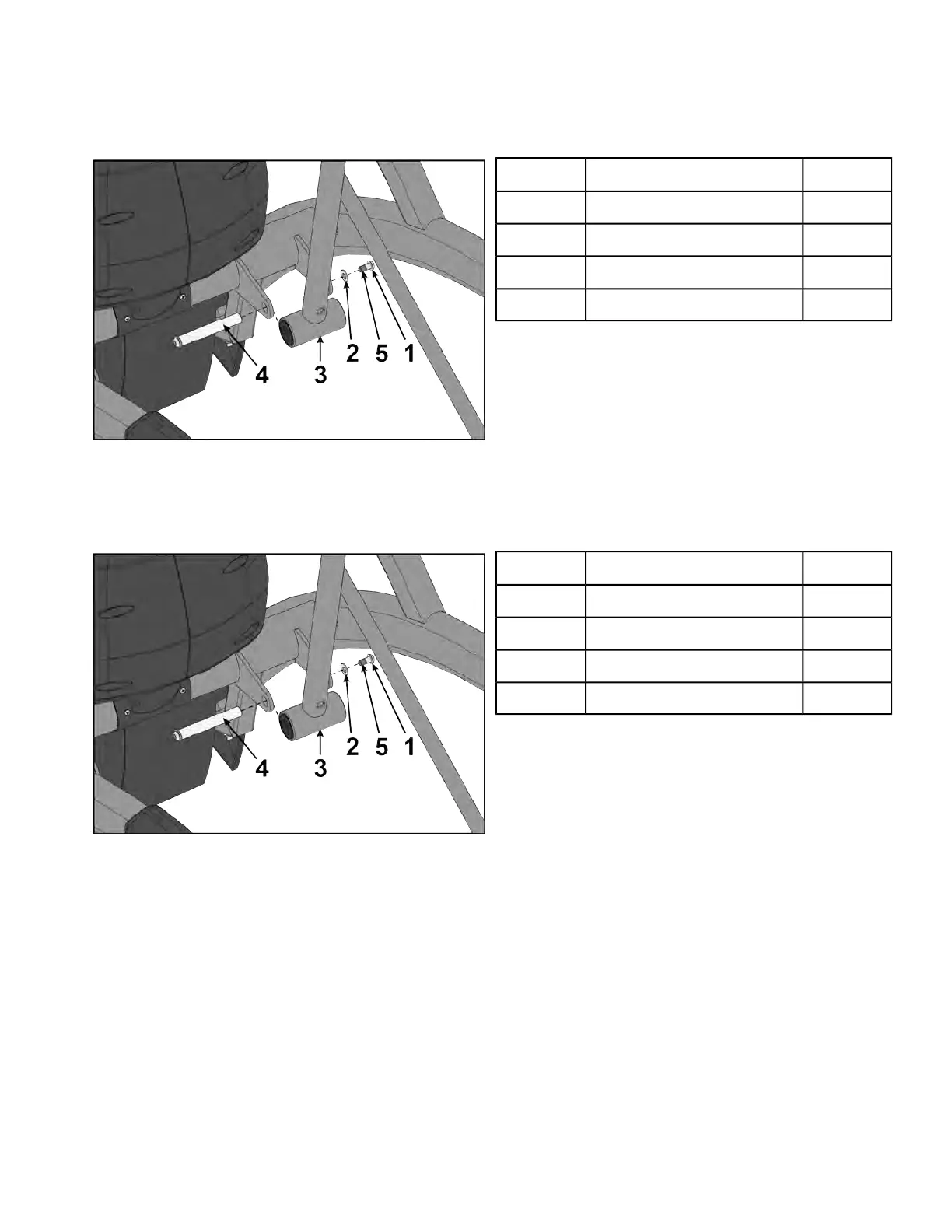

Remove arm handle
1. Remove screw, washer, and pivot pin securing arm handle using two 7/32” Allen wrenches.
The screw and washer from only one side needs to be removed.
Qty.DescriptionItem
1Washer1
1Screw2
1Arm handle3
1Pivot pin assembly4
2. Remove arm handle.
Install arm handle
1. Place new arm handle in position and slide pivot pin back in place.
Qty.DescriptionItem
1Washer1
1Screw2
1Arm handle3
1Pivot pin assembly4
2. Apply loctite to threads of screw and inside the pivot pin (where screw will be tightened into).
3. Install screw and washer to pivot pin.
4. Tighten screw using two 7/32” Allen wrenches securely.
When tightened properly, frame tabs are pulled tight to the bearing.
Page 100 of 202
Cybex 772A, 772AT Arc Trainer Part Number
