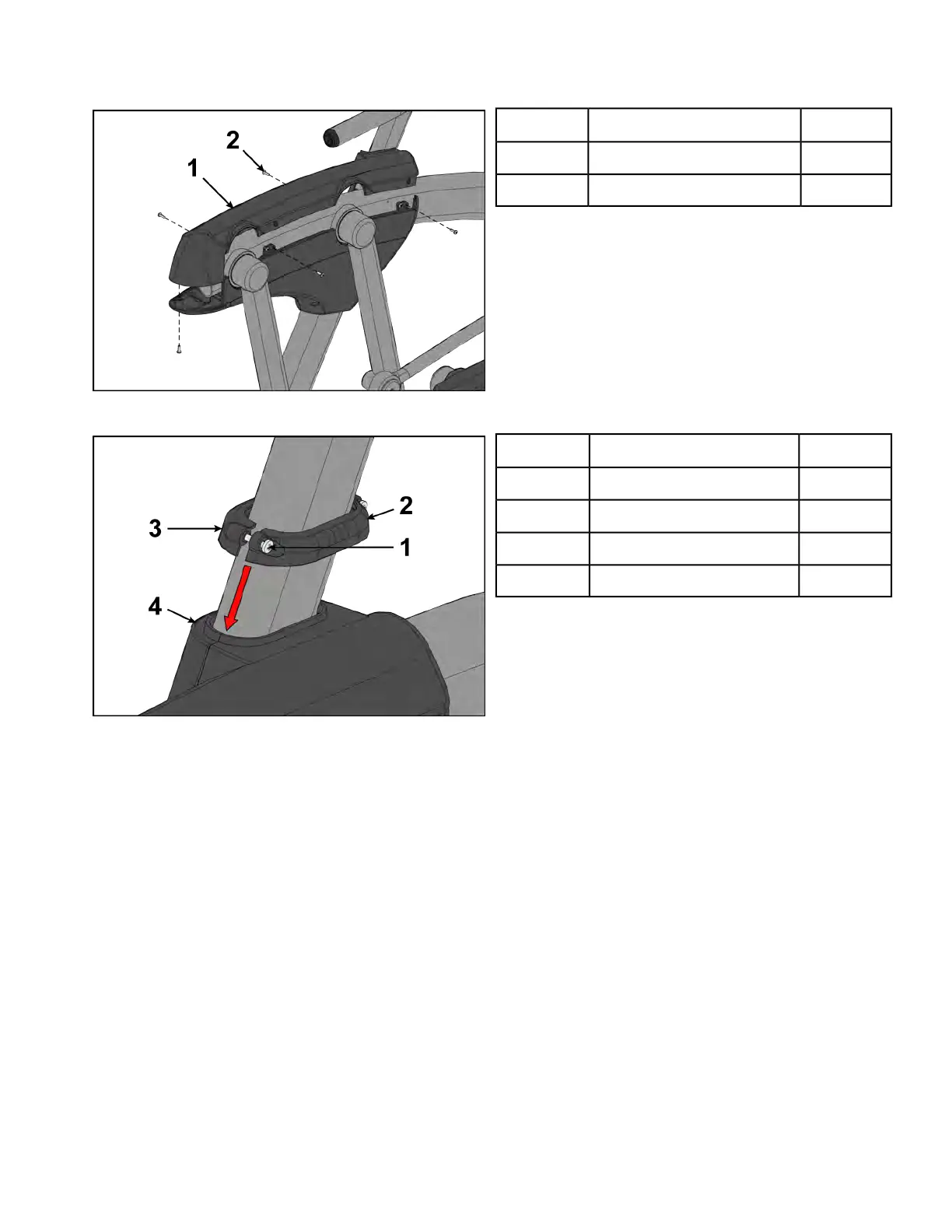

3. Install the left top rear cover with five screws using a Phillips screwdriver.
QtyDescriptionItem
1Left top rear cover1
5Screws2
4. Loosen the two screws in the left inner and outer collars using a Phillips screwdriver.
QtyDescriptionItem
2Screws1
1Inner collar2
1Outer collar3
1Cover4
5. Slide the inner and outer collars onto the left cover.
6. Insert tabs of the collars into the slots of the cover.
7. Tighten the two screws using a Phillips screwdriver.
8. Repeat steps 1 through 7 for the right side.
Complete Installation
Operate the unit at all levels to verify proper operation.
Arm Handle
Tools Required:
• 3/16” Allen wrench
• 7/32” Allen wrench (2)
• Torque wrench, with 3/16" Allen wrench
• Loctite
®
#242
Page 98 of 202
