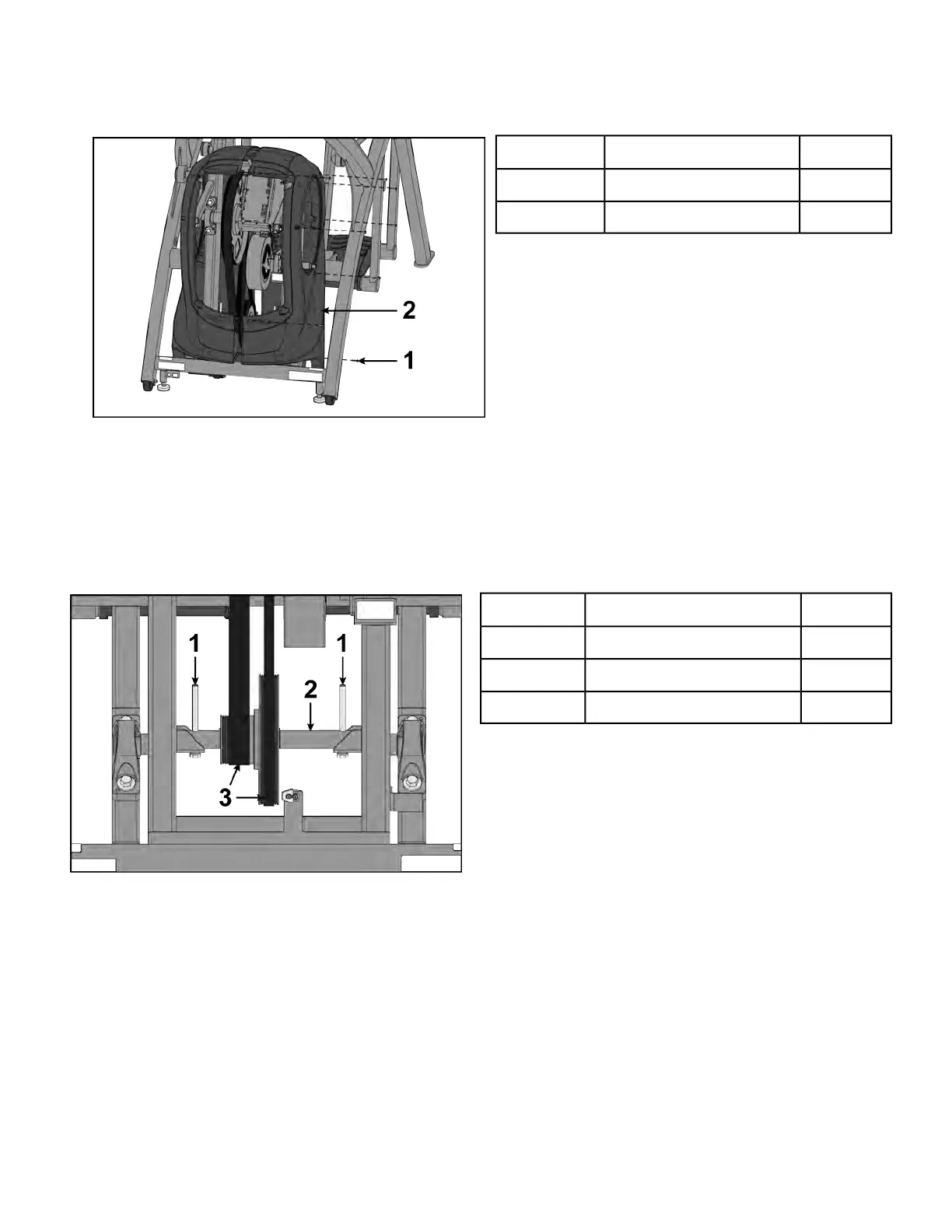

Remove shrouds
1. Remove seven screws securing left shroud in place using a long Phillips screwdriver.
Qty.DescriptionItem
7Screw1
1Left shroud2
2. Remove three screws securing right shroud in place using a long Phillips screwdriver.
3. Remove both shrouds.
Release drive belt tension
Loosen the two Hex Head Cap Screws (HHCS) using a 7/16" or 1/2” socket wrench. Alternate a few
turns to each HHCS until they bottom out (DO NOT REMOVE).
Qty.DescriptionItem
2HHCS1
1Lower pivot shaft2
2Drive belt3
Page 130 of 202
Cybex 772A, 772AT Arc Trainer Part Number
