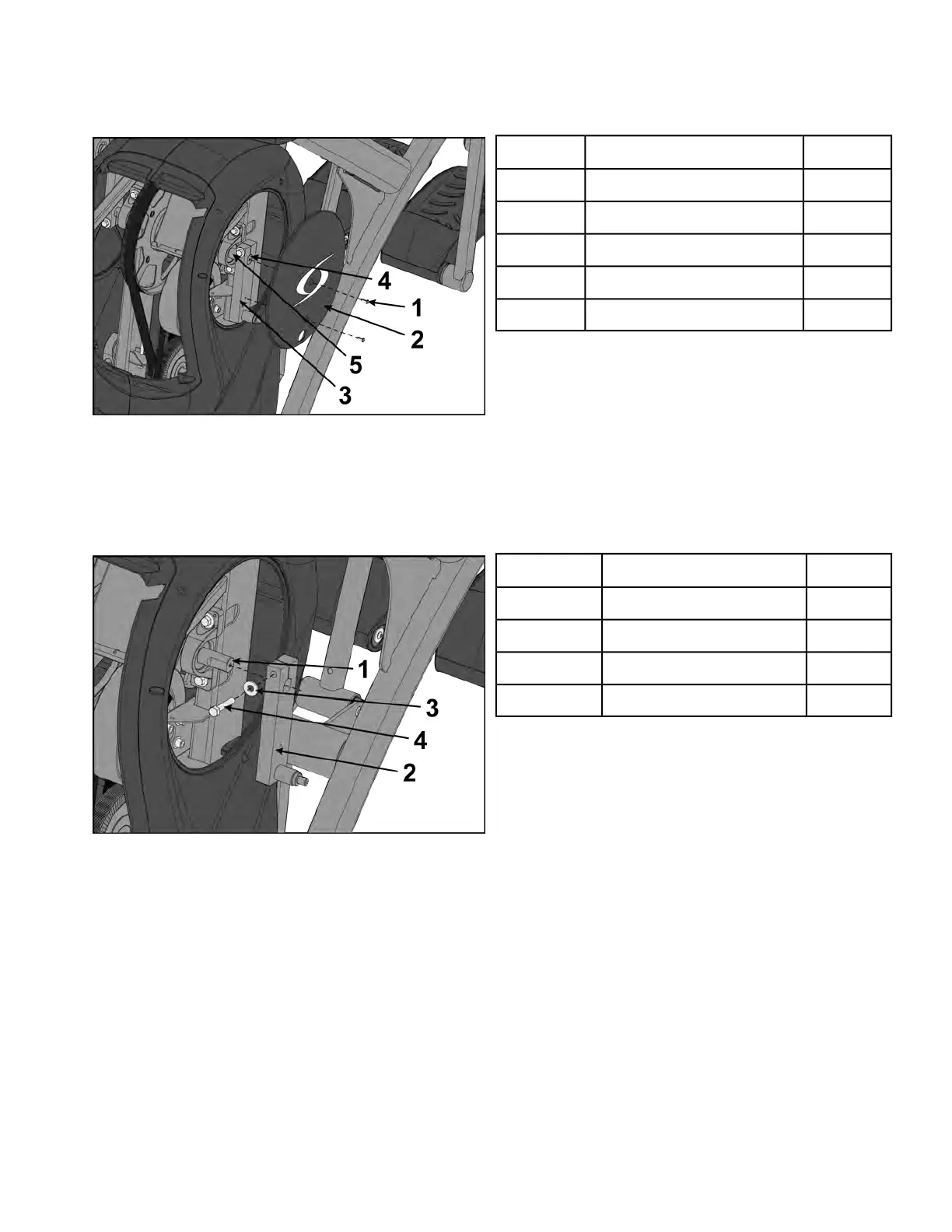

Remove crank covers
1. Remove both screws securing crank cover using a Phillips screwdriver.
Qty.DescriptionItem
2Screw1
1Crank cover2
1Crank arm3
1Flush mount4
1Crank shaft5
2. Remove crank cover.
3. Repeat steps for other crank cover.
Remove crank arms
1. Loosen but do not remove HHCS on each crank arm using a 9/16” socket wrench.
Qty.DescriptionItem
1Crank arm shaft1
2Crank arm2
2Washer3
2HHCS4
2. Remove crank arms from crank arm shaft.
