CYBEX Arc Trainer 772A - 3;16 allen Wrench; 9;16 Socket Wrench; Clean Cloth; Loctite #242

Crank Shaft Assembly
Tools Required:
• 3/16” Allen wrench
• 7/32” Allen wrench
• Phillips screwdriver
• Long Phillips screwdriver
• 9/16” Open end wrench
• 7/16” Socket wrench
• 1/2” Socket wrench
• 9/16” Socket wrench
• Torque wrench, with 9/16" Socket and 3/16" Allen wrench
• Loctite
®
#242
• Straight edge
• Clean cloth (2)
Disconnect power source
Unplug the power cord from the power outlet.
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Remove front access cover

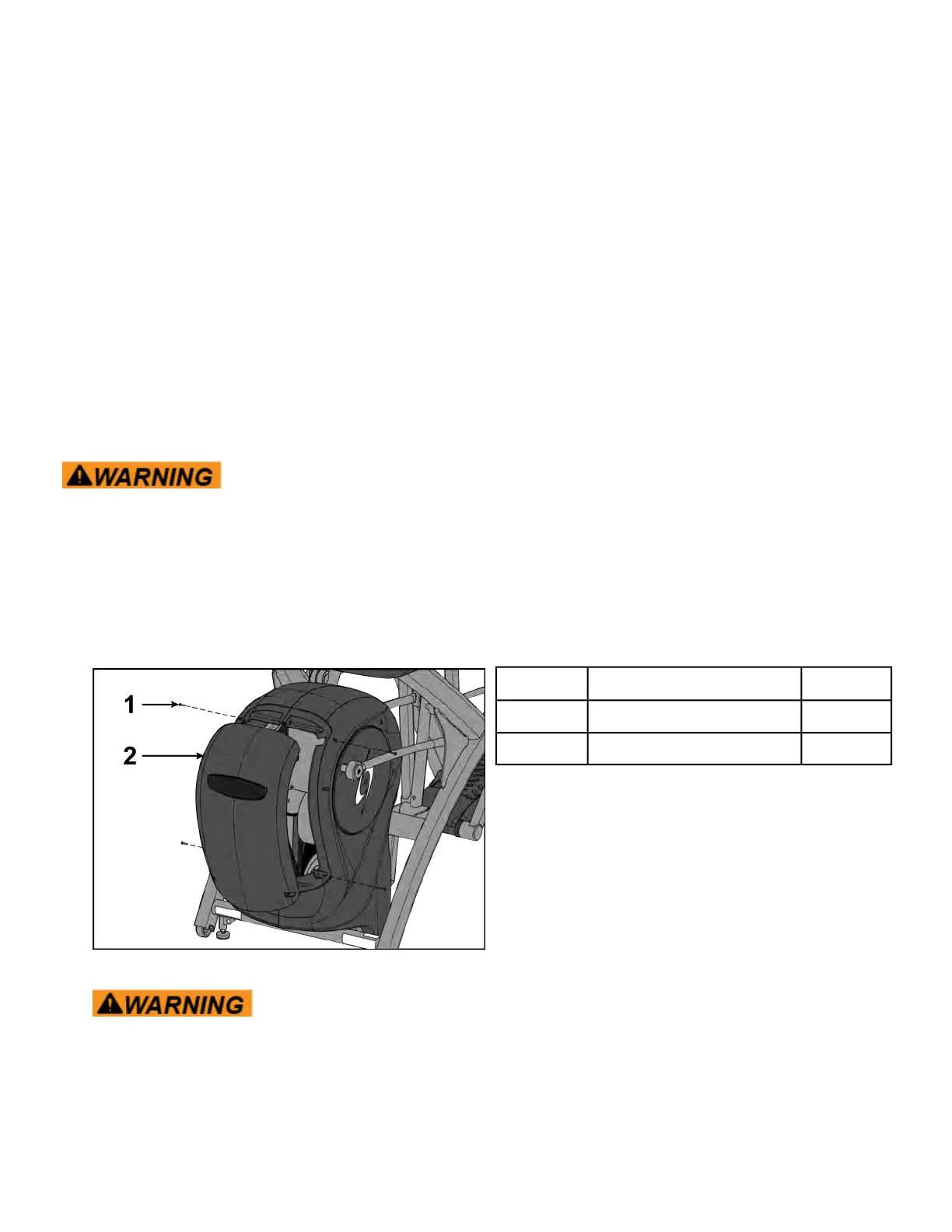

1. Remove screws securing front access cover using a Phillips screwdriver.
Qty.DescriptionItem
4Screw1
1Front access cover2
2. Remove access cover.
Burn hazard. Do not touch flywheel until cool.
Page 127 of 202
Cybex 772A, 772AT Arc Trainer Part Number
