CYBEX Arc Trainer 772A User Manual

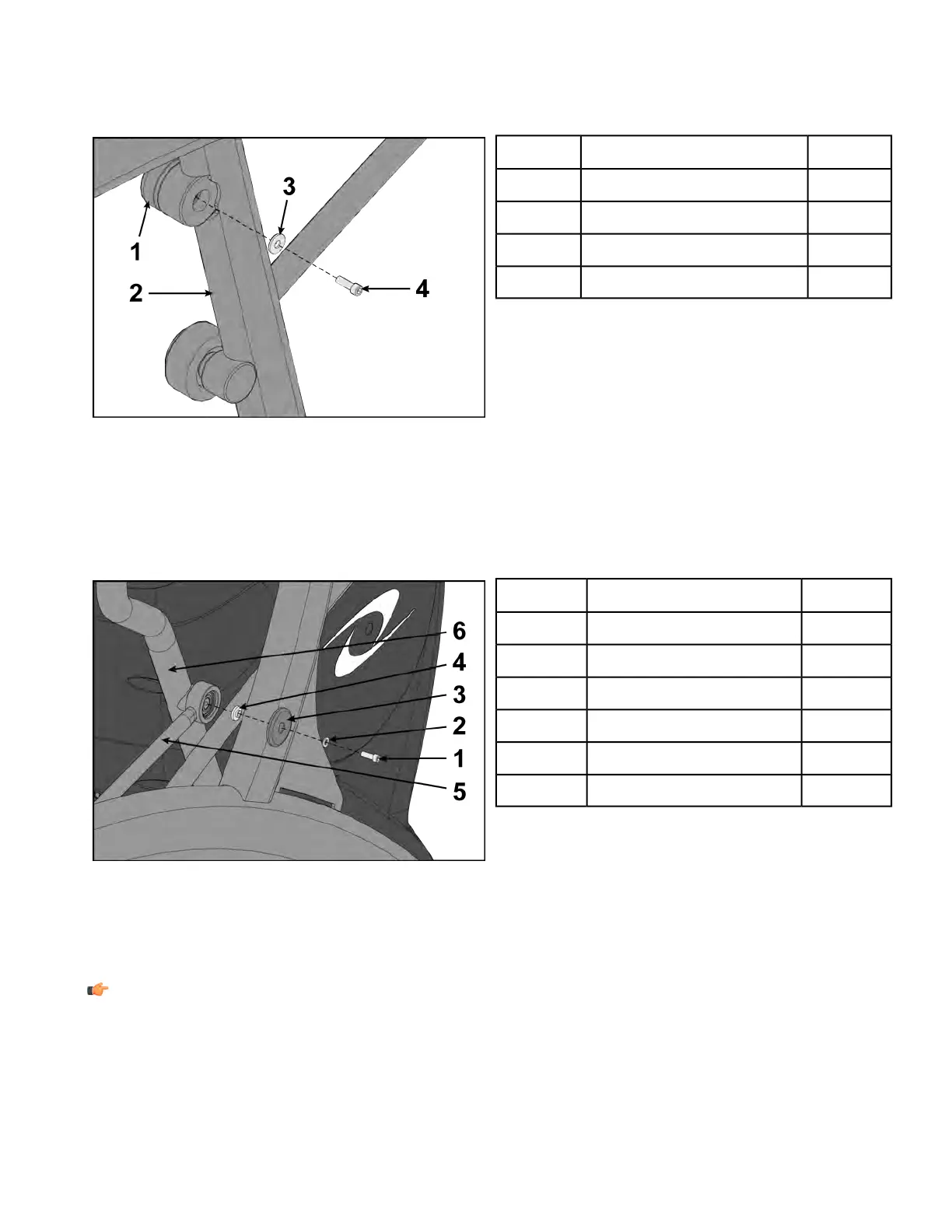

Install rear arm handle linkage
1. Install arm handle linkage to front foot plate arm.
Qty.DescriptionItem
1Arm handle linkage1
1Front foot plate arm2
1Flat washer3
1Screw4
2. Place a drop of loctite on threads of screw. Place another drop of loctite into the threads of the shaft.
3. Install screw and flat washer to arm handle linkage and front foot plate arm using a 3/16” Allen
wrench.
Install front arm handle linkage
1. Install arm handle linkage to handle.
Qty.DescriptionItem
1Screw1
1Flat washer2
1Cap3
1Spacer4
1Arm handle linkage5
1Handle6
2. Place a drop of loctite on threads of screw.
3. Place another drop of loctite into the threads of the shaft.
4. Install screw, flat washer, cap, and spacer securing the arm handle linkage using a 3/16” Allen
wrench.
NOTE: Screw must be tightened to a minimum of 90 lbs-in.
Complete Installation
Operate the unit at all levels to verify proper operation.
Page 103 of 202
