Linkage Rod
Tools Required:
• 3/16” Allen wrench
• Loctite
®
#242
• Torque wrench, with 3/16" Allen wrench
Remove linkage rod
Procedure shows right side.

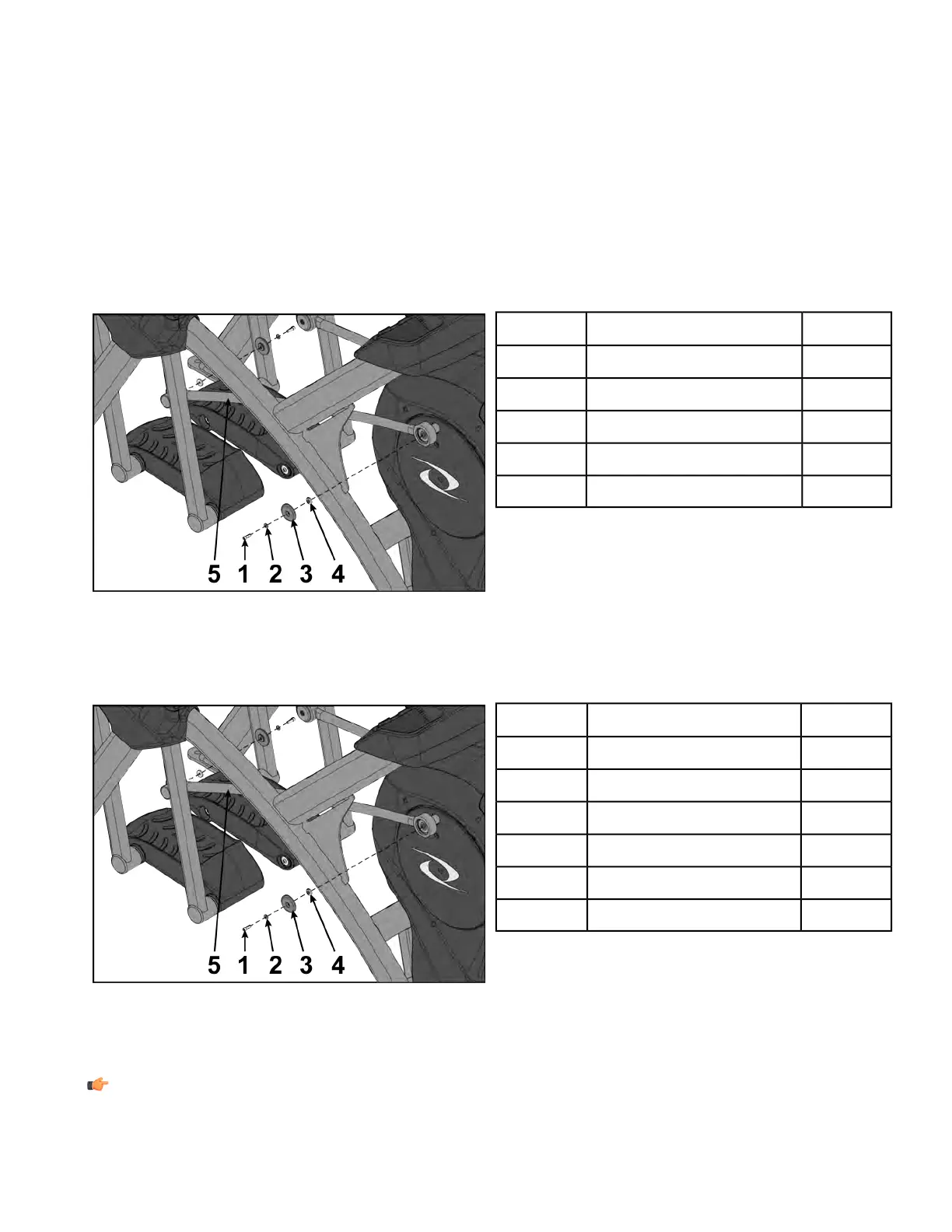

1. Remove Socket Head Cap Screw (SHCS), flat washer, cap and spacer from both ends of linkage
rod using a 3/16” Allen wrench.
Qty.DescriptionItem
2SHCS, .250-201
2Flat washer2
2Cap3
2Spacer4
1Linkage rod5
2. Remove linkage rod.
Install linkage rod
1. Place linkage in correct position. Retaining ring faces away front crank arm.
Qty.DescriptionItem
2SHCS1
2Flat washer2
2Cap3
2Spacer4
1Linkage rod5
1Loctite
®
#2426
2. Place a drop of loctite on SHCS and place another drop of loctite into shaft (where the SHCS will
be tightened into).
3. Install spacers, caps, flat washers, SHCS using a 3/16" Allen wrench.
NOTE: SHCS must be tightened to a minimum of 90 lbs-in.
