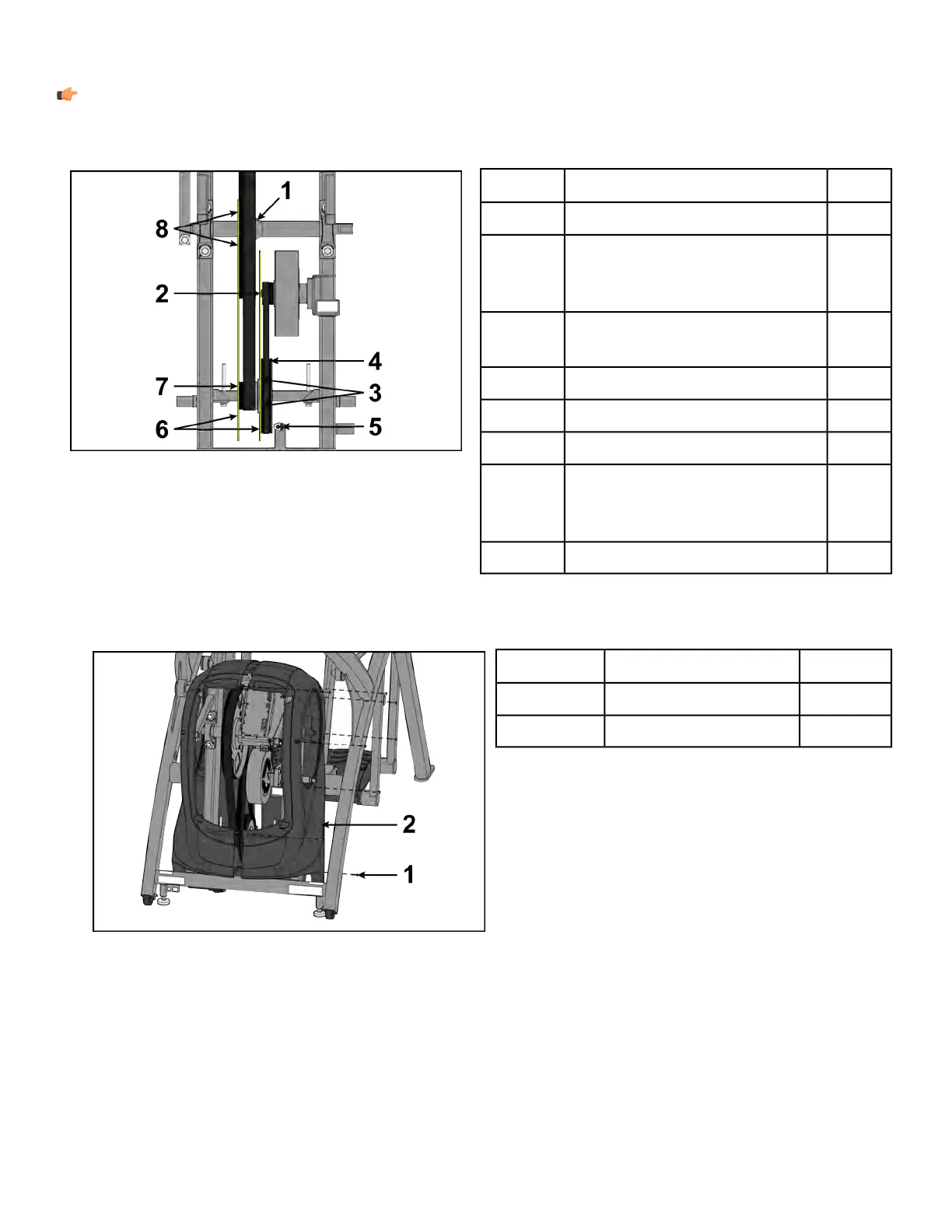

NOTE: Verify that both pulleys are aligned properly using a straight edge. The straight edge must
be no more than 1/16” from pulley edge.
Qty.DescriptionItem
1Pulley1
1
The straight edge must be no
more than 1/16” from pulley
edge
2
2
Touch straight edge here (two
places)
3
1Pulley4
1Speed sensor5
2Straight edge6
1
The straight edge must be no
more than 1/16” from pulley
edge
7
2Touch straight edge here8
Install shrouds
1. Place both shrouds in position.
Qty.DescriptionItem
7Screw1
1Left shroud2
2. Install screws securing each side cover using a long Phillips screwdriver.
Page 132 of 202
