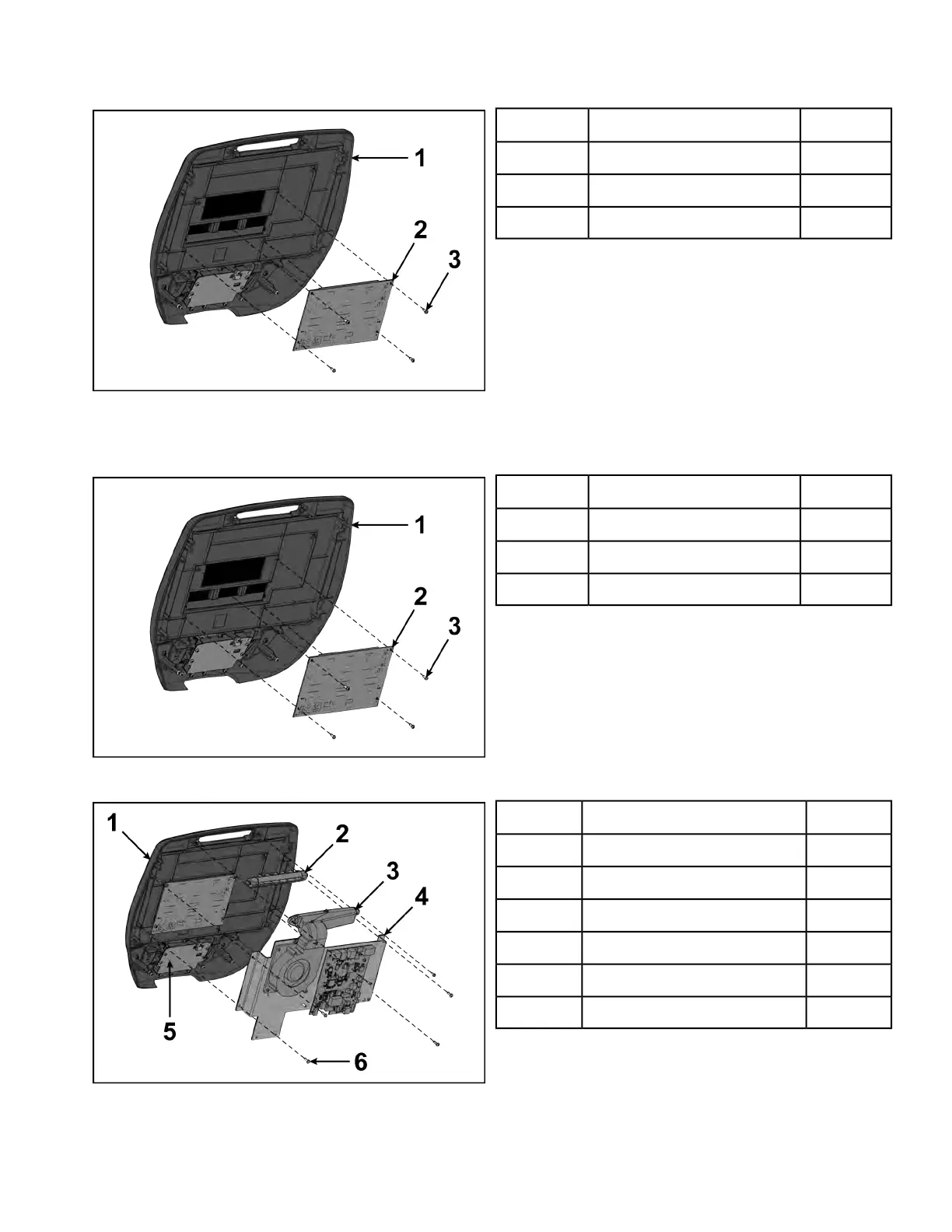

3. Remove the four screws securing the PCA display board to the bezel using a Phillips screwdriver.
Qty.DescriptionItem
1Bezel1
1PCA display board2
4Screw3
Install display board
1. Install the four screws securing the PCA display board to the bezel using a Phillips screwdriver.
Qty.DescriptionItem
1Bezel1
1PCA display board2
4Screw3
2. Install the six screws securing the mounting plate to the console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console assembly1
1Louver2
1Fan3
1Mounting plate4
1CardioTouch cable5
6Screw6
