CYBEX Arc Trainer 772A User Manual

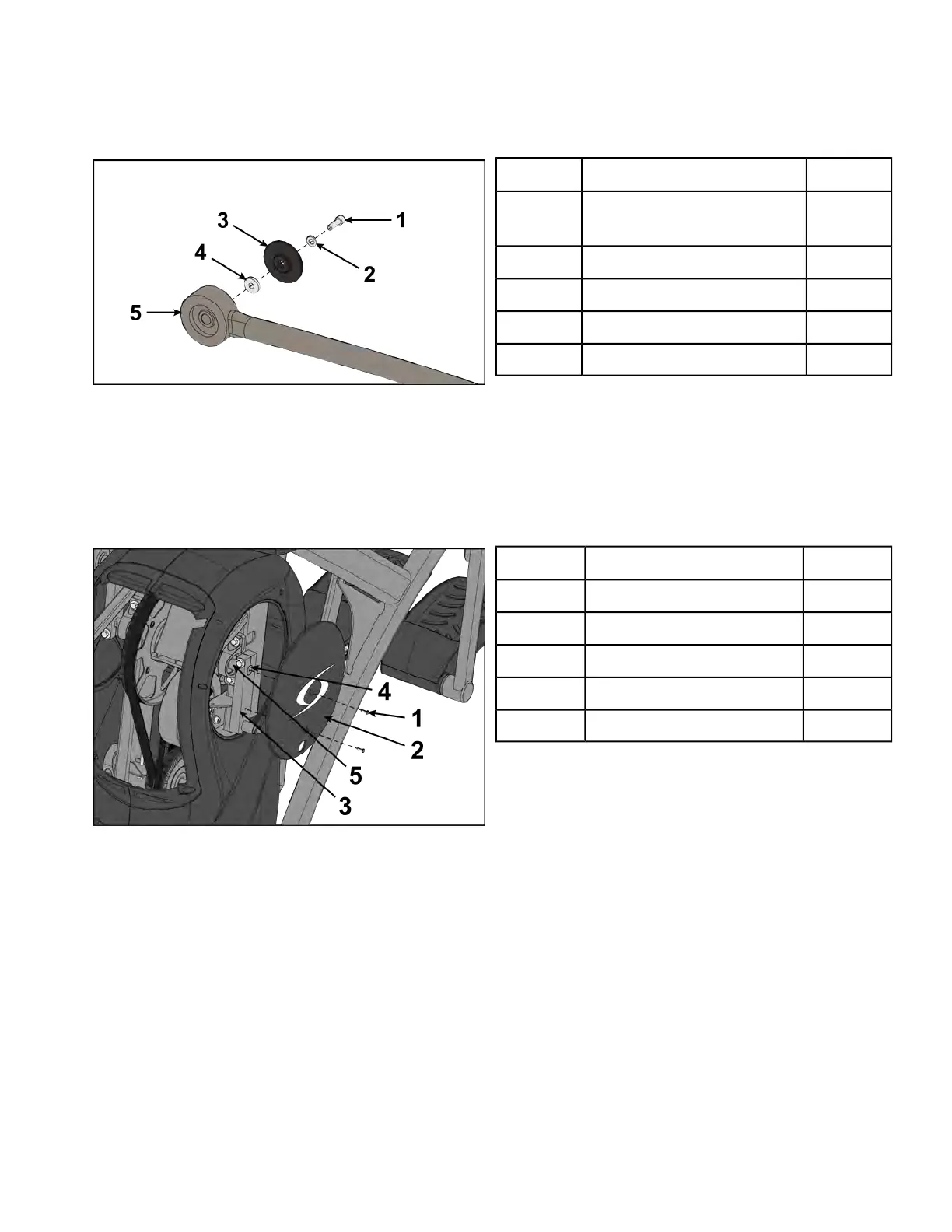

Remove linkage rods
1. Remove socket head cap screw (SHCS), flat washer, cap and spacer securing linkage rod using a
3/16” Allen wrench.
Qty.DescriptionItem
1
Screw, SHCS .250-20 x
.75
1
1Flat washer2
1Cap3
1Spacer4
1Linkage rod5
2. Lay linkage rod down on frame. Place a clean cloth in between linkage rod and frame to prevent
scratches.
3. Repeat steps 1 and 2 for other linkage rod.
Remove crank covers
1. Remove both screws securing crank cover using a Phillips screwdriver.
Qty.DescriptionItem
2Screw1
1Crank cover2
1Crank arm3
1Flush mount4
1Crank shaft5
2. Remove crank cover.
3. Repeat steps for other crank cover.
Page 124 of 202
