Disconnect console cables

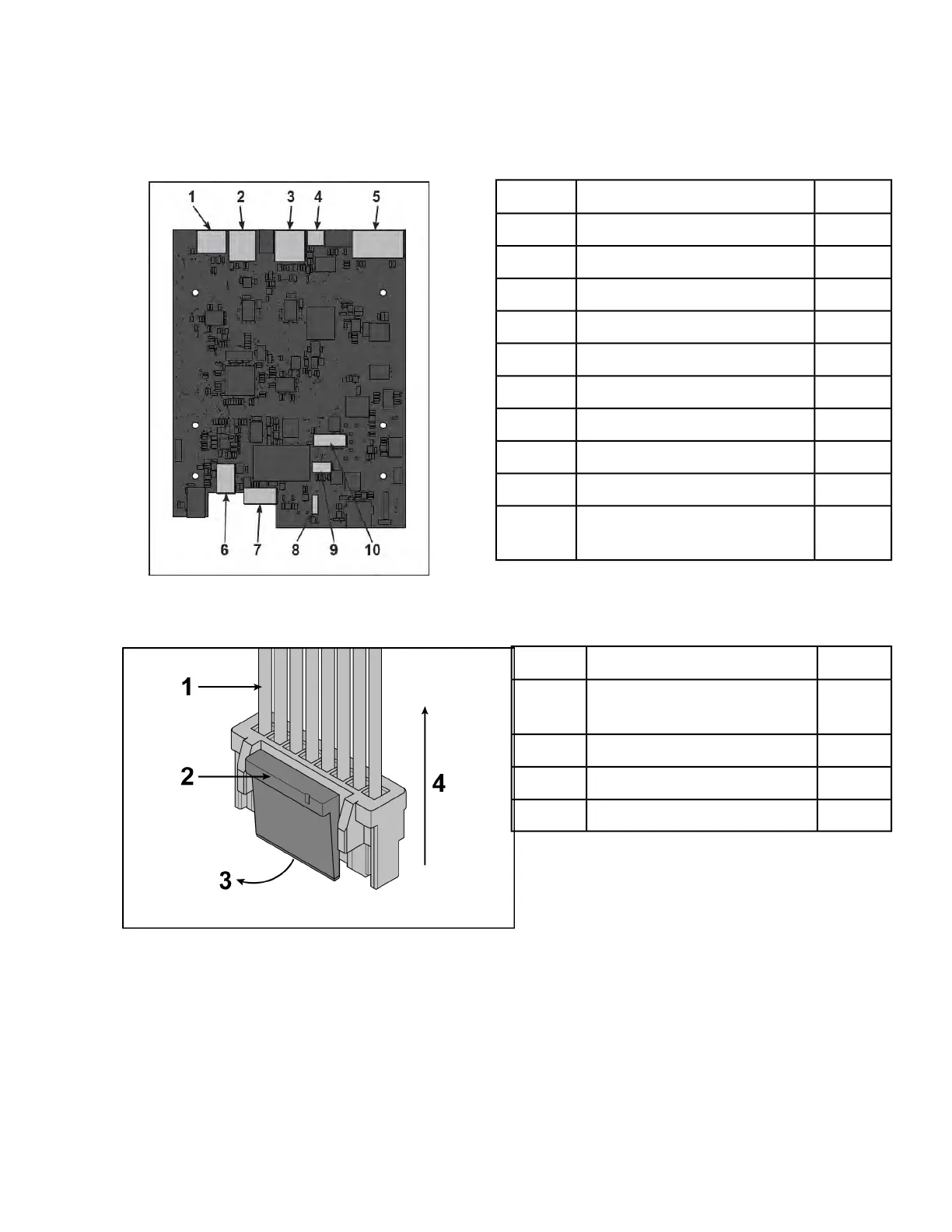

1. Disconnect console cables from MCC board.
MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Fan4
1Upper display5
1Headphone jack6
1iPod (optional)7
1Heart rate8
1Handset membrane9
1
iPod board assembly (option-
al)
10
2. Unplug cables from MCC board by un-latching connectors with the following procedure:
a) Press in the top of the cable connector.
Qty.DescriptionItem
1
DO NOT PULL CONNEC-
TOR OUT BY THE WIRES!
1
1Step a, Latch2
1Step b3
1Step c4
b) Ensure latch disengages the connector.
c) Unplug cable by holding down latch and pulling straight out from connector. Do not pull on wires,
remove by connector.
Page 160 of 202
Cybex 772A, 772AT Arc Trainer Part Number
