CYBEX Arc Trainer 772A User Manual

Qty.DescriptionItem

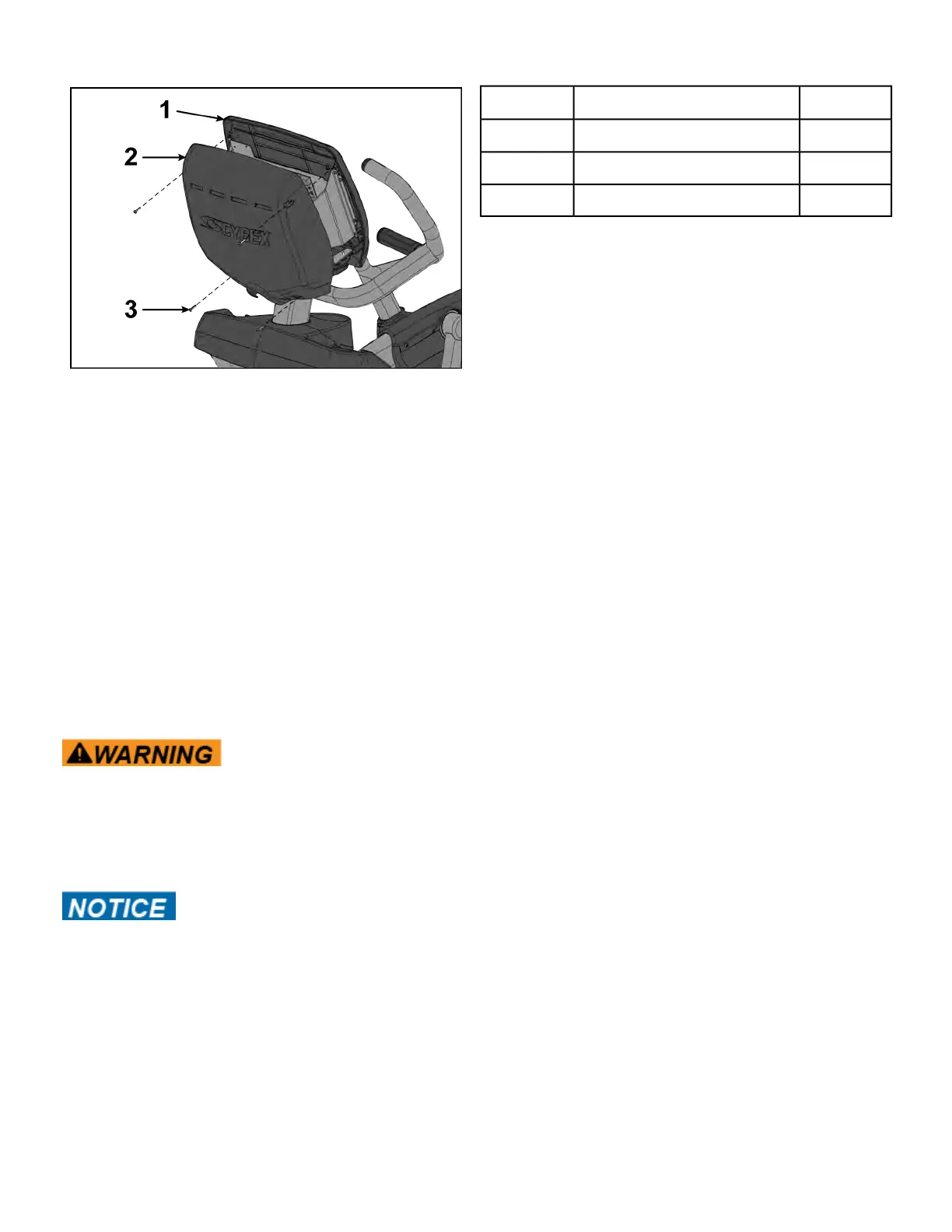

1Console assembly1
1Back cover2
4Screws3
Complete installation
1. Plug the optional power cord into the power outlet.
2. Operate the unit at all levels to verify proper operation.
E3 View Monitor and Bezel
Tools Required:
• Phillips screwdriver
• Torque screwdriver
• Clean cloth
• Rubbing alcohol
• ESD (Electrostatic Discharge) grounding strap
Disconnect Power Source
Unplug the power cord from the power outlet.
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Component damage.Wear an ESD grounding strap during this procedure.
Connect ESD grounding strap to frame bolts or unpainted metal of frame. If
ESD grounding strap is not available, touch frame bolts or unpainted metal
of frame before handling any electronics.
Remove back cover
Remove the four screws securing the back cover to the console assembly using a Phillips screwdriver.
Page 184 of 202
Cybex 772A, 772AT Arc Trainer Part Number

CYBEX Arc Trainer 772A Specifications
