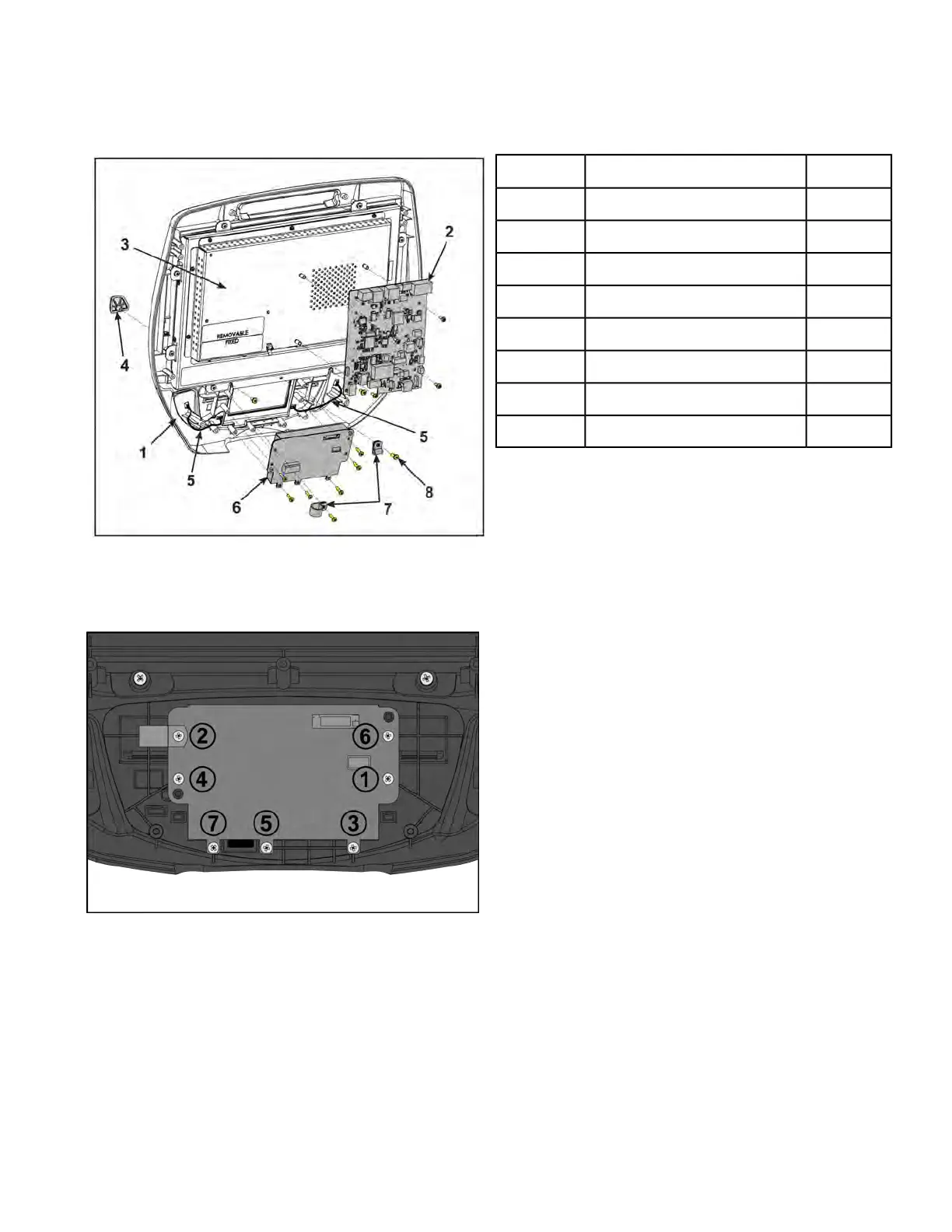

Install components on bezel
1. Install the two screws securing the book tabs to the new bezel using a Phillips screwdriver.
Qty.DescriptionItem
1Bezel1
1MCC board2
1Monitor3
2Book tab4
1Thumb control cable5
1CardioTouch board6
2Cable clamp7
14Screw8
2. Plug thumb control cables into the new bezel.
3. Install the seven screws and cable clamp to the CardioTouch board, tighten by hand.
4. Tighten the seven screws in the order shown to 4 in-lbs (0.45 Nm) using a torque screwdriver.
5. Install the four screws securing the MCC board to the monitor using a Phillips screwdriver.
6. Install the cable clamp to the monitor using a Phillips screwdriver.
Page 189 of 202
