Remove heart rate grips

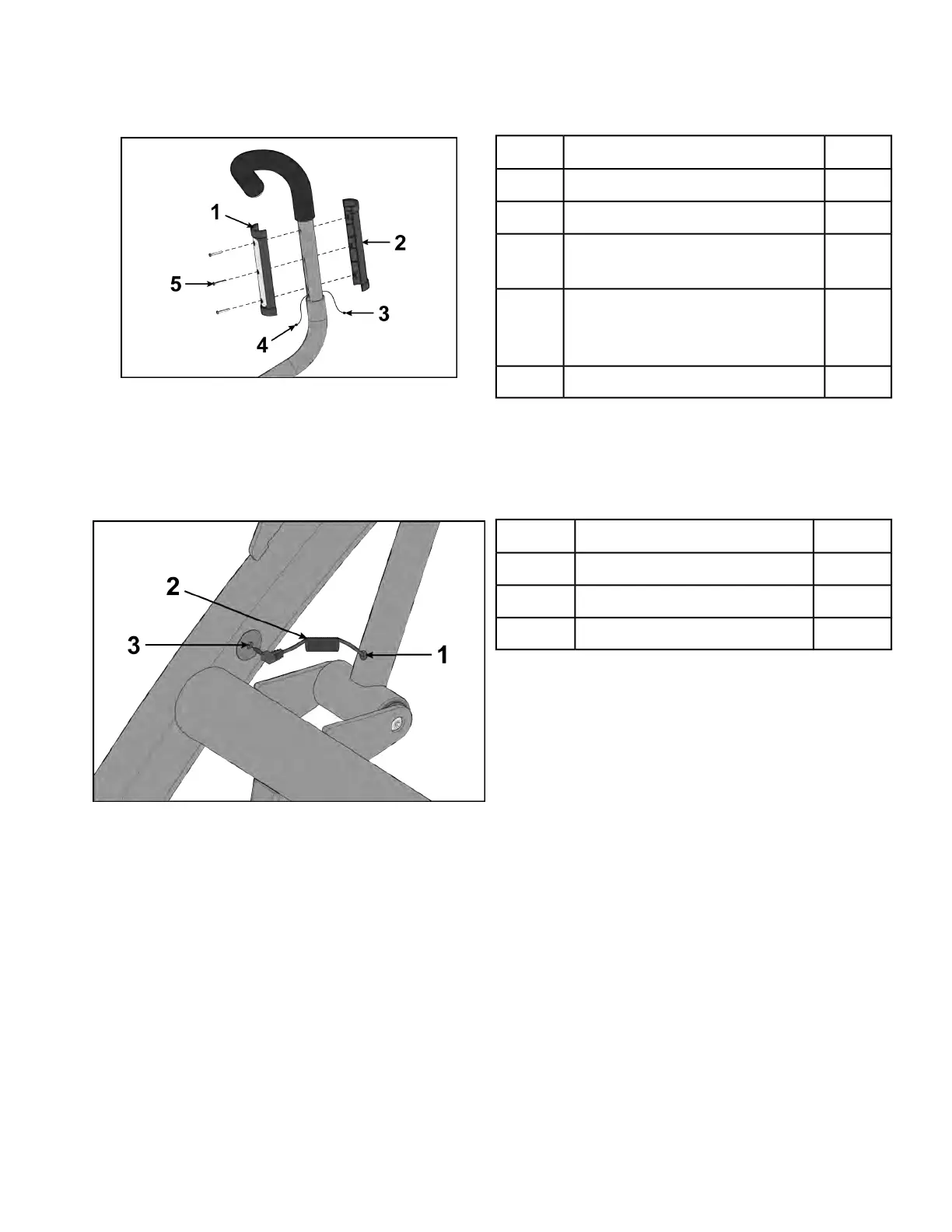

1. Remove the three screws securing back grip to front grip using a Phillips screwdriver.
Qty.DescriptionItem
1Back grip1
1Front grip2
1
White (or red) heart rate wire
must be on inside (palm side)
3
1
Black heart rate wire (shield
wire) must be on outside (finger
side)
4
3Screws5
2. Disconnect the heart rate wire from each grip.
Replace heart rate cable
1. Unplug heart rate cable jack (located near bottom end of arm).
Qty.DescriptionItem
1Remove strain relief1
1Heart rate cable2
1Unplug heart rate cable jack3
2. Cut off cable jack using side cutters.
3. Remove strain relief using strain relief pliers.
4. Tape the heart rate cable connectors of the new cable to the cut end of the old cable.
Verify connection is secure.
5. Pull the old cable through bottom of handle until end of the new cable is up to the top of handle
opening.
