Cybex FT-360S Functional Trainer Owner’s Manual
WARNING: Use extreme caution when installing the weight stack. Failure to do so could
result in injury.
NOTE: Two people will be required to perform this procedure.
4. Remove top shroud.
Using a 1/8” Allen wrench, remove 4 screws holding top shroud. See Figure 5.A.
Set screws and top shroud aside.B.
5. Install Weight Stack (refer to steps 5A - 5N and Figures 6A - 8).
Using an external snap ring pliers, slide the lower snap ring (and wave washer) down A.
about two inches from the top part of the guide rod (this will provide access to the upper
ring). Repeat this step for the other guide rod. See Figure 6.

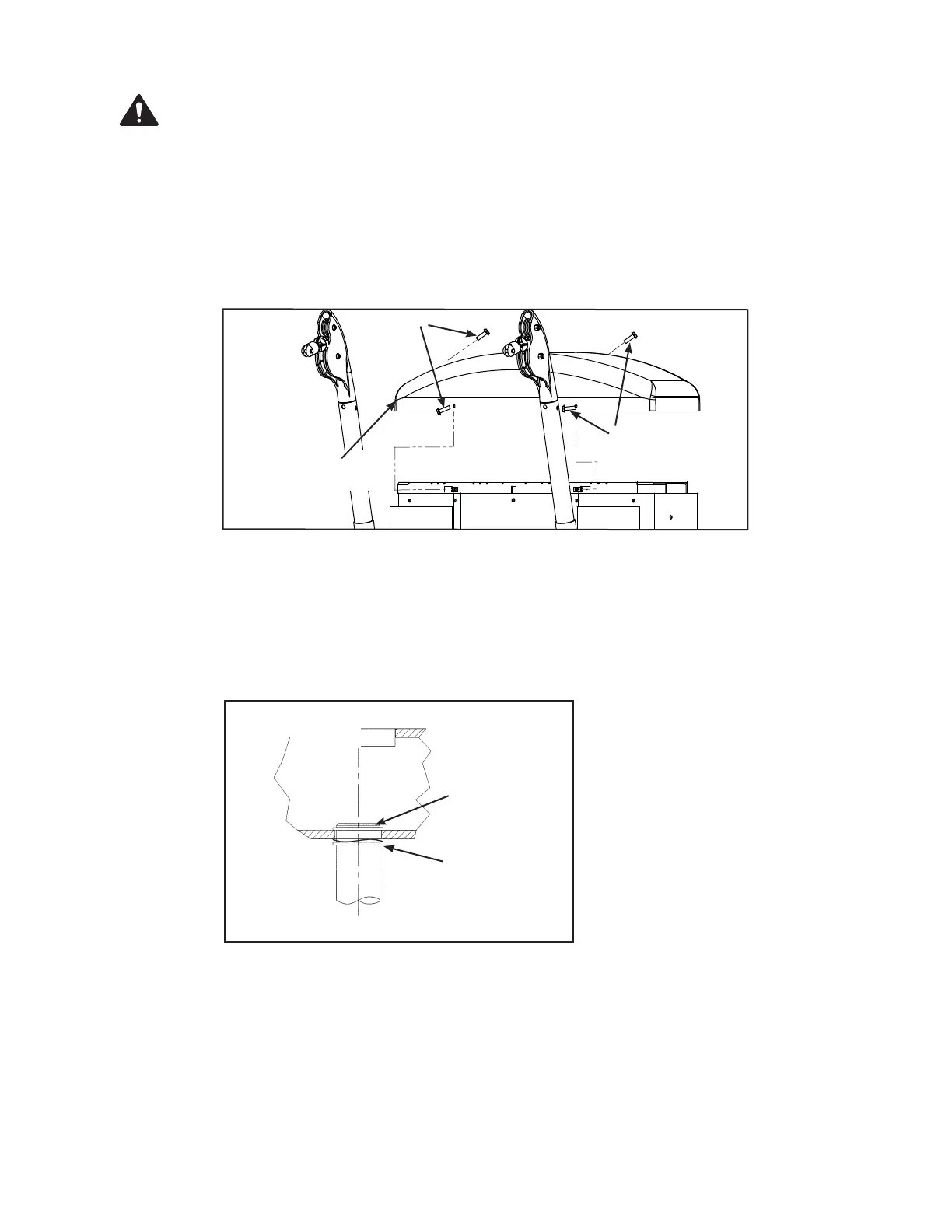

Figure 6A
Wave washer
and lower snap
ring
Upper snap
ring
Frame
Screws
Top Shroud
Screws
Figure 5
Assembly
Page 6-9
