Cybex FT-360S Functional Trainer Owner’s Manual
Raise one of the guide rods high enough to B.
expose the upper snap ring. Using an external
snap ring pliers, remove upper snap ring and
then lower guide rod.
Remove lower snap ring and wave washer.C.
Repeat Step 5B and C for other side.D.
Slightly lift and lean guide rods outward.E.
Carefully remove top weight. F.
Wipe guide rods clean over entire length. G.
Lubricate with light coating of medium weight
automotive engine oil.

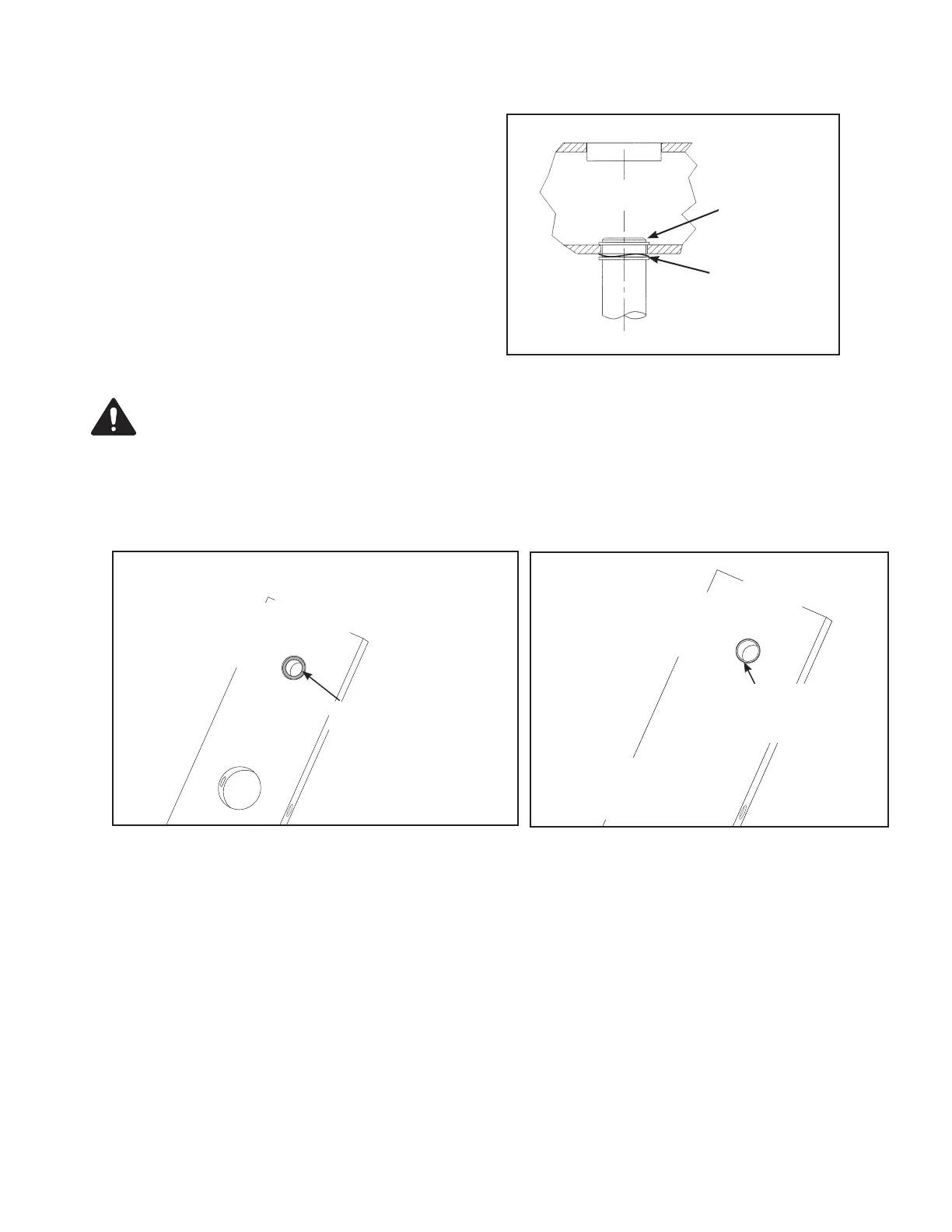

Wave washer
and lower snap
ring in lower
groove
Upper snap
ring in upper
groove
Frame
With an assistant, carefully install each weight plate one at a time. H. NOTE: When installing weight
plates, position plates so wide edges of bushing face upward and narrow edges of bushing face
downward. See Figures 7A and 7B.
Carefully slide top weight onto guide rods.I.
On one of the guide rods, place lower snap ring and wave washer at least two inches below top J.
end of guide rod. Carefully lean guide rods back inside of column into guide rod holes.
Raise guide rod up through mounting hole and install the upper snap ring into the upper grooveK.
of the guide rod. See Figure 6.
Lower guide rod and secure wave washer and lower snap ring. See Figure 6.L.
Repeat steps I through K for securing other guide rod.M.
Move pulley and belt back inside the column and re-install pulley/belt back onto top weight plate.N.
Refer to Figure 4.
Hand tighten set screws. Using a torque wrench torque to 300 - 350 in/lbs.O.
Figure 6B
WARNING: Use exteme caution as weight stack is unstable until guide rods are secure.
Failure to do so will result in injury.
Assembly
Page 6-10
NARROW
bushing edge
WRONG
WIDE bushing
edge faces
upward
CORRECT
NOTE: The narrow bushing
edge must face downward.
Figure 7A Figure 7B
