Cybex FT-360S Functional Trainer Owner’s Manual

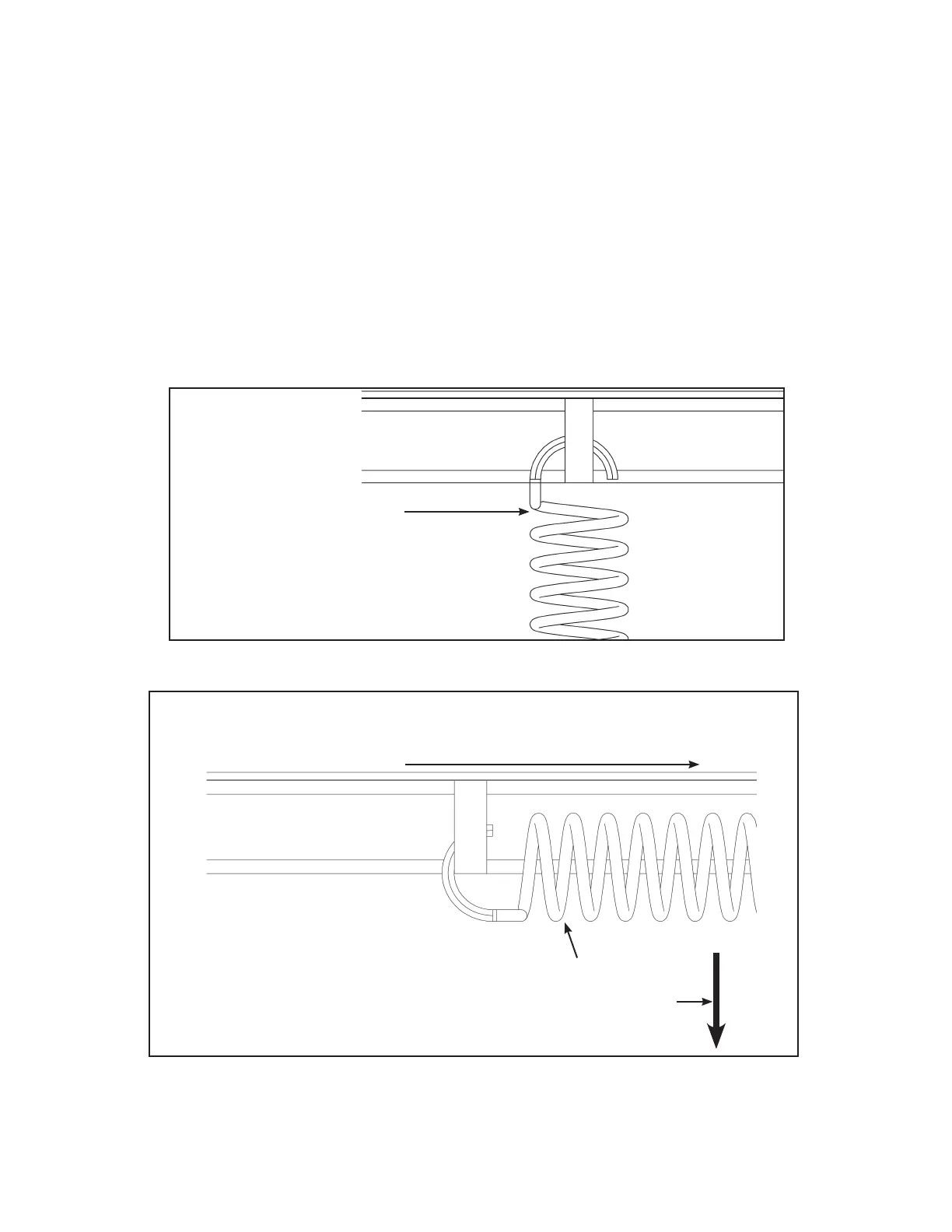

Figure 9
1. Flex (bend) spring 90 degrees
2. Slide spring inward toward connector.
NOTE: Remaining portion of spring
(not shown) will be facing downward
about 90 degrees.
Grasp spring in this area
Figure 8
6. Re-install top shroud.
Locate top shroud and 4 screws removed in step 4A-B.A.
Place top shroud in position on top of frame.B.
Hand thread screws in place.C.
Using a 1/8” Allen wrench, securely fasten screws.D.
7. Connect upper end of each spring. (refer to 7A-D, Figures 8 and 9)
Locate spring disconnected in steps 2A-2D.A.
Firmly grasp upper end of spring.B.
